SUS304 Lithium Ion Battery Production Line , Lithium Battery Cleaning Air Shower Dryer

Negotiation, email communication
SUS304 Lithium Ion Battery Production Line , Lithium Battery Cleaning Air Shower Dryer
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Voltage: AC220±10%
Weight: 1850KG
Warranty: 1 Year
High Light:

battery cleaning machine


automatic taping machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-6
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

SUS304 Lithium Ion Battery Production Line , Lithium Battery Cleaning Air Shower Dryer

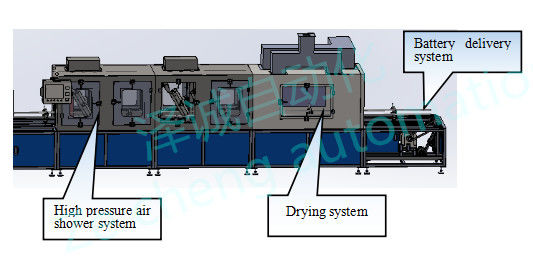

1. The system mainly includes: 2 sets of high-pressure air shower system, 1 set of drying system and 1 set of battery conveying system

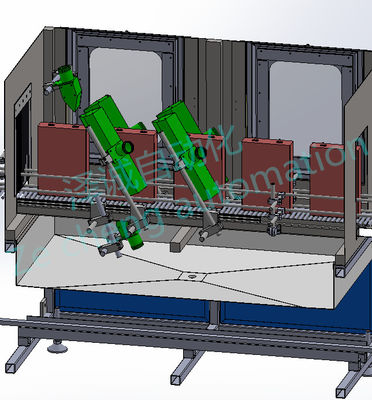

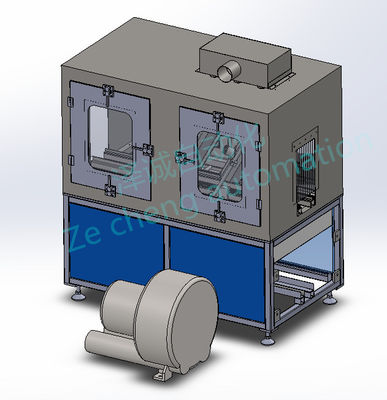

1.1 high-pressure air shower system: it mainly includes 1 set of high-pressure fan, 6 sets of air blades, 1 set of waste water recovery system and 1 set of box;

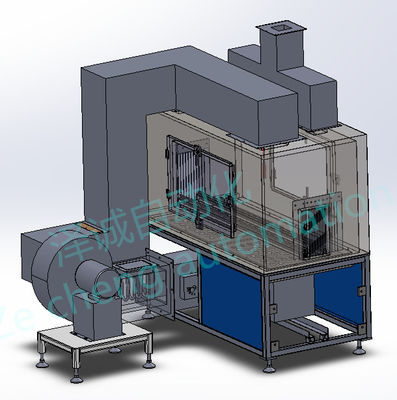

1.2 drying system: this system includes 1 set of centrifugal fan, 1 set of temperature control sensor, 1 set of heating system, 1 set of drying oven system, 1 set of air inlet pipe and 1 set of air return pipe.

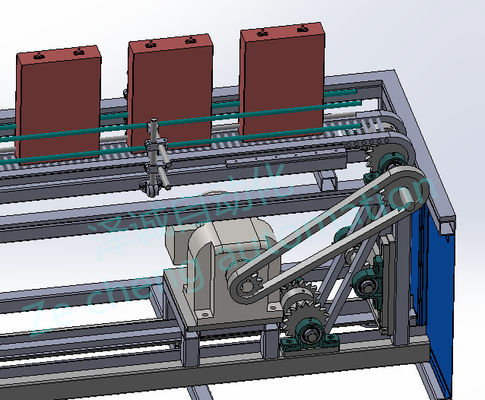

1.3 battery conveying system: it mainly includes 1 conveyor belt, 4 sets of stainless steel guardrail, 12 guardrail positioning blocks and 1 set of conveying motor.


2. Technical requirements:


2.1 high pressure air shower box body, air knife and waste water recovery tank material requirements for SUS304 stainless steel;


2.2 the desiccant adopts SUS304 stainless steel with 50mm insulation cotton;


2.3 the heating pipe of the drying system is made of SUS304 stainless steel. The pipes of the air supply and air return system are all required to be SUS304 stainless steel.


2.4 the battery transmission chain adopts SUS304 stainless steel;


2.5 transmission speed 0-1000mm/min adjustable;


2.6 stainless steel guardrail adopts mirror stainless steel tube of SUS304, and the material of guardrail positioning seat is SUS304 stainless steel;


27 after drying, the battery surface, battery pole column and conductive platform must be completely dry and no spots are allowed.


2.8 after the equipment arrives at the factory, the high-pressure air shower system can be changed into the water spray system according to the actual cleaning and drying conditions and the requirements of the customer;


3. Configuration list


The serial number The name of the The number of brand
1 Ac motor 1 Taiwan gen
2 Conveyor chain 1 Non-standard processing
3 Locate the column 18 Non-standard processing
4 Guardrail seat 18 Non-standard processing
5 guardrail 4 Non-standard processing
6 Centrifugal fan 1 Hank
7 The wind knife 12 Non-standard processing
8 Waste water recovery tank 2 Non-standard processing
9 Temperature control sensor 1 OMEGA
10 Heating tube 4 Non-standard processing
11 Drying oven 1 Non-standard processing
12 High pressure air shower cabinet 2 Non-standard processing
13 High pressure air blower 1 Hank



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
