1, Equipment introduction.
1.1,The device is suitable for short-circuit test of bluetooth flexible packaging battery, liquid injection, standing, sealing and other production processes.
1.2,The machine shall be installed in the drying room for production operation, manual feeding and manual feeding.
1.3,3. Main functions of this machine:
1.3.1) manual scanning and feeding
1.3.2 short circuit test before liquid injection
1.3.3) computer management of product data
1.3.4) the battery is placed in vacuum after injection
1.3.5) automatic vacuum sealing
1.3.6) automatic packaging
1.3.7) Under the artificial materialx
1,4. Adapt to product specifications
| Model | W (mm) | L (mm) | H |
| ZEAA07A | 12-40 | 15-60 | 4-15 |

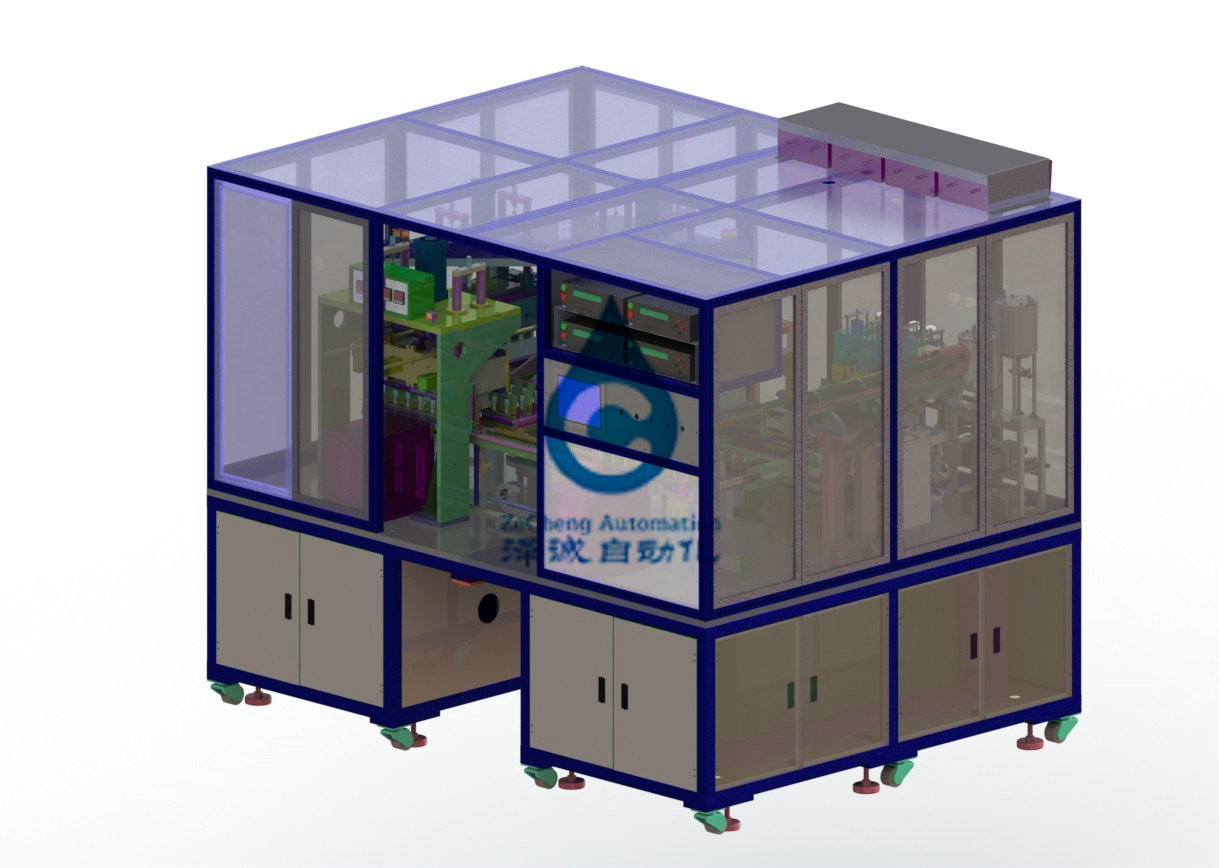

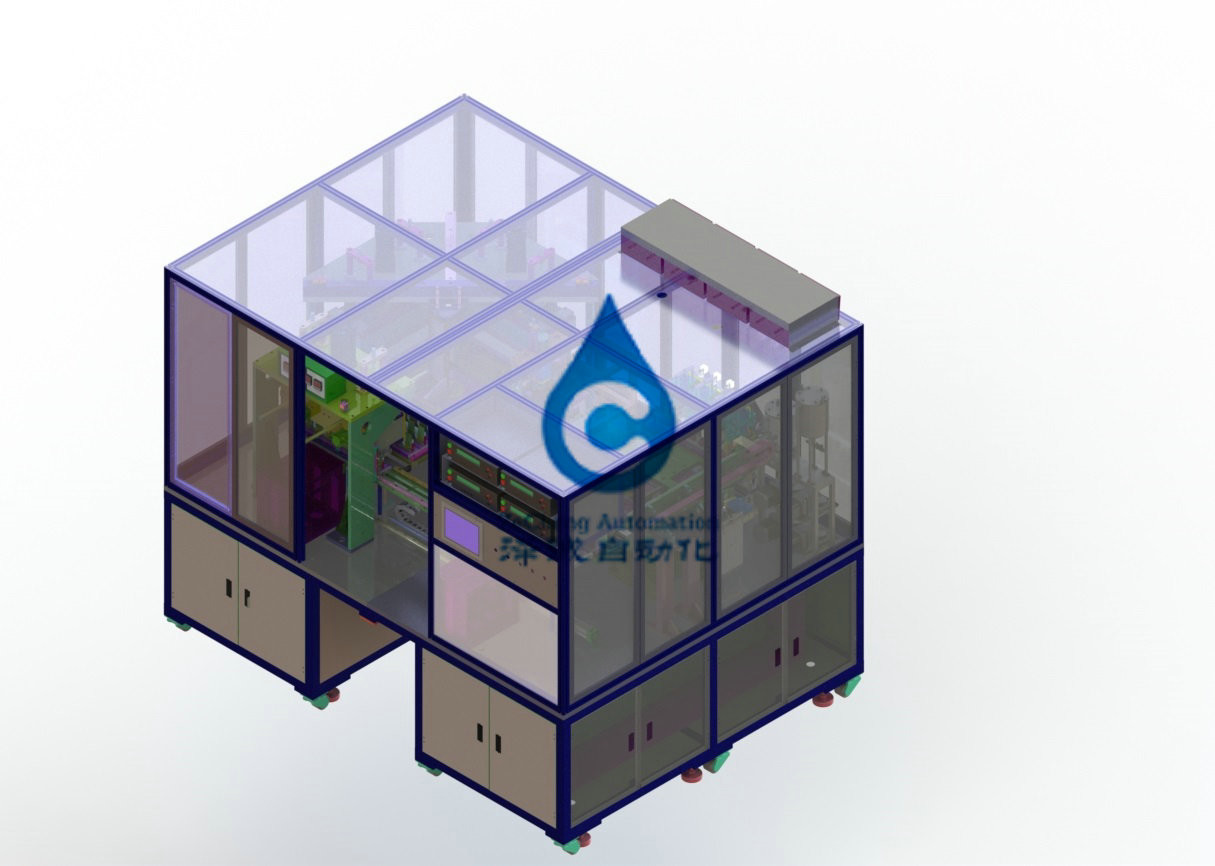

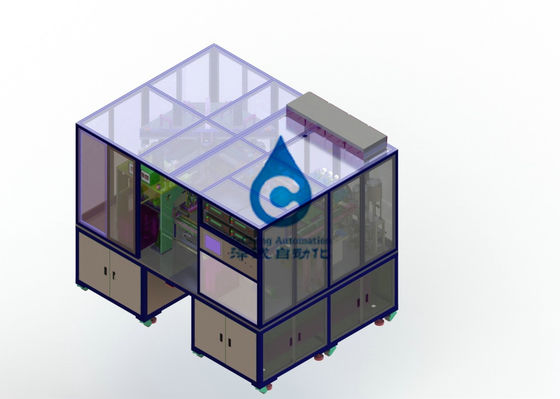

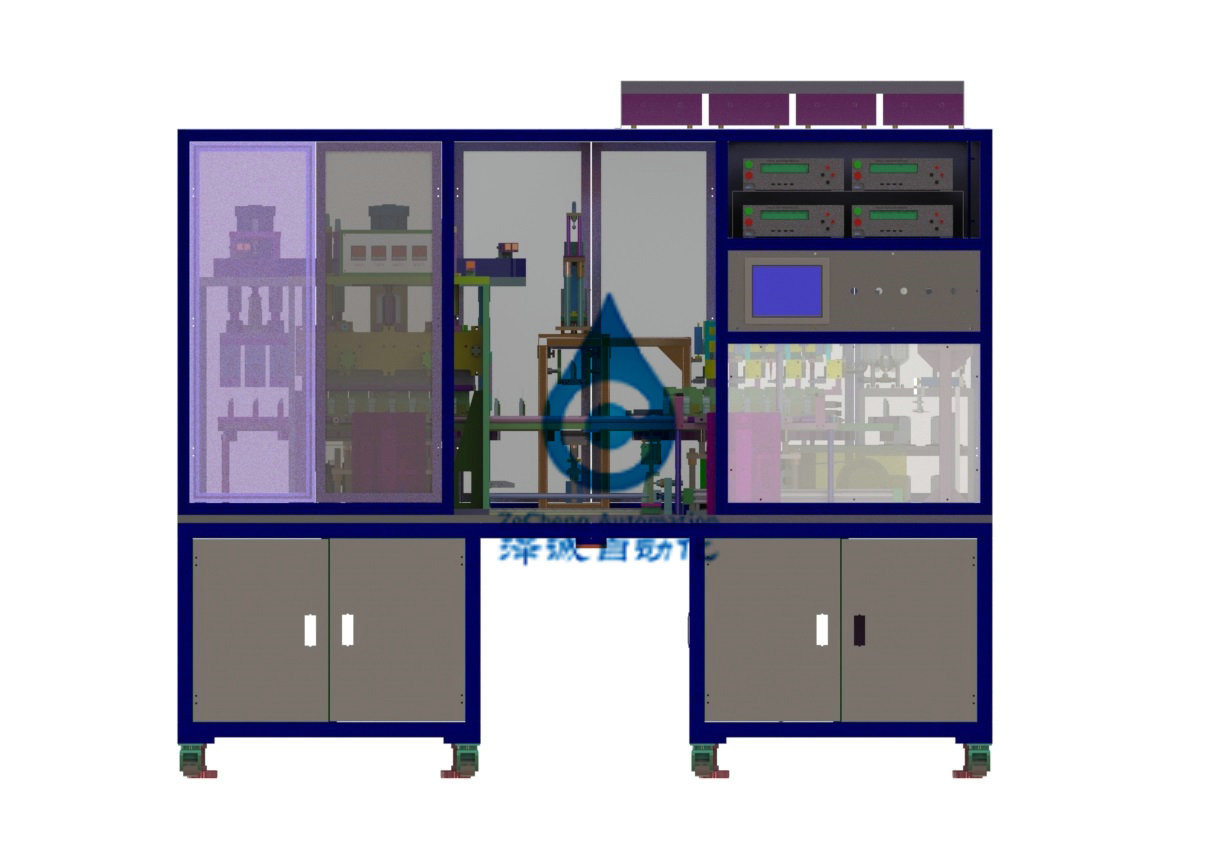

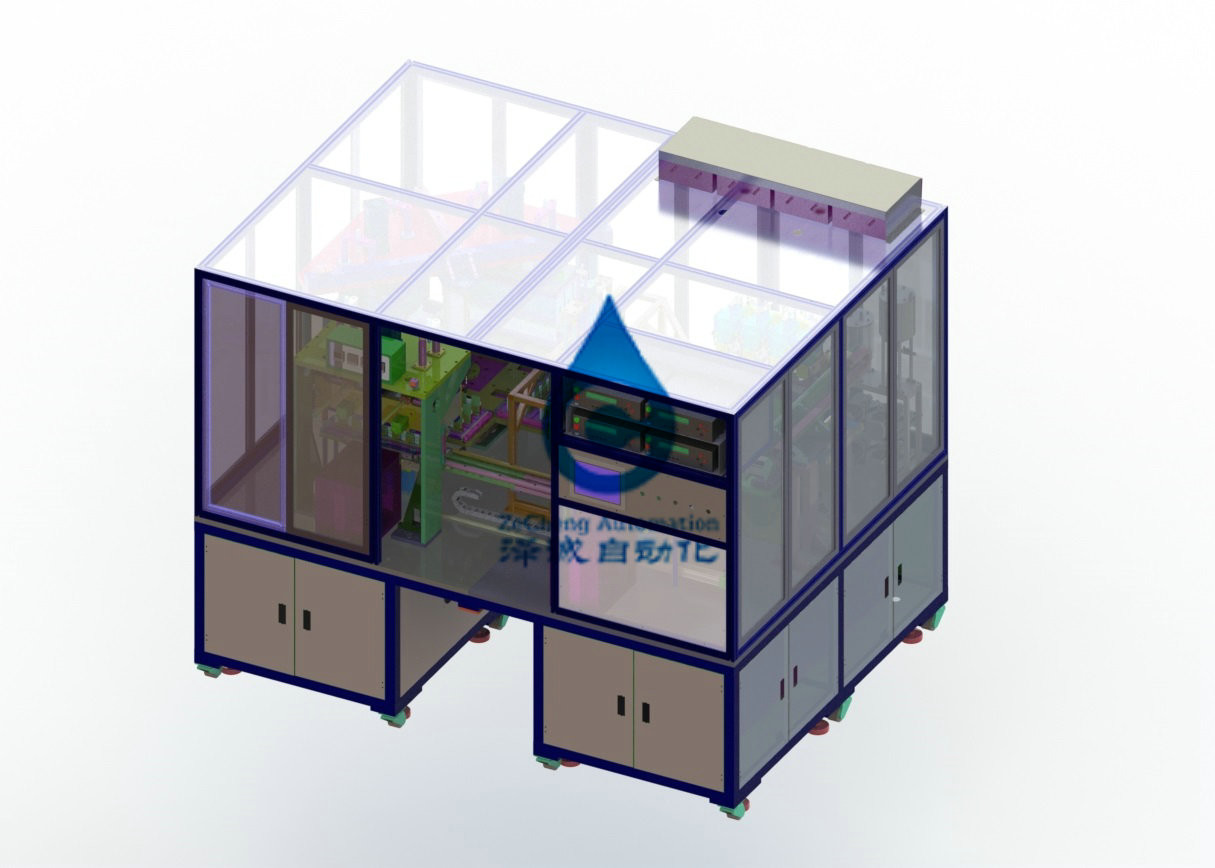

2, Equipment reference pictures
3,Main parameters of the equipment
1.Appearance reference size: approx. 2600(L)*2000(W)*2250mm(H), weight: approx. 1000KG.
2. Third-party equipment to be configured:Liquid injection pump: 4 sets (electric liquid injection pump);Injection accuracy ±0.25%.The maximum flow rate is 10mL/s.Short circuit tester: four USES Yangtze YD9820A insulation resistance tester, resistance measurement range: 1 x 1012 x 103 Ω - 1 Ω, resistance measurement accuracy: < 10 g Ω plus or minus 3% plus or minus 3 words, or 10 g Ω plus or minus 8% plus or minus 3 words.
3.The data of pre-injection short-circuit test and post-injection short-circuit test can be compared on the configured computer.
4. Equipment capacity: about 15PPM, depending on the process flow, when the total standing time of the battery is 3 minutes.
5.Vacuum setting: #1 cavity: -60kpa, #2 cavity: -80kpa.
6.Vacuum package setting: package vacuum: -80~85KPa, package temperature: maximum 250 C, package time: no more than 6 seconds, head width: 6~8MM.The unsealed area of the battery packaging edge from the opening shall not exceed 5MM.
8.The battery man moves the charging box
9. Equipment operation indicators:Product excellence rate: 99.5%;Equipment utilization: 95%
10. The equipment is equipped with transparent outer cover and plexiglass door.
11. The equipment is equipped with emergency stop button, and there are obvious warning signs in the area with security threats
4,Site environmental requirements
1. Ambient temperature: shall be determined by the plant environment of party a;
2. Relative humidity: dry air shall be provided by party a;
3. Power supply: single-phase 220V, 50HZ, voltage fluctuation range: +10% ~ -- 10%;
4. Compressed air: after being dried, filtered and stabilized, the outlet air pressure is greater than 5.0kg/cm2;
5. Vacuum source: vacuum pump or pipeline vacuum, the vacuum degree is greater than -98kpa;Party a shall ensure that the air on the site is unimpeded;
