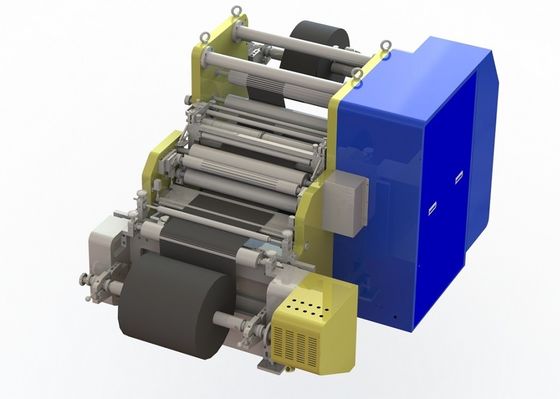

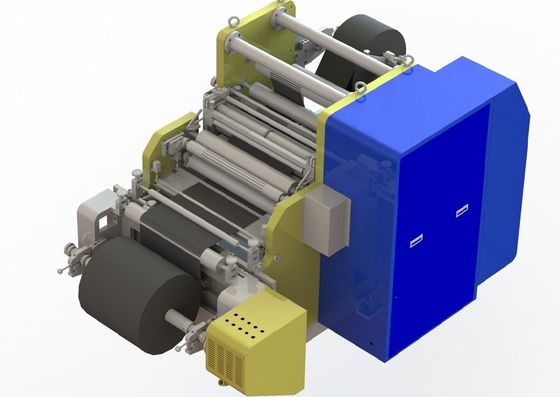

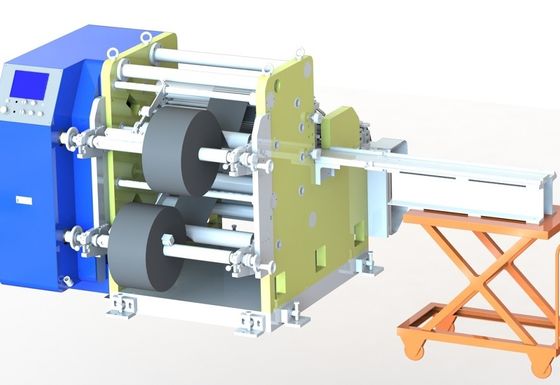

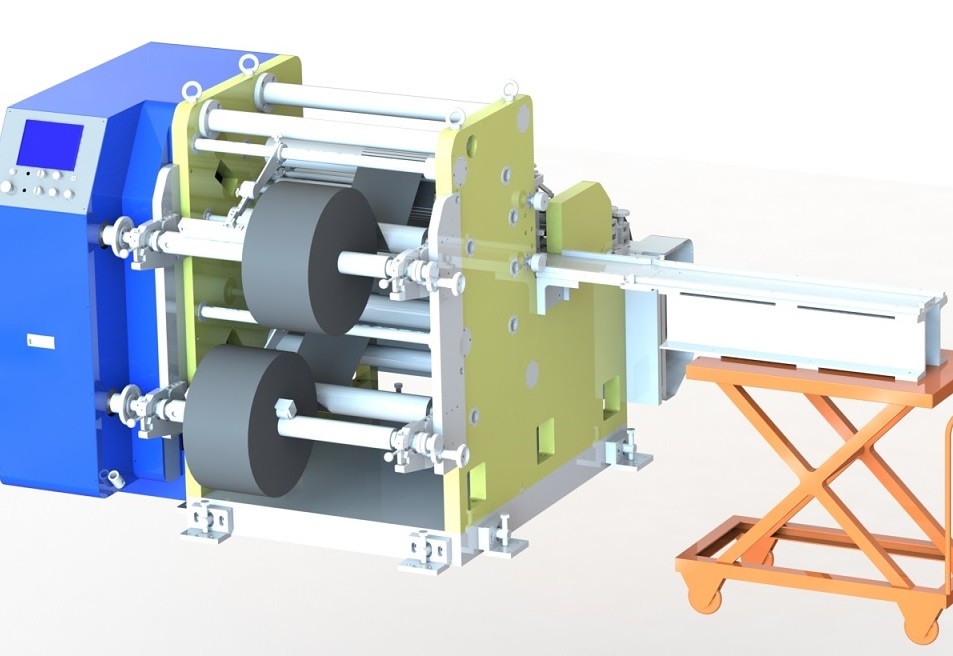

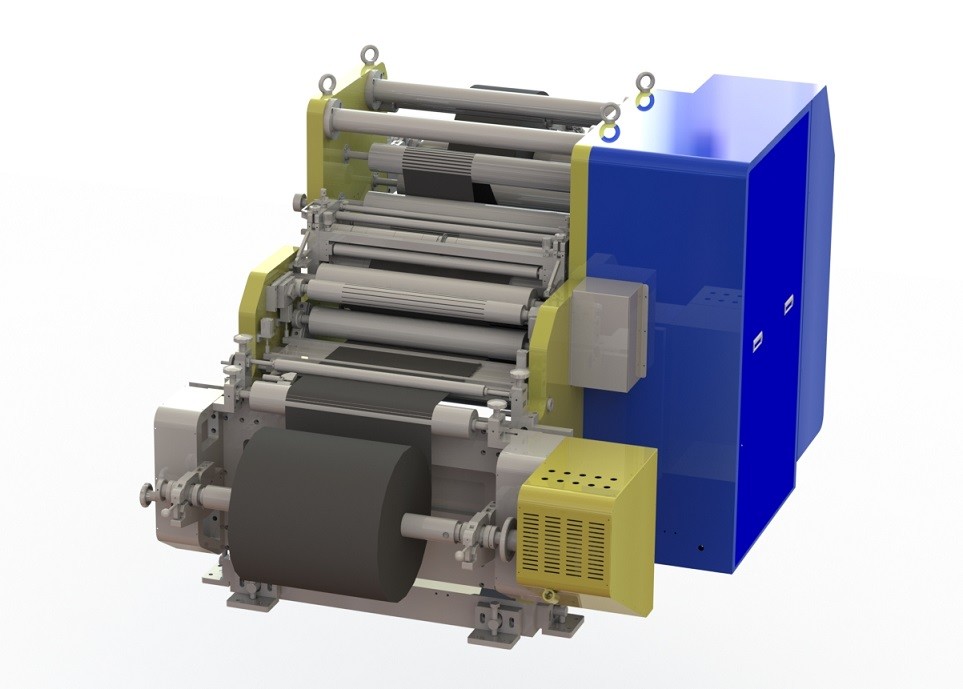

3 Phase Lithium Battery Production Line Plate Automatic Slitting Machine



1. Device functions:

1.1,The slitting machine single machine equipment is mainly used in metallurgy, electronics, electric power, electrical and electrical connectors, electronic components, power supply, solar photovoltaic, automotive, shipbuilding, toys, hardware, materials, battery pole piece diaphragm, transformer core, amorphous strips of insulating diaphragm, ferroalloy core reactor, impedance device, electric welding machine core winding ,stainless steel products, metal products, crafts, paper.Packaging materials and other processing industry.Product features: can cut ultra-thin strip, narrow strip, no burr, high precision metal strip.The product quality has the domestic advanced level.Applicable to steel belt. Copper. Aluminum belt. Reagent and nonmetallic material ultra-precision slitting equipment for processing the most thin 0.02 mm and 1 mm narrow such as nickel, copper, aluminum, titanium, stainless steel, amorphous ribbon and other kinds of metal belt, the fastest production speed of up to 200 m/min and special material. With stability is good. Adjust the degree of large, high precision. Fine workmanship. Configuration. The price is reasonable, etc.





1.2. Main functions of the equipment

1) the continuous slicing machine adopts the cantilever structure tool rest, which is convenient to combine and change the tool. It can also provide the upper blade tool or double suspended knife structure, blade type tool.





2) the winding adopts the independent tension of the air expansion axis with slip difference, uniform tension in each section, and the up-and-down dislocation winding after the pole slices are divided into strips;And automatic tension control, rewinding material belt neat, all the operations all adopt the man-machine interface input control, and has the function of belt connection, shift, fast walking, brush, etc., is an intelligent continuous splitter.

3) the slitter cutter shaft is driven by servo motor, the upper and lower slitter are driven by servo motor respectively, the difference is slitter, the slitter pole sheet has little deformation and no ripple.

4) the use of high-precision rolling cutter for continuous slicing, suitable for aluminum foil, copper foil as the substrate for continuous gap coated pole, high cutting precision, cutting edge without burr, no wrinkles;

5) high cutting speed, mechanical design speed of 40m/min;

6) with PLC control constant tension winding;

7) air expansion shaft is used for unwinding, which can be rotated to take materials and forklift truck to take materials;

8) the tool frame adopts pushed-out movable tool frame and is equipped with a rack car, making it easy to change knives;

9) the tool has high precision, realizes no gap shearing, can be used repeatedly, greatly saves the cost;

10) constant tension control during unwinding, slicing and up-down winding;




11) the speed is controlled by servo motor system with stepless speed change, and the synchronization of all parts is realized;

12) roll up with ruler, convenient for material.

13) CCD detection system can be added to the cutting machine to mark the defective pole pieces (need to be specified in the contract)

2. Incoming materials and product specifications suitable for the equipment



NO. content specification
1 roll diameter: max Φ500㎜
2 Unwinding weight: Max450kg
3 olling drum diameter: Φ3” (Φ76.2mm)
4 The foil width Max650mm
5 Foil thickness Copper foil:7-20μm;aluminum foil:10-25μm;
6 Coil width: maximum width of slitting material coating:max650mm
7 Split pole thickness: 50~300μm
8 Winding diameter: max Φ500㎜.
9 Reel diameter: Φ3“(The inner diameter)


3,Main technical parameters of the equipment:


NO. The project name Technical parameters
1 Put a roll of type: The rectifying precision is ±0.1mm, the rectifying distance is ±60mm, the unwinding precision is ≤± 0.2mm, and the guide roller adopts anodic aluminum roller.
2 Unwinding tension control range and precision 20-100N,±1N
3 Unwinding deviation control stroke and precision: ±50mm,±0.2㎜.
4 Mechanical speed: Max40m/min (Continuous adjustable)
5 Cutting acceptance rate: ≥10m/min

Cutting and specifications:

Cutting width:Two models (specific width written communication)

Standard cutting width: 2 ~ 3 pieces according to the processThe whole machine is equipped with a set of tool rest, including the head and the hydraulic lifting car for changing the tool :(the rest of the extra part shall be specified in the contract.If not specified, according to the technical specification standard configuration.
7 Cutting width accuracy: Cutting width accuracy:±0.05㎜;
8 Effect of cutting: No burrs or waves;
9 Pole burr (including single and double coated dressings and foils) Beyond the coating surface of the pole sheet: longitudinal burr ≤10 m (vertical placement of the pole sheet: beyond the surface of the pole sheet), horizontal burr ≤16 m (horizontal placement of the pole sheet: beyond the surface of the pole sheet.
10 The knives' service life

Positive dressing area tool life ≥ 200,000 metersNormal aurora foil area tool life ≥ 100,000 metersThe tool life of the negative dressing area is ≥ 200,000 meters

The cutter life of negative aurora foil area is ≥ 200,000 meters

11 Pole serpentine (bending of the cutting direction of the pole) : Cathode bending piece ≤1.0mm/1300mm,Positive pole bending piece ≤1.0mm/1300mm
12 Cutting knife brand:Domestic alloy knife A knife disc structure mode, by changing the spacer size to adjust the cutting size, top and bottom knife Φ 130 mm in diameter, minimum diameter of use: Φ 126 mm.
13 Intelligent numeration features: Total cutting length, retracting and unwinding tension, upper and lower cutting speed ratio, sliding shaft pressure, tool service life, product varieties, machine cutting speed, cutting meters can be set and stored on the touch screen, convenient tracing and process control.
14 Fault alarm: All faults will be alarm displayed on the touch screen, and the fault points will be automatically displayed for easy maintenance.Three color alarm lamp indicator light, touch screen prompt.
15 Electrical equipment: Single-phase 380V / 30A / 50Hz;Air consumption (compressed air) : 300L/Min;Total power: about 6Kw;Air source pressure (compressed air) > 6 kg/cm2Gas requirements: no water, no oil, filtered clean air.Operating environment: room temperature 20-40 ℃;30-70% humidity.
16 Winding width: min30mm~max670mm
17 Winding accuracy: ±0.5mm.
18 Winding tension control range Single shaft:5-50N

Edge disposal:


Brush roller clamping collection device, edge waste tension can be adjusted manually;Edge scrap ≥5mm
20 Device rotation rate: ≥95%
21 weight 2.5T
22 Device color The standard color is warm gray
23 Attached with Chinese operation manual and equipment maintenance manual, purchased parts manual and other materials
24 Note: please provide the customer with the pole (according to the actual situation of the positive and negative) a roll (about 500m long) test machine
