Lithium Ion Battery Production Line Fully Automatic Laminating Machine

1
MOQ
Negotiable
Price
Lithium Ion Battery Production Line Fully Automatic Laminating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Speed: ≥12PPM/min
Voltage: 220V
Weight: 1000kg
Packaging Type: Wood
Stable: 97%
Warranty: 1 Year
High Light:

automated laminator

,

automatic laminating machine

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZC-CC-04
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 80-120Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Lithium Ion Battery Production Line Fully Automatic Laminating Machine



1. equipment profile:

1.1 introduction to device functions and principles:

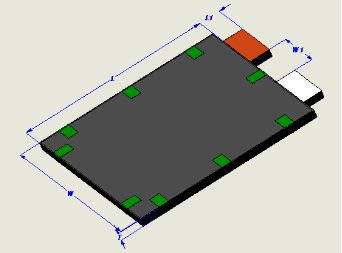

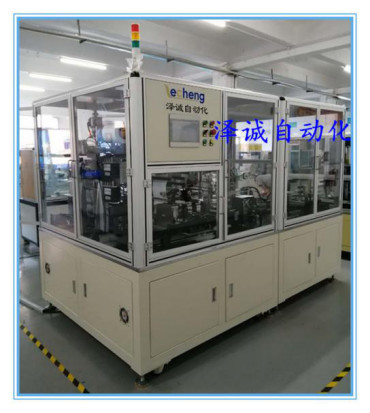

This equipment completes the automatic lamination process of power battery, and its main functions include pole sheet feeding, lamination, tail coil, adhesive and blanking. Diaphragm active unwinding, through the transition roller, the vertical tension mechanism into the main laminating table. The main lamination table drives the diaphragm to move back and forth, folding in a Z shape and placing the pole. Positive and negative manipulator from the positive and negative pole film box to take out the pole film, through the secondary positioning platform positioning, accurately stack on the main lamination platform. After stacking to the set number of pieces, stop laminating, automatic tail coil, edge bag U tape, automatically down to the discharging platform.

2. Equipment functions and technical parameters





Machine specifications

project

ZCCE04A-01
  Stacking speed (S/ chip) 1.2 seconds/piece
  Accuracy of alignment between pole and diaphragm Center deviation ≤±0.5mm (longitudinal)
  Diaphragm to diaphragm alignment accuracy The end alignment deviation is less than ±0.3mm
  Single chip alignment accuracy + / - 0.3 mm
  Overall alignment accuracy of poles + / - 0.5 mm
  Auxiliary completion time of a single cell (S) Single lap tail winding time ≤5s (if winding time is accumulated over many turns), and wrapping time ≤70s
  Working time of once installed electrode (h) 0.5
  Number of laminated Can be set
  Outsourcing the diaphragm Diaphragm number adjustable
  Finishing way Edge wrap U tape




3. Equipment use environment



(1) compressed air: 0.4 ~ 0.8mpa (4-8kgf/cm2), flow rate: 280L/min;



(2) equipment vacuum requirements: vacuum degree: -101kp ~ -50kp, flow rate: 8L/S;



(3) dust collection: party b shall have an exhaust fan in the equipment and set aside a dust removal interface;



(4) ambient temperature: 20 ~ 35℃;



(5) relative humidity: 5-55% HR;



(6) environmental cleanliness: no corrosive gas, liquid or explosive gas on site;



(7) power supply: AC220V, single-phase; Voltage fluctuation is less than ±10%; Power supply:6KVA.
