XWELL Battery Plasma Cleaning Machine Plasma Cleaner 220V 20-50KHZ

MOQ:	one pcs
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C,D/A,D/P,T/T
Supply Capacity:	100 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-2600

Power Supply:

AC220V，50/60Hz

Plasma Output Power:

20-50KHZ

Warranty:

One Year

Highlight:

XWELL Battery plasma cleaning machine

220V plasma cleaning machine

50KHZ plasma cleaner

Product Description

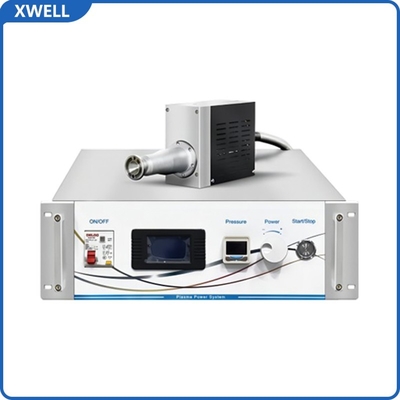

XWELL Battery Plasma Cleaning Machine Plasma Cleaner

1. Working Principle

Plasma cleaners generate plasma (the fourth state of matter) by energizing gases (e.g., oxygen, argon) through high-frequency electrical fields. This plasma consists of ions, electrons, radicals, and photons, which interact with contaminants on the material surface:

Physical action: High-energy particles bombard and dislodge organic/inorganic residues

4

5

.
Chemical action: Reactive species (e.g., O⁺, Ar⁺) oxidize or decompose pollutants into volatile byproducts (e.g., CO₂, H₂O)

6

10

.
The process occurs in a vacuum chamber (typically 10–100 Pa), ensuring minimal secondary pollution

2. Key Advantages

Eco-friendly: Eliminates hazardous solvents (e.g., trichloroethylene) and reduces ozone-depleting substances (ODS)

2

5

.
High efficiency: Cleans complex structures (e.g., micro-holes, intricate electronics) in minutes

2

7

.
Material compatibility: Suitable for metals, polymers, ceramics, and sensitive substrates (e.g., PTFE)

2

4

.
Surface enhancement: Improves wettability, adhesion, and hydrophilicity for better coating/bonding

1

9

.
Low temperature: Operates at <40°C, preventing thermal damage

Specification

Plasma Power supply specification
Machine size	560x452x186mm(LxWxH)
Weight	20KG
Power supply	AC220V,50/60Hz
Plasma output power	20-50KHZ
Control method	I/o port
Nuzzle specification	Optional 20mm,30mm,50mm(Default),70mmand 20mm,30mm,50mm,70mm muffler nozzle
Plasma clean height	5-20mm
Plasma clean width	20-80mm
High voltage cable lenth	3.5 m(< 6 m customizable
