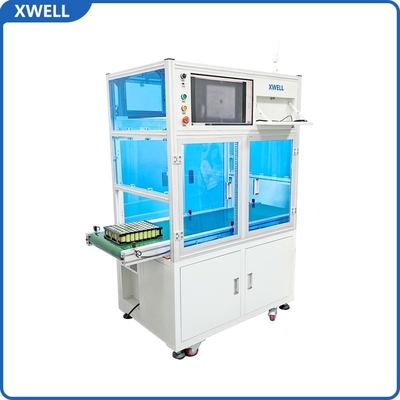

CCD Visual Inspection Equipment For Positive And Negative Battery
  • name

CCD Visual Inspection Equipment For Positive And Negative Battery

MOQ: 1 pcs
Price: 10000-1000000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 7-15days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 30 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
china
Brand Name
XWELL
Certification
CE
Model Number
XW-CCD43
Hikvision:
Ten Million Class Industrial Lens
Place Of Origin:
China
Payment:
L/C D/A D/P T/T Western Union
Highlight:

CCD visual inspection equipment

,

Negative Battery visual inspection equipment

,

1.5M/min visual inspection machine

Product Description

CCD Visual Inspection Equipment For Positive And Negative Battery



Ⅰ,Introduction

CCD vision detection equipment, in fact, means that through the machine vision product CCD image sensor will be taken into an image signal, transmitted to a dedicated image processing system, according to the distribution of pixels and brightness, color, and other information, a detection device that Converts Signals Into Digital Signals; an image system performs various operations on these signals to extract the characteristics of the target and then control the action of equipment in the field according to the results of discrimination. CCD vision detection equipment can replace the human eye to do measurement and judgment, is used in production, assembly or packaging of valuable equipment. It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding.



Ⅱ,Configuration parameter

Local database, mainly for cylindrical cell positive and negative electrode data, other categories are not compatible.

DETECTION SPEED: 100PCS/1.5 S

TESTING ACCURACY: the cell is not deformed or rusty, 100%

Mass storage product parameters, call out parameters direct detection



Specication

Hikvision 6 million HD industrial camera
Hikvision Ten million class industrial lens
recognition system Independent research and development
IPC Intel original i7 processor
Allowable material movement speed 1.5M/min
Display pixel 1920*1080
Camera width 400*300mm
DC power supply Dual Taiwan original Mingwei power supply
monitor 19 inch display
LED For battery




CCD Visual Inspection Equipment For Positive And Negative Battery 0

Tags:

Battery Pack Assembly Line,

lithium ion battery pack assembly line,

CCD visual inspection equipment
