Positive And Negative Electrode Battery Pack Testing Machine CCD

MOQ:	1 pccs
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C,D/A,D/P,T/T
Supply Capacity:	50 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-CCD43

Origin:

China

Cylinder: Adec Switching Power Supply: Mingwei, Taiwan Operating Env:

Below 55%.

Air Source:

0.5-0.6mpa

Highlight:

CCD battery pack testing machine

Electrode battery pack testing machine

500W automatic visual inspection machine

Product Description

CCD Positive And Negative Electrode Battery Pack Testing Machine

1. Function description

CCD solder joint detector is an automatic equipment for lithium battery processing, which has the functions of automatic positive and negative pole detection, positive and negative solder joint detection, solder joint defect differentiation, automatic discharge, etc.

2. Process flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging

3. Mechanical structure

1) Feed positioning of battery core

2) Polar ear leveling

3) CCD solder joint detector has high resolution image acquisition, artificial intelligence image processing and recognition technology to improve defect recognition rate

4) CCD welding detector has the advantages of fast recognition speed and high accuracy. It can select anti-static belt without damaging the battery

5) Humanized programming, easy to learn and understand.

Specication

Motor drive speed	300 mm / s
Operating system	industrial computer + intelligent camera
Transmission mode	assembly line
Driving mode	stepping motor
Repeated positioning accuracy	± 0.1mm
Detection efficiency	1s / pcs
Overall power	500W
Total weight	150kg
Input power	single phase AC 220V / 50Hz
Air source	0.5-0.6mpa
Size	960 * 950 * 1800mm

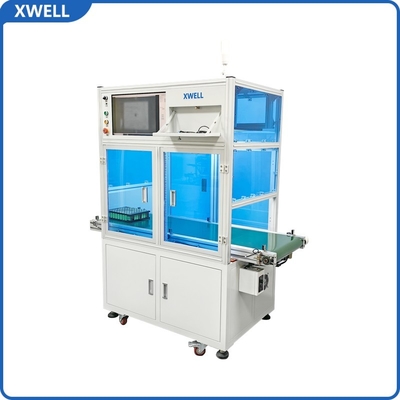

Positive And Negative Electrode Battery Pack Testing Machine CCD 0
