5000A 8000A Double Side Rotary Welding Head Automatic Spot Welding Machine

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Compliance:

CE Certified

Input Power:

Place Of Origin:

China

Payment:

L/C D/A D/P T/T Western Union

Highlight:

8000A automatic spot welding machine

5000A automatic spot welding machine

Double Side lithium battery spot welding machine

Product Description

5000A/8000A DC Welding Power Supply Double Side Rotary Welding Head Automatic Spot Welding Machine

Advantages

1) Induce load voltage, control voltage by feedback, and realize high quality welding.

2) Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.

3) Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)

4) Easy to change from low current to high current, suitable for precision welding.

5) The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.

6) The welding current rises with the time of electrification to ensure the welding effect.

Operation:

1.Setting the parameters of welding on the touch screen. (The same product only need to be set once)

2.Put the fixture with the battery pack on the quick clamping position.

3.Press the start button, the machine automatically complete all welding actions.

4.The welder sound to prompt operator replacement of new fixture (battery pack).

Specification

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm

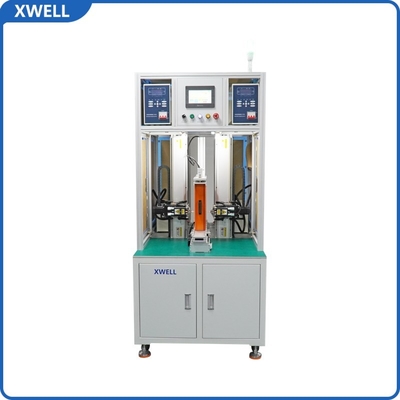

5000A 8000A Double Side Rotary Welding Head Automatic Spot Welding Machine 0
