Weighing Batching Battery Pack Assembly Line Anode Cathode Materials Battery Blender Mixer
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1000KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

1000KG Battery Pack Assembly Line

,

Weighing batching Battery Pack Assembly Line

,

Anode Cathode Materials battery blender mixer

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-49
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

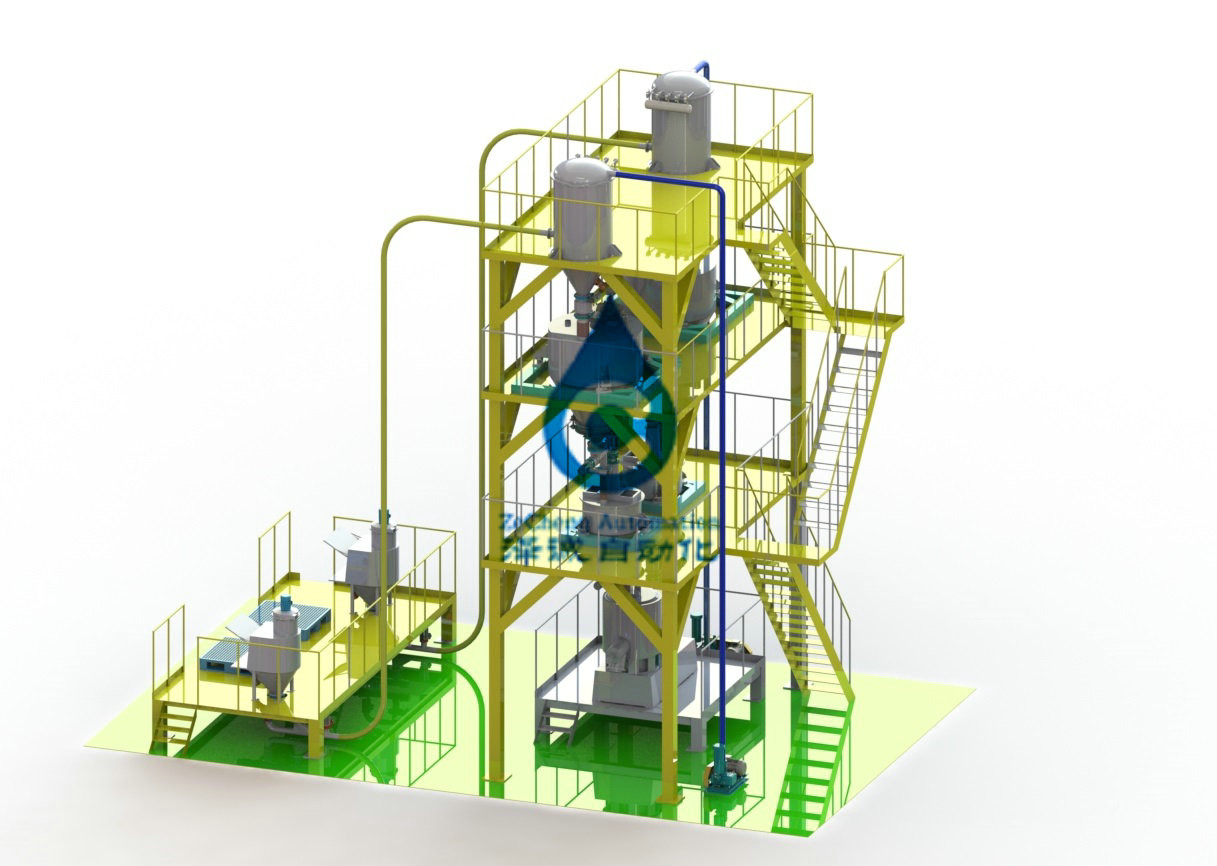

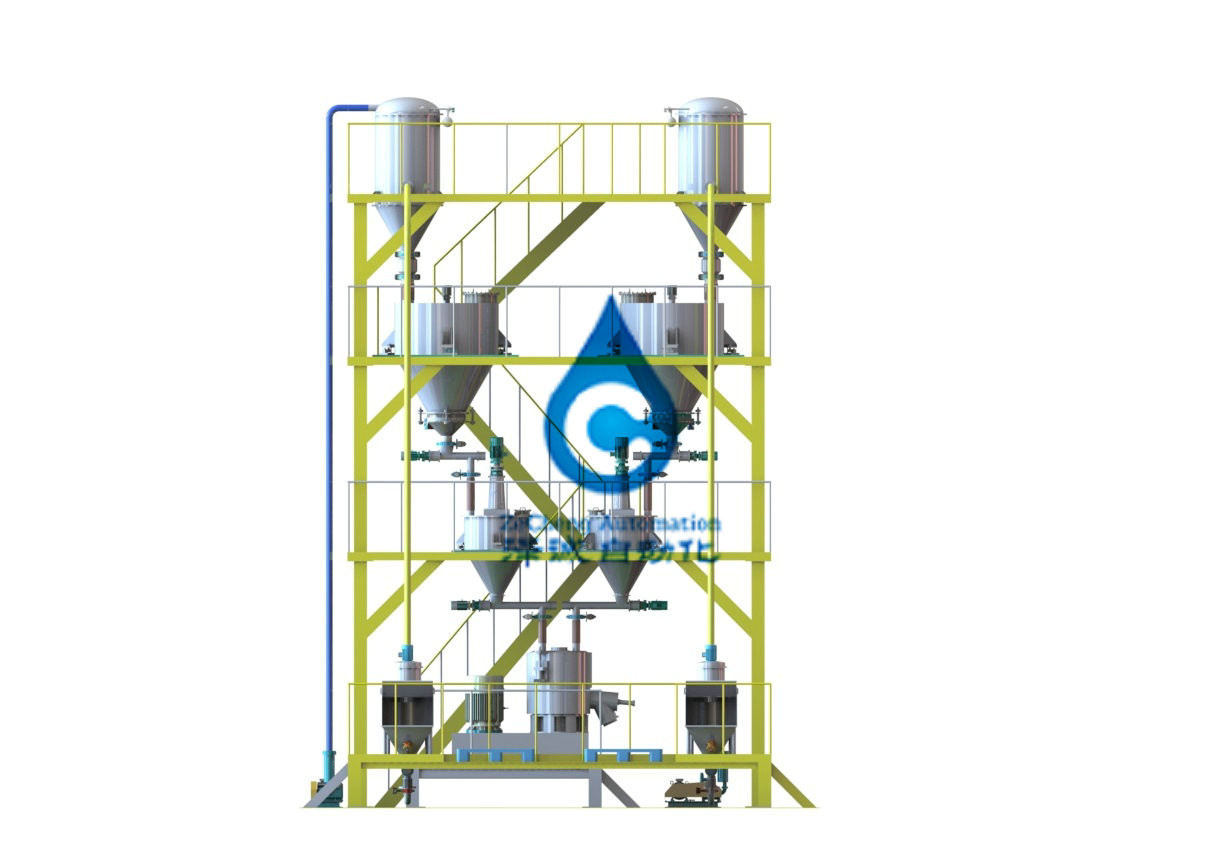

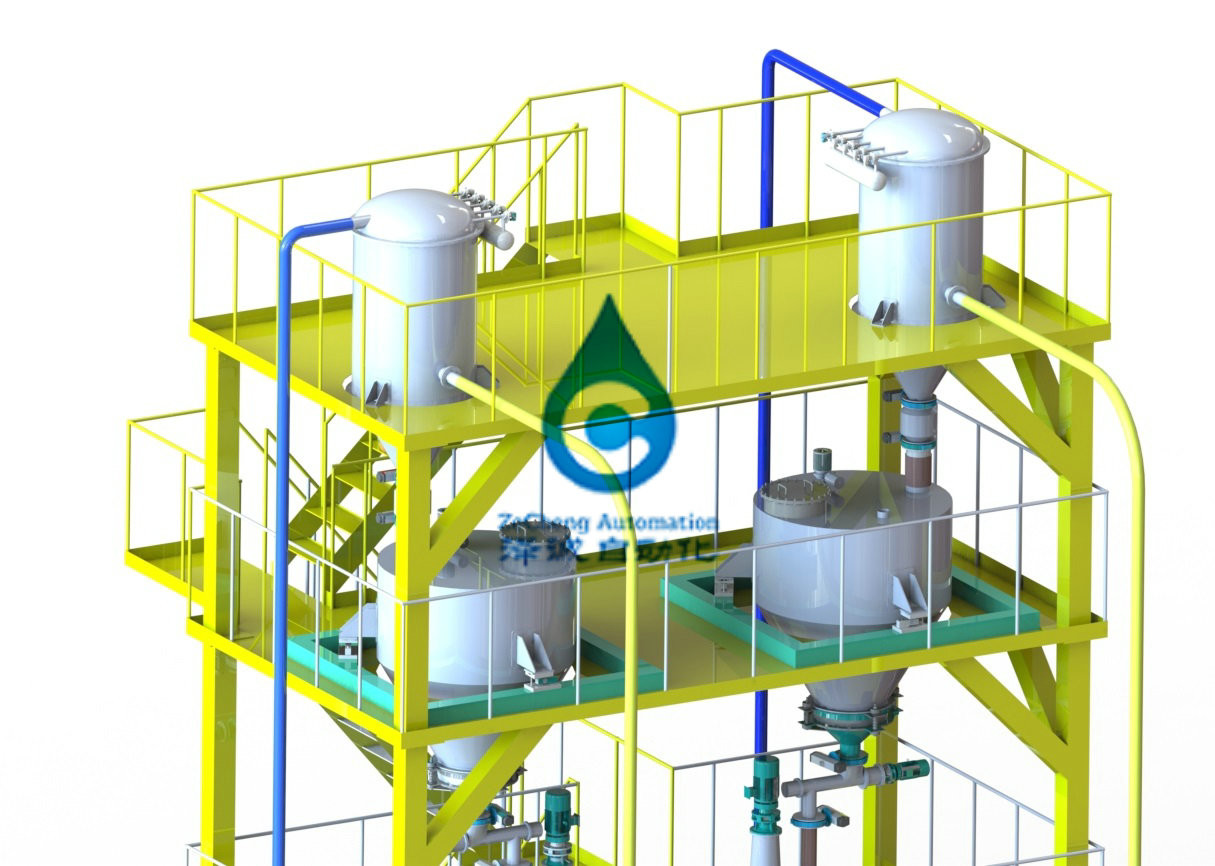

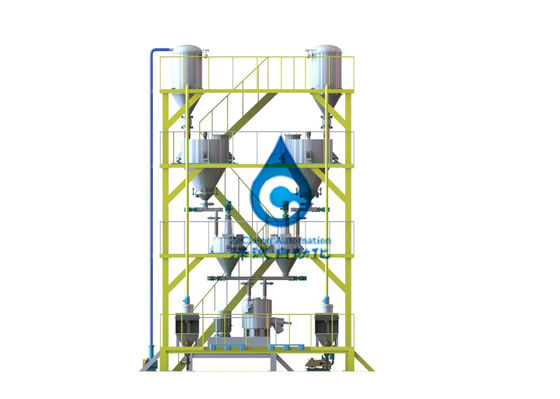

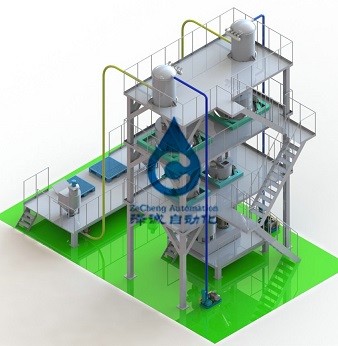

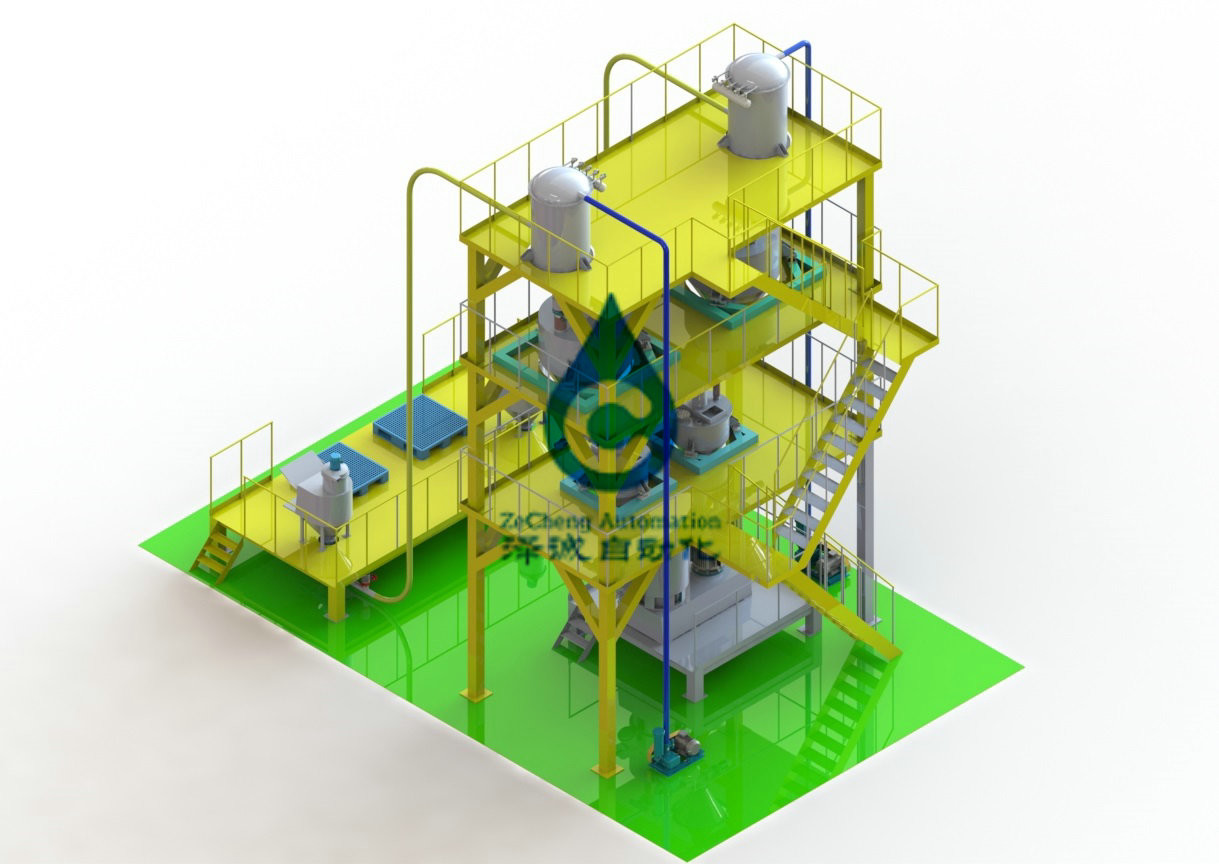

Atomatic Lithium Battery Anode And Cathode Materials Mixer, Car Battery Pack Assembly Line



1. Weighing and batching system (mixing of lithium battery anode and cathode materials, electronic weighing batching system, fully automatic batching of lithium battery) parameter

NO.

Ingredients ability

Batching accuracy

The largest ingredients

1

5T/H

0.2%

1000KG



2. Typical materialsZe cheng automatic blending system, soft magnetic magnetic materials mixing material system, lithium batteries ternary material mixing material, PVC weighing mixing material, leather material mixing system, liquid raw materials weighing mixing material, coating material mixing system, BB fertilizer weighing material mixing system, rubber automatic mixing material system, foliar fertilizer mixing system, additive material mixing system, feed weighing batching system, fertilizer weighing line with mixing raw material

3,characteristics

Weighing batching is widely used in chemical industry, steel, grain, dock and other industries.With the improvement of factory automation, the automatic weighing and batching system has the reliability, stability and report traceability, which replaces the traditional manual operation and eliminates the economic loss caused by the wrong operation. Therefore, weighing and batching plays an extremely important role in the production process.

4. Composition of batching system

1,Raw material delivery system (usually equipped with bag-opening station, bag-opening station for small bags of 25kg, or bag-opening station for ton bags)

2 material conveying system (1 positive pressure pneumatic conveying 2 negative pressure vacuum feeding 3 bucket lifting machine feeding 4 pipe chain feeding)

3,Storage bin system (determine the material and volume of the storage bin according to the type of raw materials, material properties and ratio, etc.)

4, Batching system (type: increment method, decrement weight loss method. Conveyance: belt, screw, vibration, etc.)

5. Downstream mixer (conical mixer, disc mixer)

1. Equipment functions

This equipment mainly completes the battery positive (negative) pole material powder automatic feeding, automatic weighing, automatic mixing, the mixed material is automatically loaded into the transport car, sifted particles automatically loaded into barrels.

2,Material parameters:

2.1. Positive materials: Total feeding time of all materials: 15 minutes.

2. 2.2 negative materialEach batch:Total feeding time of all materials: 10 minutes

3. Technical proposalArtificial material barrel mentioned vacuum feeding machine (or screw feeder) below, the straw into the VAT, start switch, vacuum feeding machine through the negative pressure suction to the feeding material barrels, barrels below the weighing sensor, detecting the total weight W1, when setting A material need to add W2 weight material, equipment, automatic calculation of material barrel weight W3 = W1, W2, screw conveying device driven by servo motor rotation, the material to A stirring barrels, when weight reaches the W3, servo motor to stop, VAT valve shut off.(material B has the same principle)

Powder A, B in the process of loading, stirring barrels motor rotation, began to stir, after mixing, stop stirring, by means of the four powder hopper weighing sensor sensing the powder material weight W1, funnel when setting need to feeding the small car material, plus W2 weight equipment automatic calculation of material barrel weight W3 = W1, W2, servo motor drives the screw conveying device to rotate, material to the mixture to stir barrels, when weight reaches the W3, servo motor to stop, VAT valve shut off. The conveying powder is added to the vibrating screen, through which the large particles are separated and fed into the collecting cylinder. The screened powder is fed into the following material trolley

cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
