2000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film

1
MOQ
2000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 220V
Warranty: 1 Year
Power(w): 2000W
Color: White
Voltage: AC220±10%
High Light:

protective film Battery Pack Assembly Line

,

Sticky Paper Battery Pack Assembly Line

,

18ppm battery Sticky Paper Equipment

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZC-EA-10
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T,
Supply Ability: 10 sets per months
Product Description

High Accuracy Soft Pack Battery Sticky Paper Equipment For Semi Finished Film



1. Purpose:



It is suitable for semi-finished film (with airbag) and protective film of finished battery



2. Product features:



2.1: it can adapt to different specifications of polymer flexible cell envelopment, suitable for battery envelopment of different lengths, widths and thicknesses. The corresponding parameters of different batteries can be set through man-machine interface



2.2: the method of laminating adopts the u-type laminating method, which can be applied to the battery laminating (finished products and semi-finished products) of different specifications with simple and convenient operation and low maintenance cost.



2.3 laminating efficiency 900-1000pcs /h, manual continuous feeding, automatic laminating, automatic blanking, laminating effect consistency, easy to understand the operation (or link the automatic line).



2.4 application of batteries: polymer soft-coated battery semi-finished film and finished battery protective film.



2.5 scope of application: polymer soft-coated battery electrical core envelope



3. Technical parameters:

NO. The name of the parameter Note
1 Battery thickness 2-15mm. this model is commonly used. If the customer's product specification exceeds this specification, it needs to be customized.
2 Battery height 50-110mm.
3 Battery width 60-100mm.
4 Film sticking accuracy +/-0.5mm
5 Product yield ≥99%, under normal conditions. Failure rate ≤ : 3%
6 Laminating method manual feeding (or automatic feeding of assembly line or pallet), automatic laminating (package laminating), and automatic feeding.
7 Material and specification coil PE protective film, inner diameter: 78mm, outer diameter 180mm
8 Mechanical efficiency of equipment 15-18ppm.
9 Voltage/pressure 0.6-0.8 KGF /cm. AC220V
10 Machine size length 3500mm width *1200mm* height 1850mm.

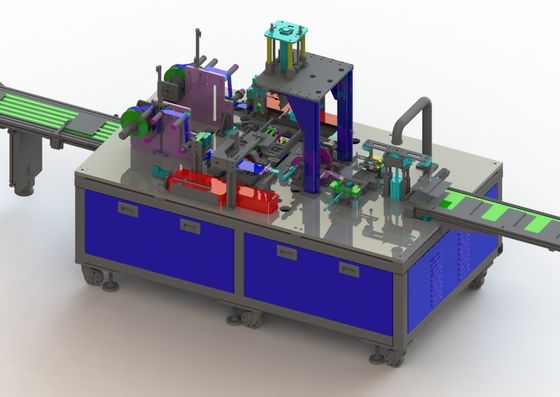

2000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film 0

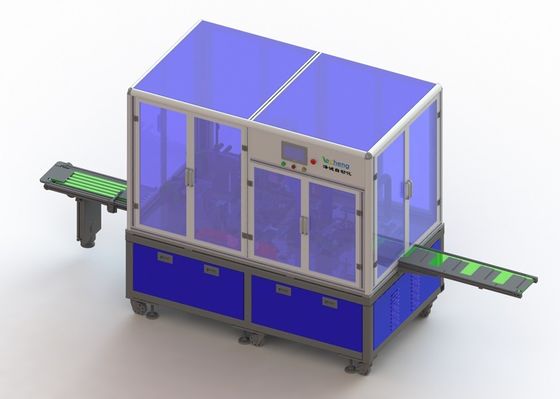

2000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film 1

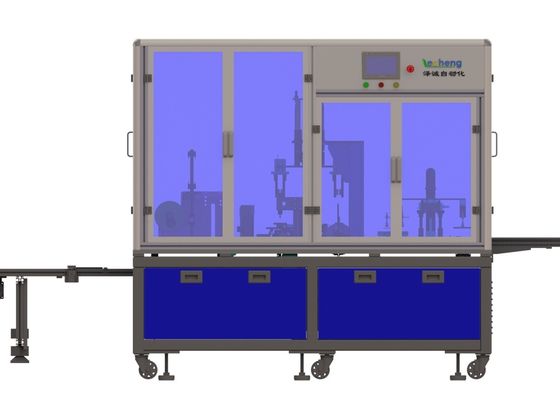

2000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film 2



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to the tenderer are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.

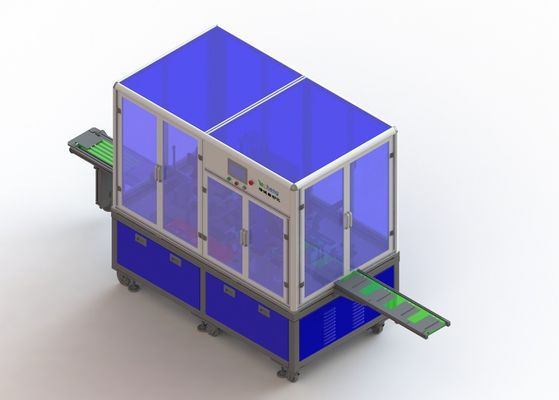

2000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film 32000W Battery Pack Assembly Line Battery Sticky Paper Equipment For Semi Finished Film 4
