40PPM Car Battery Production Line 1500KG Square Cell Tail Taping Into Shell Machine

Negotiation, email communication
40PPM Car Battery Production Line 1500KG Square Cell Tail Taping Into Shell Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1500KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

40PPM Car Battery Production Line


Tail Taping Car Battery Production Line


1500KG Lithium Ion Battery Assembly Machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-39
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

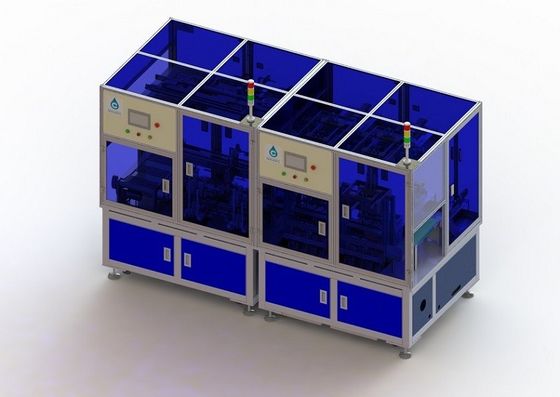

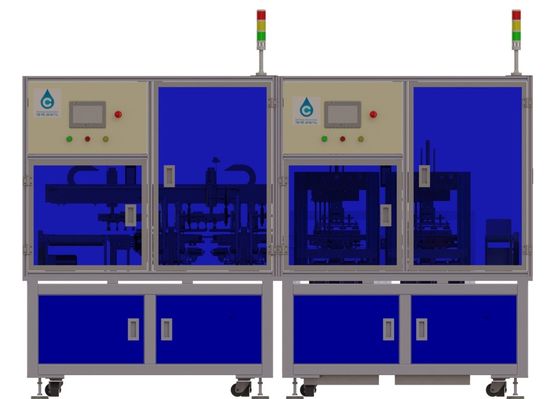

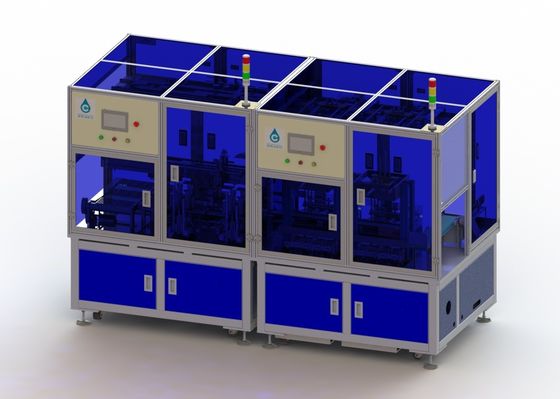

1500KG Car Battery Production Line Square Battery Cell Tail Taping Into Shell Machine


1. Design requirements

1.1. Applicable coiler size: width: 30 ~ 70mm;Height: 36 ~ 80mm, thickness: 3.0 ~ 10mm.

1.2. The length of adhesive paper on the left and right sides after the roll core is glued is L4:0.2 ~ 1mm

1.3. The two sides of the reel are symmetrical, and the absolute difference is 0 ~ 3mm.

1.4. The diaphragm paper cannot turn out to the roll core after the roll core is glued (the diaphragm paper bends to the inside of the roll core without exposing the diaphragm)

1.5. The pole piece and diaphragm will not be damaged after the roll core is glued.

1.6 when entering the shell, there shall be a guide groove between the coil core and the shell mouth

1.7. The coil core positive and negative ears do not bend during the process of sticking the bottom glue and entering the shell.

1.8. The Angle between the coil core and the side of the shell after entering the shell is ≤ 50

1.9 the distance between the coiling core and the inner wall of the shell bottom after entering the shell requires L3:0.5±0.2mm;

1.10. The distance between the coil core and the two edges of the shell L1 and L2 requires: ≥0.1mm

1.11, the difference between the coil core and the edge of the shell

1.12 after the coil core enters the shell, it can automatically test the distance between the exposure of the negative electrode ear and the shell mouth, and determine OK or NG (there is no requirement in this test drawing, in addition, due to the length error of the supplied materials of the polar ear, is this determined by whether or not?)

1.13. Production qualification rate ≥ 99.8%

1.14. Production yield ≥ 95% and production efficiency ≥40PPM

15. The operation time of switching model should not exceed 30min40PPM Car Battery Production Line 1500KG Square Cell Tail Taping Into Shell Machine 0

3,Main technical parameters of the equipment

3.1 adaptive objectsBattery length: 36 ~ 80mm, battery width: 30 ~ 70mm, battery thickness: 3.0 ~ 10mm.Need to adjust the location of the positioning block, the size of the aluminum shell feed tank.

3.2 technical parameters of the equipment

Equipment technical parameters



Technical parameters efficiency(PPM) 40PPM
Auxiliary time (MIN)/shift 30
Product pass rate 99.8%
Rate of grain or move 95%
Product model replacement time 30min
Compressed air system 0.4-0.6MPa
The total power(kw) 8
Normal operating power(kw) 7.6

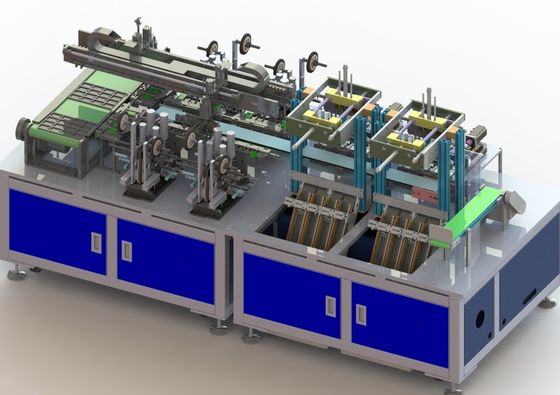

5. Description of main equipment partsManipulator batteries from blister tray sucked up into the positioning fixture, a preliminary positioning, tape feed volume institutions for glue, tape at the bottom of the battery hold-down mechanism will be at the bottom of the pressure, stick tape, manipulator will stick tape batteries sucked up into the into the shell station, battery shell, the shell through a funnel guide guide way. Into the shell push into three times, the first two for the clamping push, the last one for the direct push.

6. Energy medium6.1 the power supply

6.1.1 voltage is AC220V plus or minus 10% single phase instantaneous changes under 0.5 s less than 10%

6.1.2 frequency 50hz + 1hz

6.2 the air

6.2.1 pressure 0.5 Mpa 5 KGF/cm2,

6.2.2 flow 15 l/min

cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
