10M/Min Battery Production Machine Battery Pole Piece Winding Unwinding Machine
Product Description
Product Description
1. Device function Mainly used for rewinding and unwinding of battery pole pieces. 2. Process requirements 2.1 Basic technical parameters of the equipment:
project
Machine Specifications
efficiency
10M/min
2.2,Specification range
content
Range accuracy
Other
Incoming roll core
74mm(3寸)
Incoming material maximum outer diameter
220mm
Incoming width
60-200mm
Incoming material uniformity
±3mm

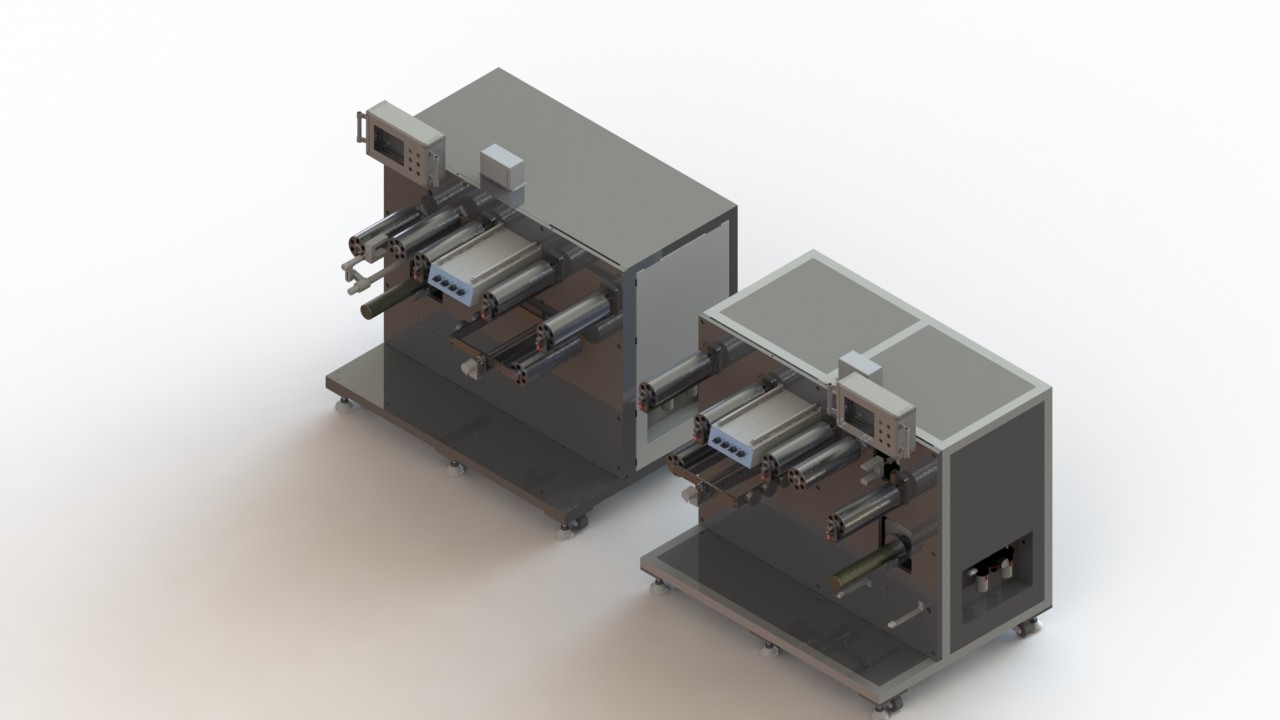

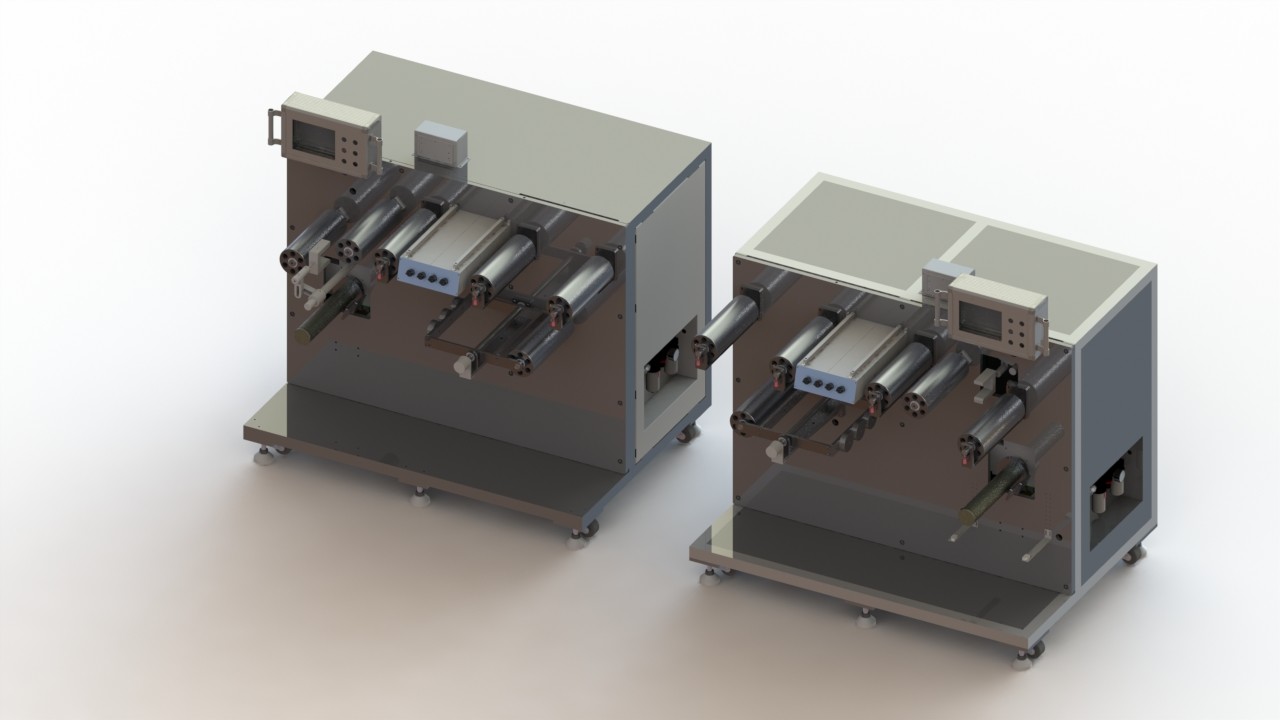

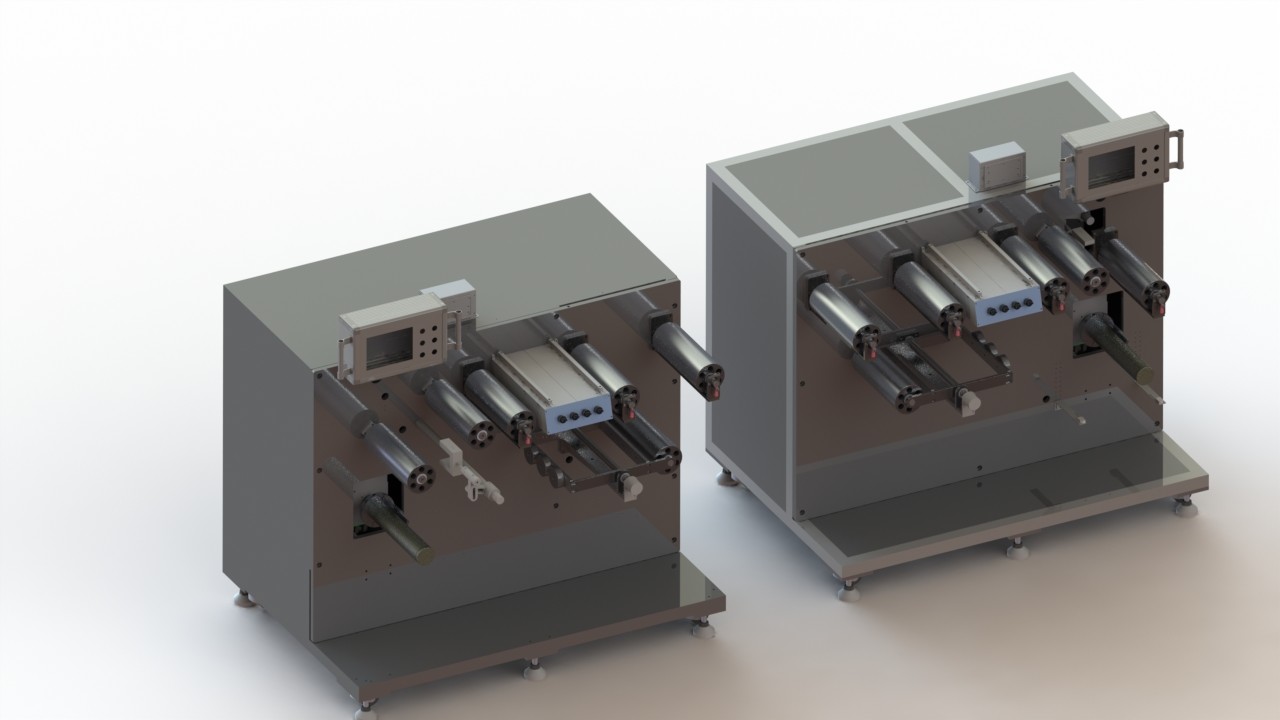

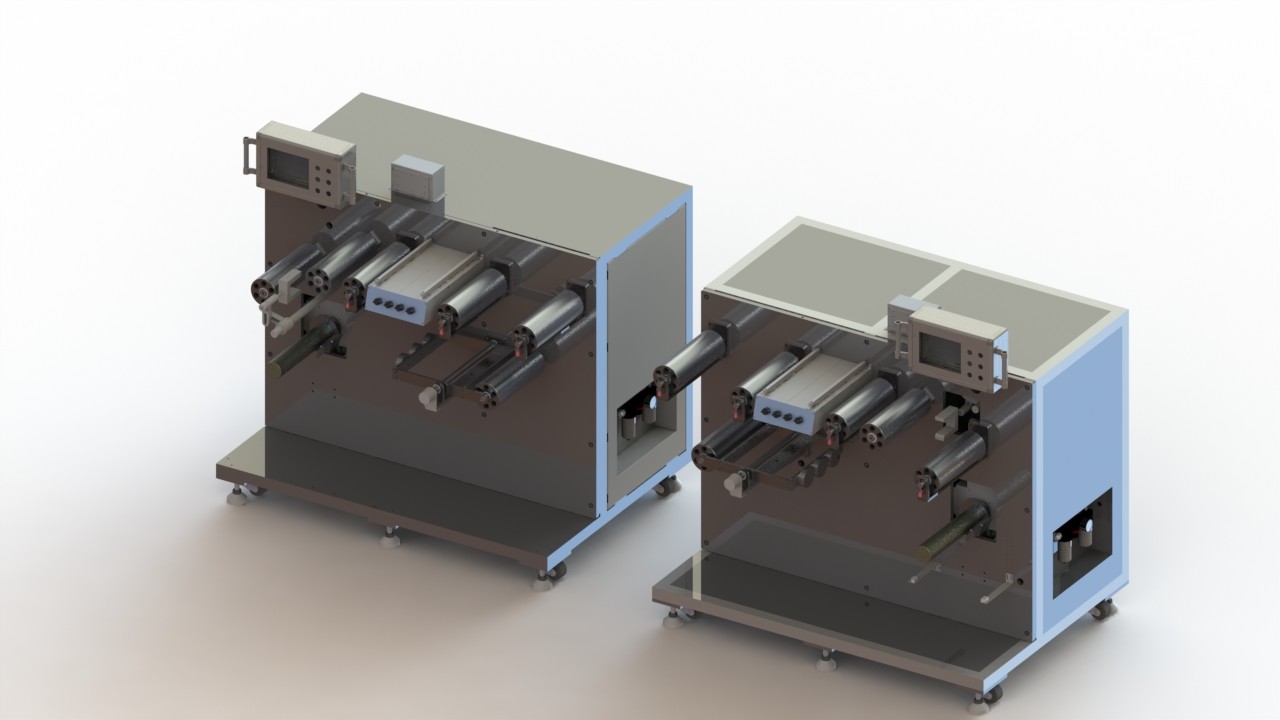

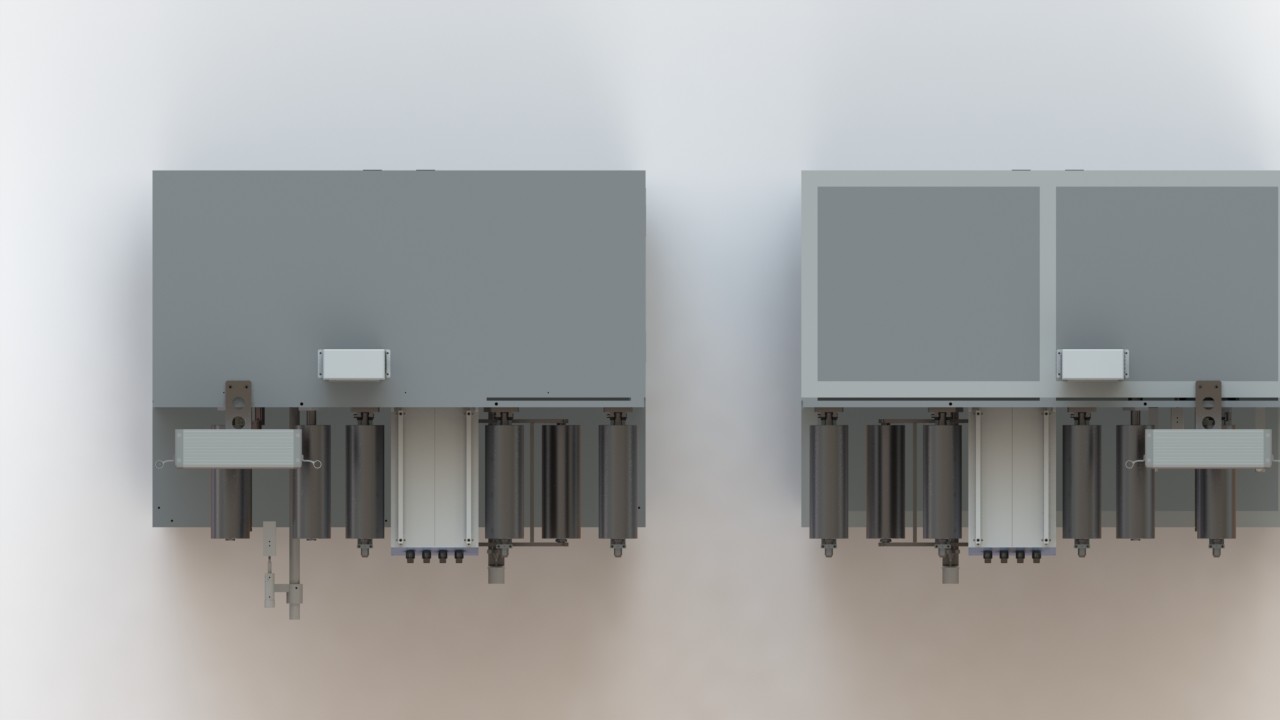

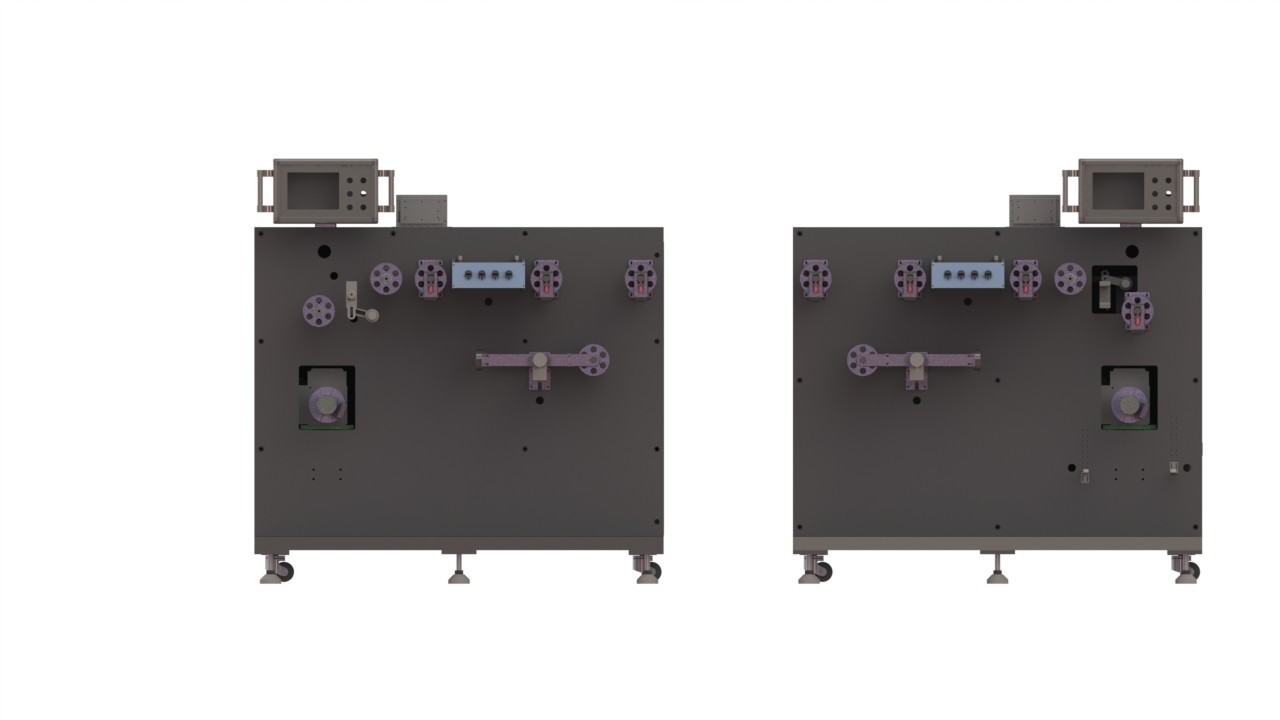

2.3 The equipment can realize automatic deviation correction of rewinding and unwinding coils. 3. Equipment introduction Schematic diagram of the equipment (the picture shows the schematic diagram of the unwinder, and the rewinding is in the opposite direction, the others are the same)
4, the main components of the equipment
NO.
System composition
System configuration
Quantity
1
Unwinding system
1Set
rack system
1
Slabs
1
Unwinding correction mechanism
3
Unwinding tension mechanism
3
2
Unwinding system
1Set
rack system
1
Slabs
1
Correction of the composite belt process
1
Receiving drive mechanism
1
electrical control system
1
5. Environmental requirements 5.1 Compressed air: air source pressure (compressed air) > 6 kg/cm2, maximum consumption 50L/min, dry; 5.2 Ambient temperature: 20～35℃ 5.3 Relative humidity: 5～55%HR 5.4 Power supply: AC220V, single-phase; voltage fluctuation less than ±10%; power supply: 6KVA 5.5 Vacuum: Vacuum degree: -100kp～-70kp, negative pressure is stable, which can meet the stable production of equipment. 5.6 The ground bearing capacity of the workshop: ＞800kg/㎡;
