1.1. The profile

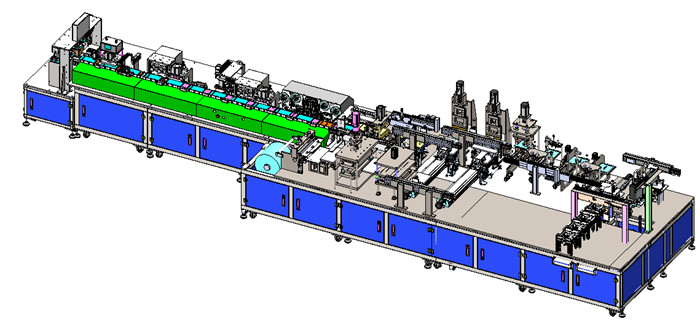

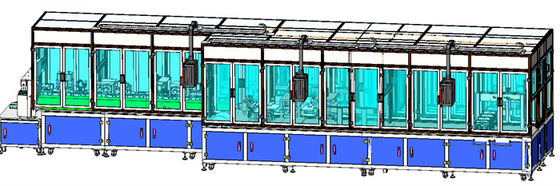

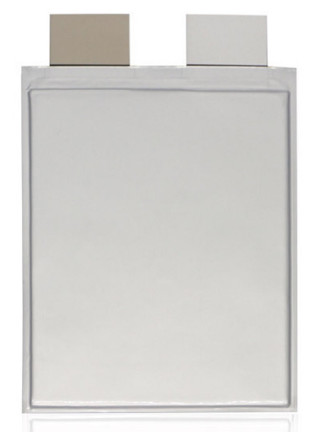

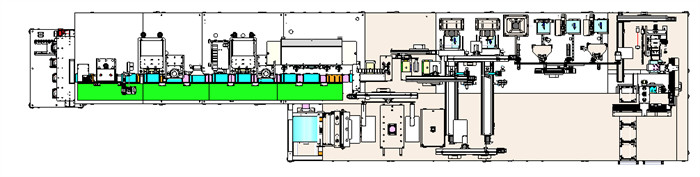

This equipment is mainly the laminated rectangular batteries after thermal loading, weighing (NG) separation, short circuit (NG) separation, pole ear welding, cutting, vacuuming, ear welding, stick gum, short circuit, aluminum-plastic film automatically put volume, automatic correction automatic fixed-length cutting, automatic punching hole forming, batteries, automatic feeding, automatic into the shell, aluminum-plastic film automatic folding, automatic sealing, automatic side sealing, HI - POT test automatically, automatic printing, automatic trimming, automatic coating, automatic under general manger.
Features:
1.1.1 the whole packaging line has a high degree of automation. It is enough to manually put the whole battery into the feeding station after winding.
1.1.2 high efficiency: 8PPM
1.1.3 automatic test short circuit: automatic test hi-pot, and automatic elimination of unqualified.
1.1.4 low operation cost: the equipment has a high degree of automation and simple manual operation. A worker can operate several devices at the same time.
2. Equipment technical parameters
|
Machine specifications |
ZCCE04A-R |
|||
|
Technical parameters |
Efficiency (PPM) |
8 |
||
|
Working pressure (T) |
1 |
|||
|
temperature control accuracy |
+/- 1℃ |
|||
|
Edge width |
3 -- 6 mm |
|||
|
Encapsulation time range |
2-3 s |
|||
|
Sealing side thickness |
0.19-0.3mm (adjustable) |
|||
|
Temperature setting |
220 degrees is adjustable |
|||
|
Precision of automatic forming outline size |
+/- 0.2 mm |
|||
|
Hole depth accuracy |
+/- 0.1 mm |
|||
|
Maximum pressure |
5 tons (adjustable pressure) |
|||
|
Press mold to ensure the normal service life |
More than a million times |
|||
|
Compressed air system |
Air source provided by party a |
|||
|
Total power (kw) |
18 |
|||
|
Normal operating power (kw) |
15 |
|||
|
Qualified rate of equipment products |
≥95% (bad products caused by the machine only) |
|||
|
Equipment failure rate |
≤5% (failure caused by equipment only) |
|||
