380V Winding Unwinding Machine 8PPM Battery Pole Piece Film Rolling Machine

1
MOQ
Negotiation, email communication
Price
380V Winding Unwinding Machine 8PPM Battery Pole Piece Film Rolling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition:: New
Year: 2022
Dimension(L*W*H):(kw): 5600*1800*2600mm
Voltage: 380V
Effectiveness: 8PPM
Weight: 27000 KG
High Light:

380V battery winding unwinding machine

,

8PPM battery winding unwinding machine

,

battery pole piece film rolling machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

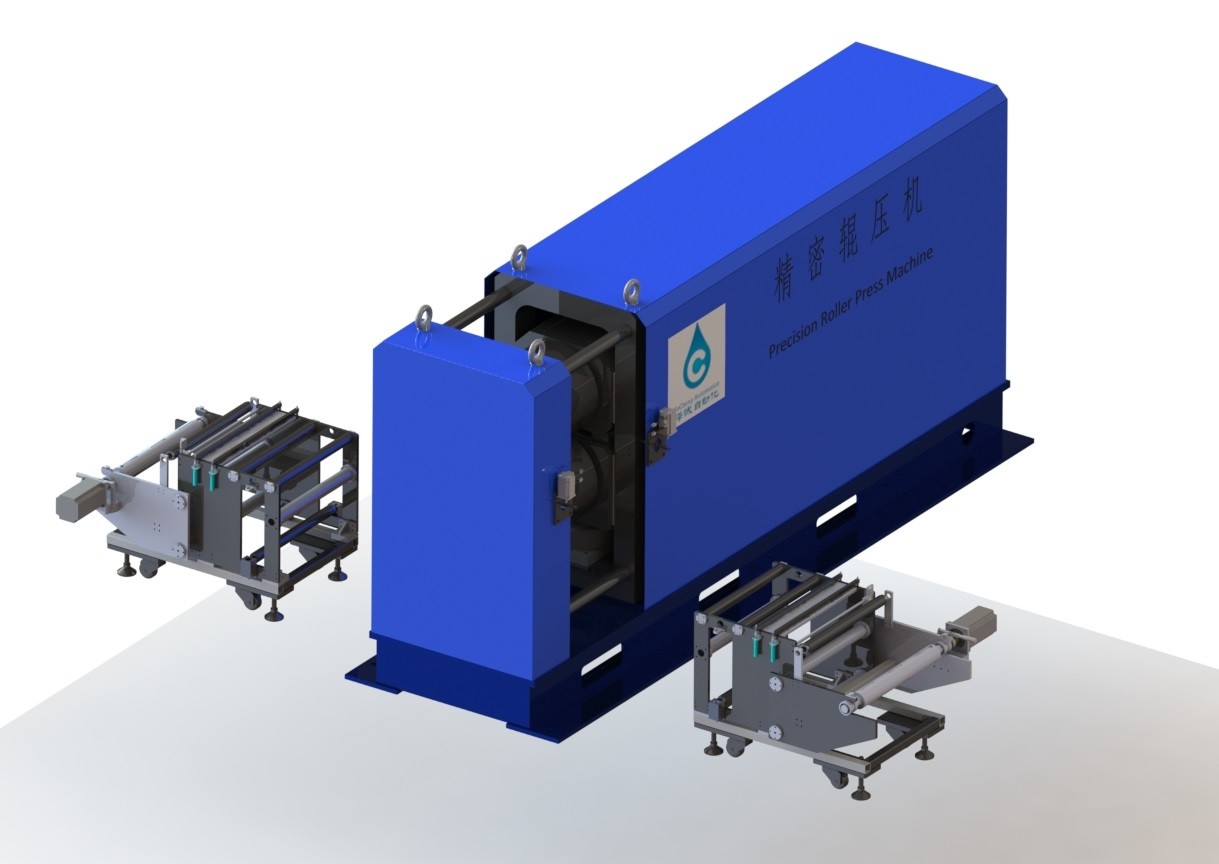

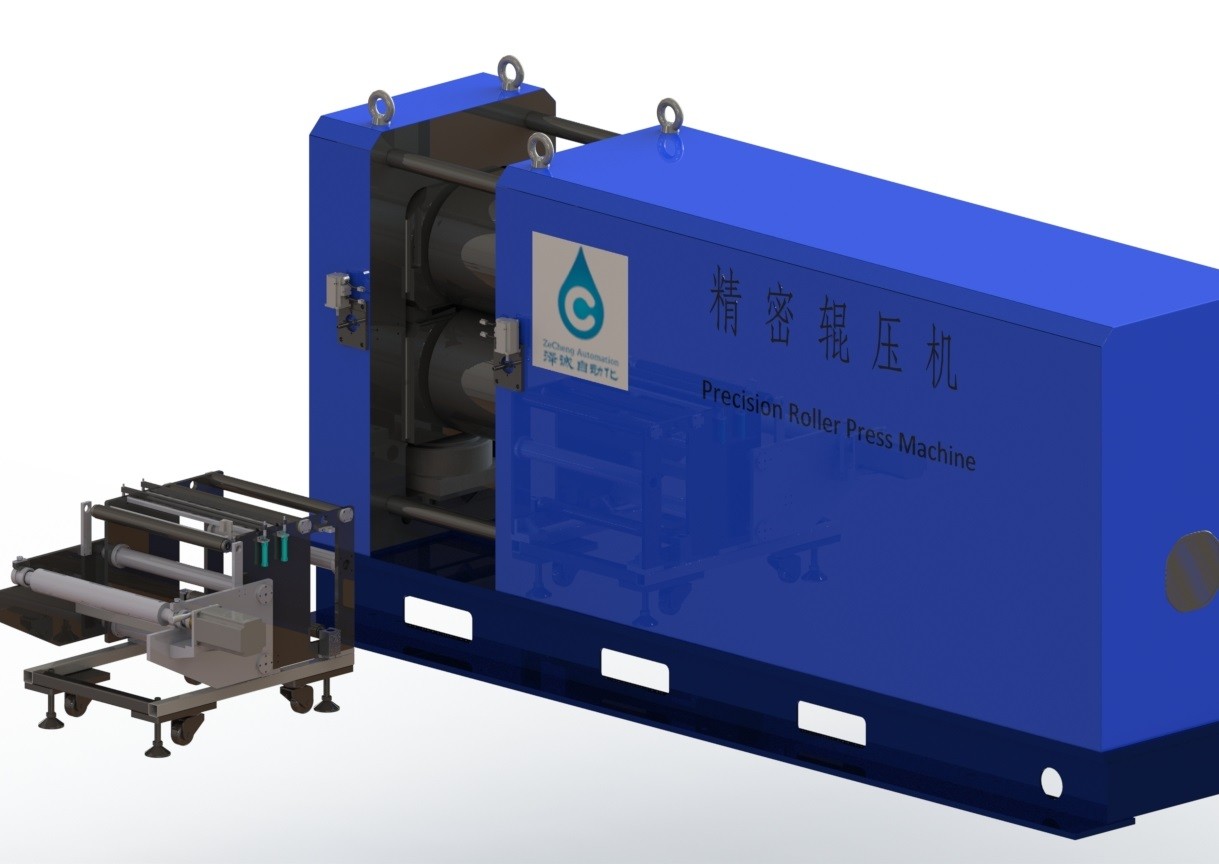

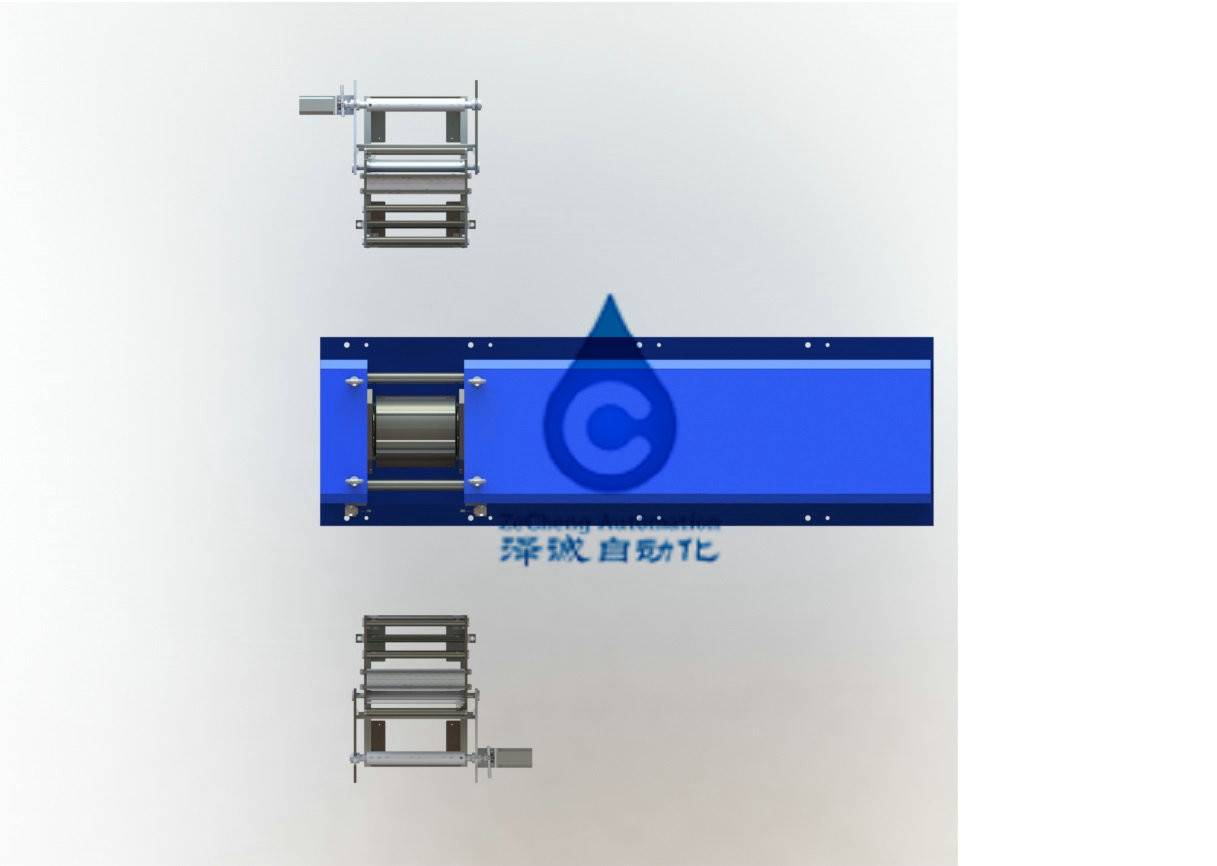

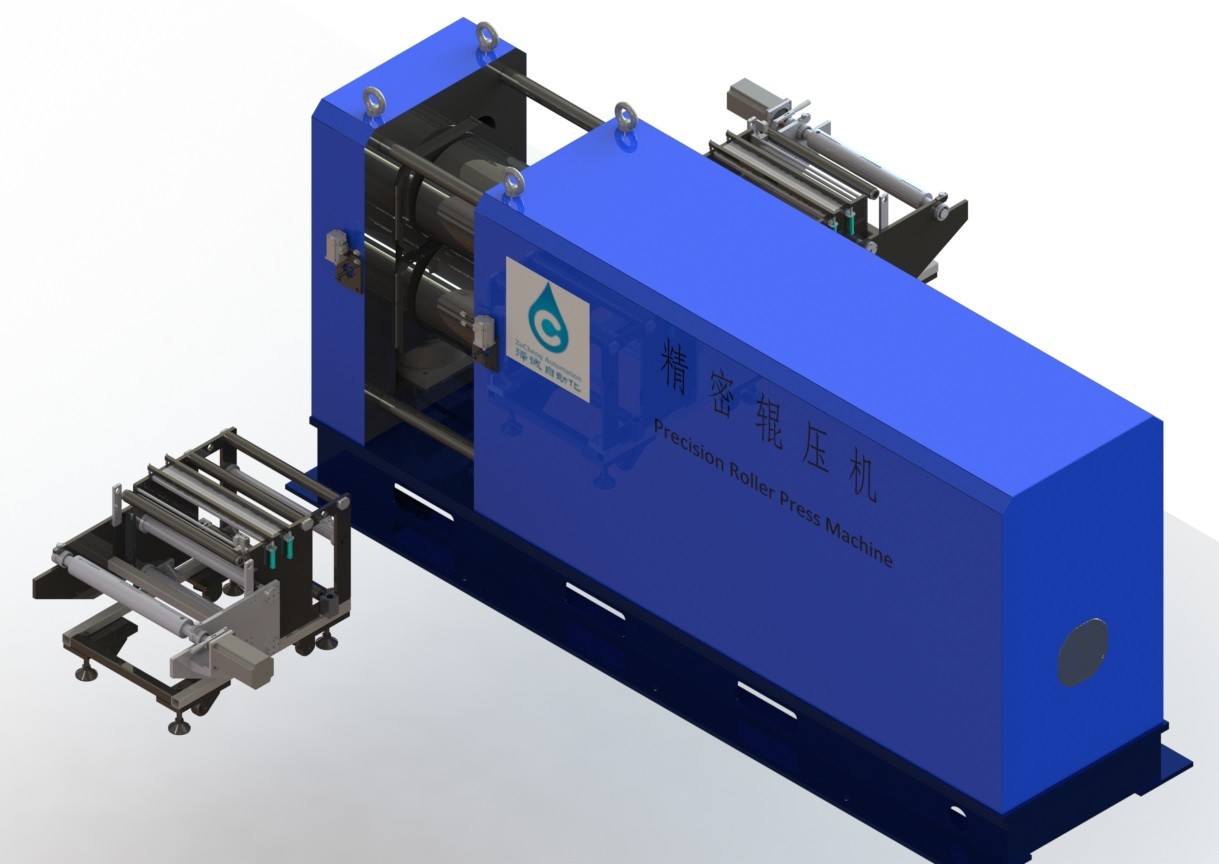

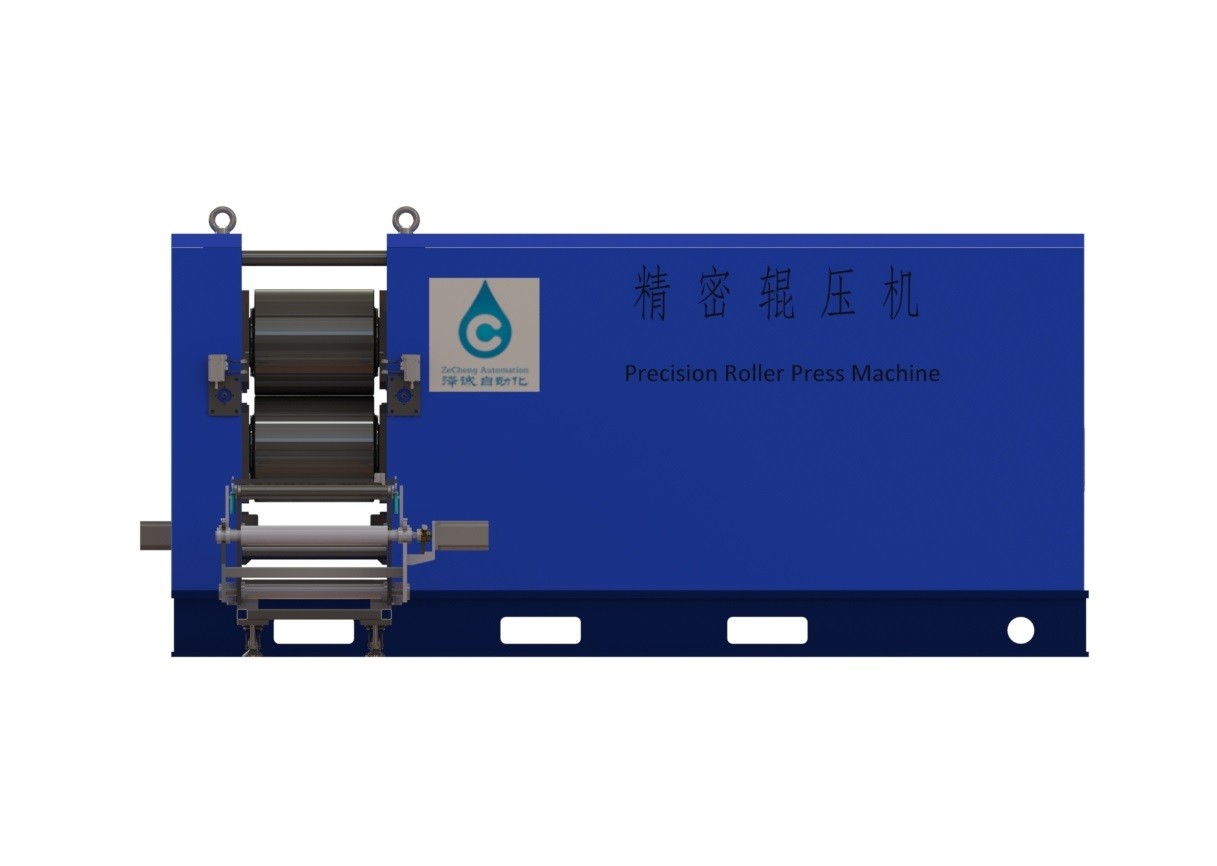

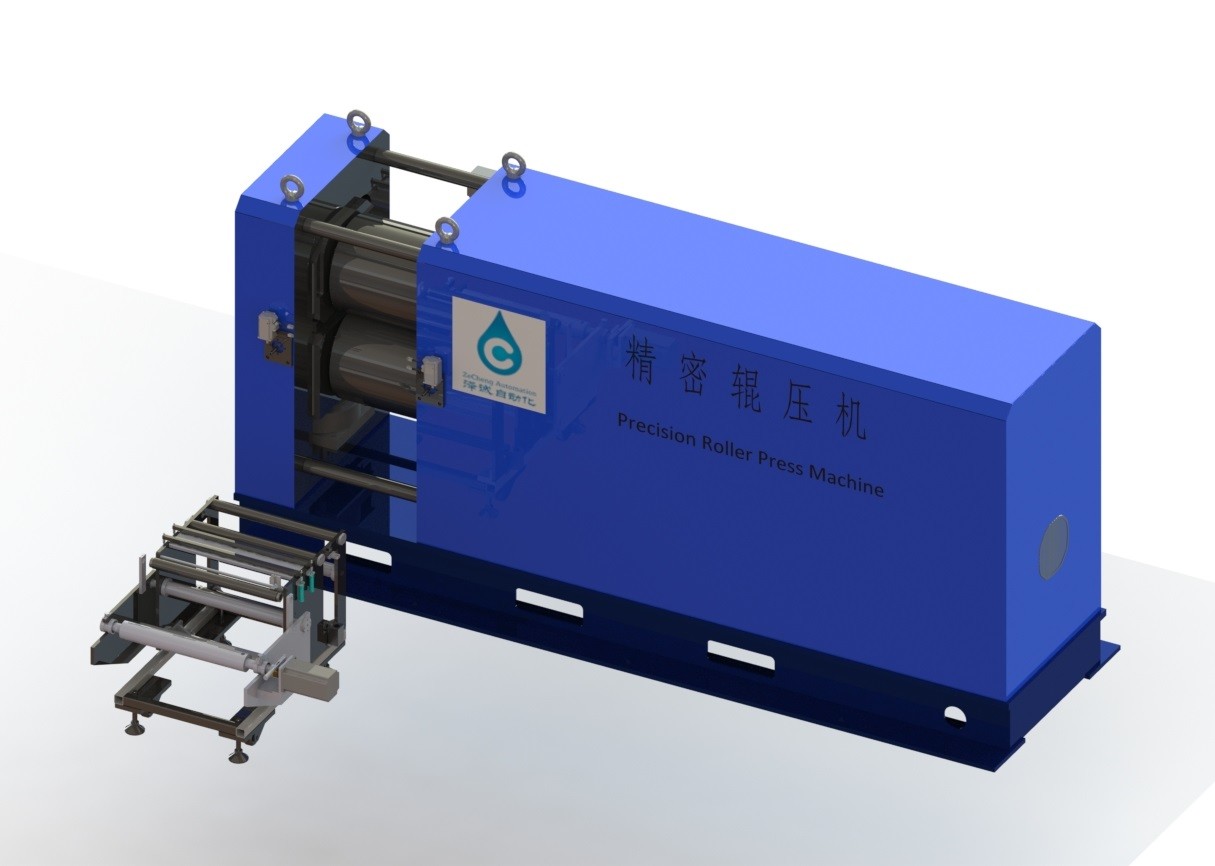

380V Winding Unwinding Machine 8PPM Battery Pole Piece Film Rolling Machine 0
1.Main USES of the equipment:
Strong film rolling machine, battery plate mill, battery plate roller, battery plate roller press The rolling of the battery pole sheet is a process of forming friction between the roll and the battery pole sheet.Battery pole piece rolling different steel rolling, rolling sheet is along the longitudinal extension and transverse process of spread, its density does not change in the rolling process, and the battery pole piece rolling is negative on the battery material compaction process, its purpose is to increase the positive or negative material compaction density, suitable compaction density can increase the discharge capacity of the battery and reduce the internal resistance, in order to reduce the loss of polarization, extend the life of the cell cycle, improve the utilization rate of lithium ion batteries

2.Main technical parameters of the equipment:
Technical parameters
Roll specifications
Φ400X450
Sheet width
100-400
Output speed (frequency conversion)
0-8m/min
Precision of roller plate
≤±0.003mm
Output linear speed (frequency conversion)
0-8m/min
Roll runout
≤±0.003mm
Heat roller surface temperature
50-150±1℃(adjustable)
Heating roller effective use width
Max400
Heating roll power
30KW
Tension range
1-10Kg
pole piece diameter
MaxΦ450
Pole coil weight
Max400Kg
Pressure range between rollers
300T
System operating pressure
0.2-0.7MPa
Main motor power
15KW
Correction accuracy
±0.4mm
Roll gap adjustment
0-1.5mm
Roll gap adjustment accuracy
±0.001mm
The host weight
5T
Overall dimensions

3.Host technical parameters: 3.1roll size: the positive Φ 400 mm * 450 mm; 3.2 effective working face width of the roll: 400mm; 3.3 roll speed (Max) : 8rpm (continuously adjustable); 3.4 roll hardness: ≥ HRC64 roll hardness thickness: > 12mm; 3.5 roll cylindricity: 0.01mm; 3.6 maximum rolling force: 3000KN (adjustable); 3.7 roll surface roughness: Ra=0.8; 3.8 roller clearance adjustment amount: 0 ~ 2mm(no special requirements with 0 ~ 1mm micrometer); 3.9 the roll is equipped with a scraper cleaning device and a dust receiving device; 3.10 weight: about 27t (excluding disassembly tools); 3.11 external dimensions (length × width × height) : about 5600mm×1800mm×2600mm (disassembly tools are not included).
4.Technical parameters of winding and unwinding device: 4.1 air expansion shaft is adopted for rewinding and unwinding, inner diameter of rewinding core: 3", effective length: 700mm (rewinding drum is provided by the user); 4.2 tension control: brake clutch control; 4.3 precision of winding and unwinding deviation correction controller: ±0.3mm;450 mm diameter 4.4 material: Φ; 4.5 weight: approx. 1t; 4.6 overall size (length x width x height) : about 750mmx1500mmx750mm(rewinder);About 750 mmx1500mmx800mm (rolling machine);
5. Technical parameters of edge cutting dust removal device: 5.1 cutting speed: match with the main machine; 5.2 cutting edge width: 400mm ~ 700mm (continuously adjustable); 5.3 vacuum cleaner air volume: 1000m3/h 5.4 weight: approx. 1t. 2 power source of equipment:Provided by the buyer.Air source: air pressure 0.5 ~ 0.7mpa.Power supply: 3 Ф 35 kw 380 v, 50 hz. 3 working environment and safety requirements:Be dustproof and moisture-proof. 4 equipment surface treatment and appearance requirements:The exposed surface of the structural parts shall be treated with anti-rust treatment, the appearance shall be beautiful and elegant, and the color shall comply with the supplier's standard or the color label provided by the buyer. 5 test methods and requirements:The equipment runs continuously for 2 hours, a load test (about 30 minutes). 6. Specifications and quantity of test materials provided by the demander:The demander shall provide qualified materials needed for test run and acceptance. 7 wearing parts and spare parts of equipment accessories (name and quantity) :Edge cutter: 1 piece
