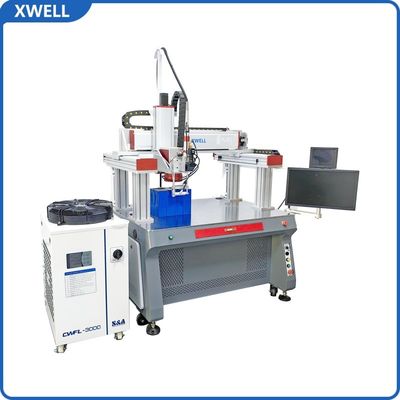

Name: 3000W Laser Welding Machine For Battery Pack Welding
Brand: GUANGDONG XWELL TECHNOLOGY CO., LTD.
SKU: XW-LGG
Price: 505,000.00 USD
Availability: InStock

MOQ:	1 pcs
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C,D/A,T/T,D/P
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-LGG

Transmission Motor:

Servo Motor

Payment:

L/C D/A D/P T/T Western Union

Warranty:

1 Year

Highlight:

3000W laser welding machine

4000W laser welding machine

6000W laser welder

Product Description

3000W Laser Welding Machine For Battery Pack Welding

Main feature:

1. The photoelectric conversion efficiency can reach 40%, and the power consumption is low;

2. Continuous 3000W pure fiber laser, which can penetrate 3mm materials for direct welding;

3. Precise servo system control to ensure welding accuracy.

Product functional characteristics:

1. Independent research and development design, high precision of machine tool. Having long service life with stability and reliability;

2. Equipped with high-response and high-precision servo motor;

3. International first-class quality fiber laser, many years of industrial application, long service life and maintenance free;

4. High-precision laser welding head, imported optical lens, fine focus, convenient adjustment, perfect welding;

5. The operation of the numerical control system is simple and easy to learn, and the requirements for the operator are low;

6. Welding mode input in various formats, powerful drawing and editing graphics functions;

7. Special welding software, welding process expert, data saving and calling function.

Specication:

Specification and model	1500W	2000W	3000W	4000W	6000W
Laser output power	1500W	2000W	3000W	4000W	6000W
CCD	1.3 million images, anti flash
Wind knife	Single layer wind knife		Double layer wind knife
Chiller	1.5P	2P	3P	4P	6P
X stroke	800mm		1000mm
Y stroke	600mm		800mm
Z stroke	400mm		400mm
Repetitive positioning accuracy	±0.02mm
working voltage	AC220V 50/60Hz		AC380V 50/60Hz
Reference dimensions	LWH=145010502050mm		LWH=170012802050mm
Overall weight	350KG		450KG


3000W Laser Welding Machine For Battery Pack Welding 0
