Battery Pole Piece Forming Machine Automatic Welding Battery Electrode Pieces

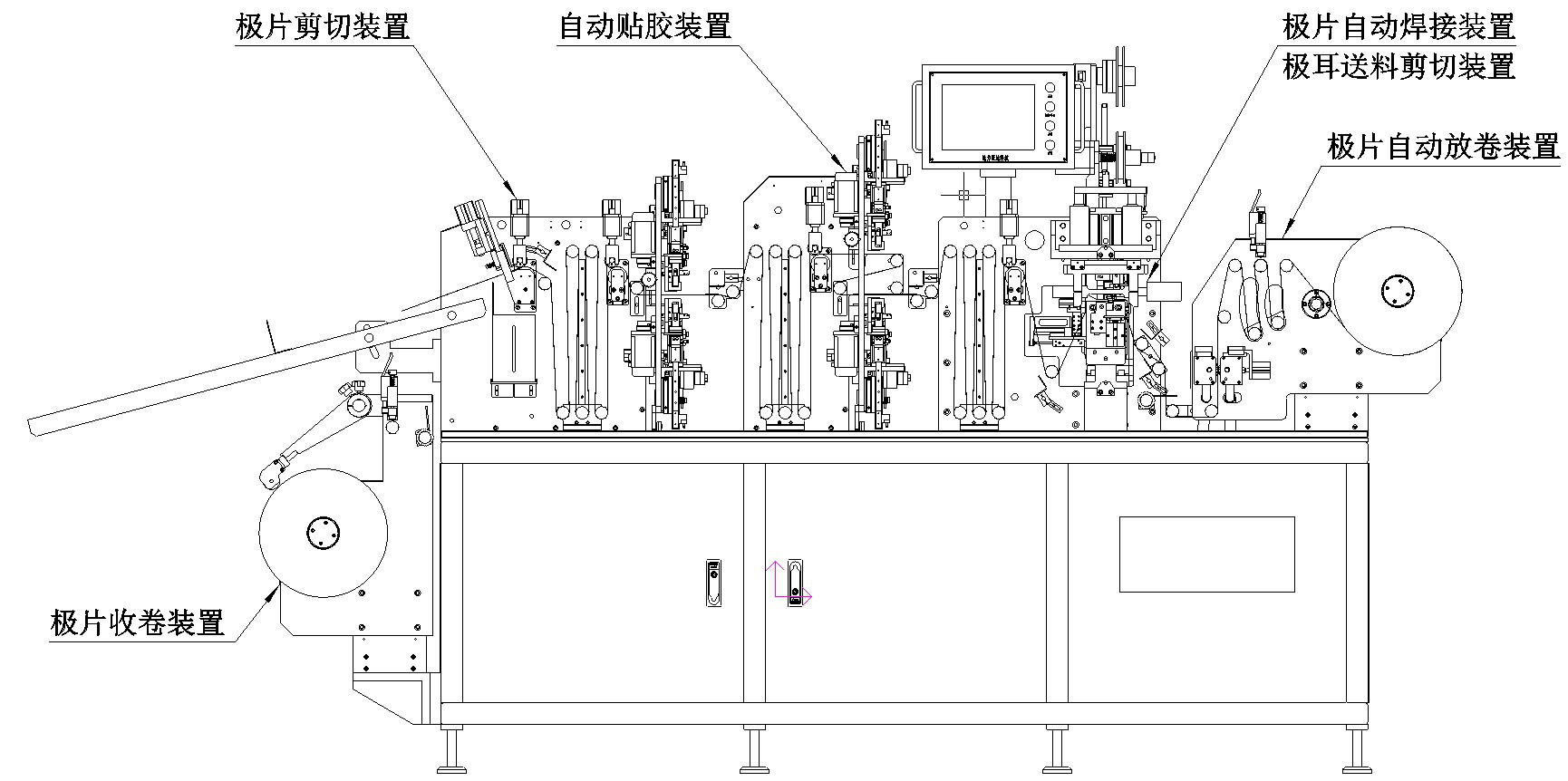

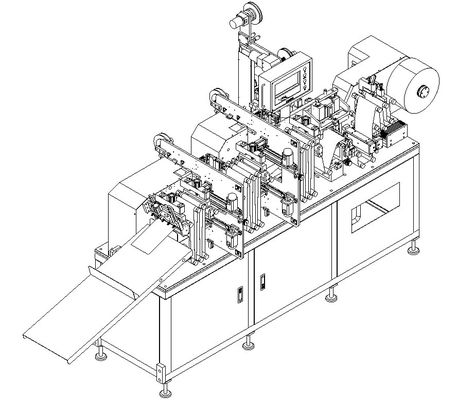

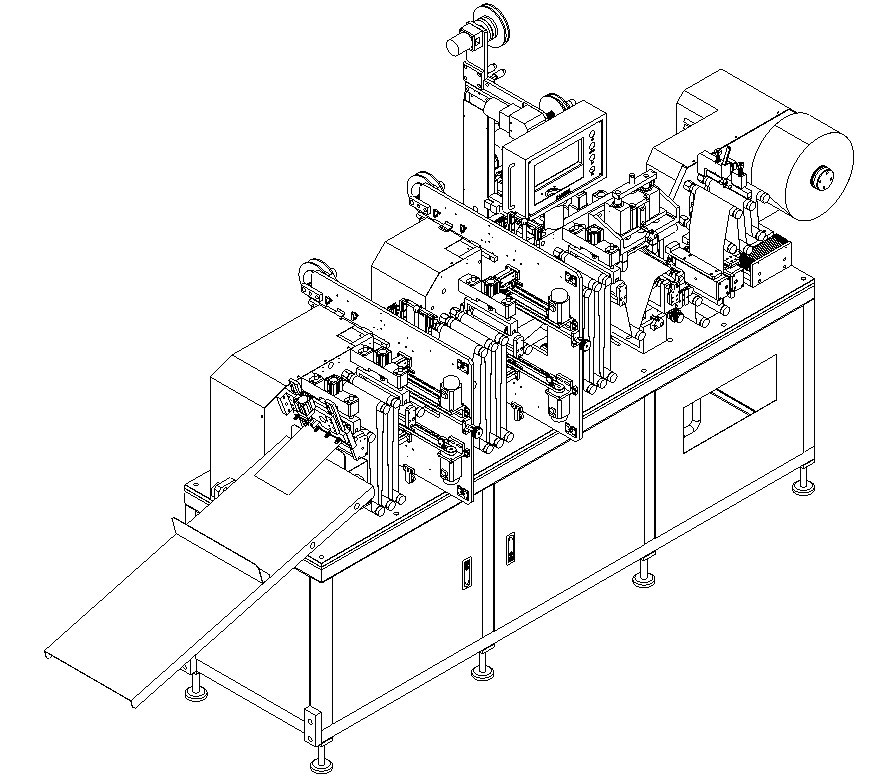

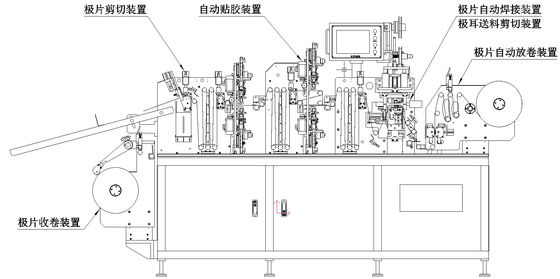

This equipment DYG - 145 - b is negative pole ear automatic welding machine is mainly suitable for lithium ion batteries separated the positive/negative piece of continuous welding pole ear, protection tape, fixed-length cutting or winding, this machine is mainly composed of a piece of paper and the action mechanism, pole ear welding, plate buffer device, pole piece stick tape device, a piece of dust removal device, plate shear device or winding device, the machine is a high degree of automation, high production efficiency, good consistency.
I. technical functions of the equipment:
1. This machine is mainly used for automatic welding of lithium ion battery electrode pieces;
2. Glue the front side and the back side after welding the pole ear and the pole piece;
3. The machine adopts PLC control, the realization of a plastic bags, shear, positive and negative plate welding, stick gum, shear or winding automation, save a lot of manpower, the pole piece in the process of production for injury rate reduce greatly , dedicated to 18650 batteries, aluminum shell, flexible packaging battery welding machine, welding of high efficiency and achieve a upper and lower stick glue;
4. Gap cutting can be carried out after pole welding and taping for semi-automatic winding machine;
5. This machine has a high degree of automation in the production of pole slices, which is composed of rolling continuous pole slices and dividing continuous pole slices into strips.
Equipment supporting: this set of equipment consists of pole ear cutting and gluing machine, pole ear automatic welding machine main engine and ultrasonic welding machine, upper and lower gluing device, deviation correction system and electrical control system.
Ii. Main functions:
1. For the packing tape before welding (according to the user's requirements), cut the length of the pole lug;
2. Automatic welding at the gap of pole pieces, which can realize the welding of single pole lug and multiple pole lug;
3. The lamination function at the pole lug, two pieces of protective tape (negative plate) or four pieces of protective tape (positive plate) can be pasted on the pole lug, which can be customized according to the user's requirements;
4. Automatic cutting or rewinding of pole pieces.
5. Supporting equipment: 1 positive and 1 negative film producer.
Equipment parameter list
| 2, | 4, | 6, | |
| Length × width × height (mm) | 3000*1200*1700 | 3500*1200*1700 | 4000*1200*1700 |
| Total equipment power | six kw | Material 7kw | Material 8kw |
| Total capacity of equipment | The material of 0.2 m3 / min | The material of 0.3 m3 / min | The material of 0.4 m3 / min |
Iv. Technical parameters:
| Pole ear adhesive shears part |
1. Shear length of the metal band: 20 ~ 45mm; (size and specifications provided by the user) 2. Metal band width: 3 ~ 6mm; 3. Belt width: 5 ~ 12 mm(3 ~ 6mm); 4. Shear length error of the metal band: ±0.25 mm; 5. Adhesive tape paste position error: ± 0.5mm; 6. Polar ear cutting burr: ≤±0.025mm. |
| Automatic electrode welding part |
1. Width of pole slice ≤80mm; 2. Rectification control precision of pole slice: ≤±0.2mm; 3. pole painting, painting, quickly wear the belt; 4. The gap tracking welding of pole pieces, the positive electrode adopts 25×3 strip welding, the negative electrode 3×3 four-point welding; 5. Production efficiency: 20-32ppm (18650 two rubber monopole ears), the specific production efficiency is related to the length of the pole piece, the gap width and the specific process; 6. The automatic laminating function at the pole position realizes automatic laminating, and the laminating adopts simplex double bread glue; 7, pole adhesive: two-way adhesive, position can be set. |
| Plate shear |
1. Shear length error of pole sheet ±0.2 mm;
2. Pole shear burr : ≤ 0.015mm; |
V. equipment performance:
1) high equipment precision, low failure rate, high product pass rate;
2) it can realize the welding function of unipolar ear and multipolar ear/pole ear with small glue/moving welding;
3) it has the automatic compensation function of pole length error and pole snaking error;
4) the machine contains pole brush powder and dust collection device;
5) pole film can be customized with two or four pieces of protective tape, to meet customers' different technological requirements of the customized producer function;
6) pole pieces can be directly cut and collected automatically.
cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
