3KW Various Types Of Battery Pole Piece CCD Quality Detector
1.Design requirements of the quality inspection machine for battery electrode:
1.1. This equipment is suitable for lithium batteries, lithium iron phosphate batteries, lithium iron batteries, nickel cadmium battery, nickel zinc battery, nickel iron batteries, super capacitors and other new energy battery pole piece's surface quality detection, using CCD imaging principle, the battery pole in the powder, scratch, crack, surface quality has a problem such as sampling sheet selected, qualified products collected material in the box.
1.2. Capacity and process parameters of battery pole piece quality inspection machine: pole plate production speed 4 pieces/min adjustable

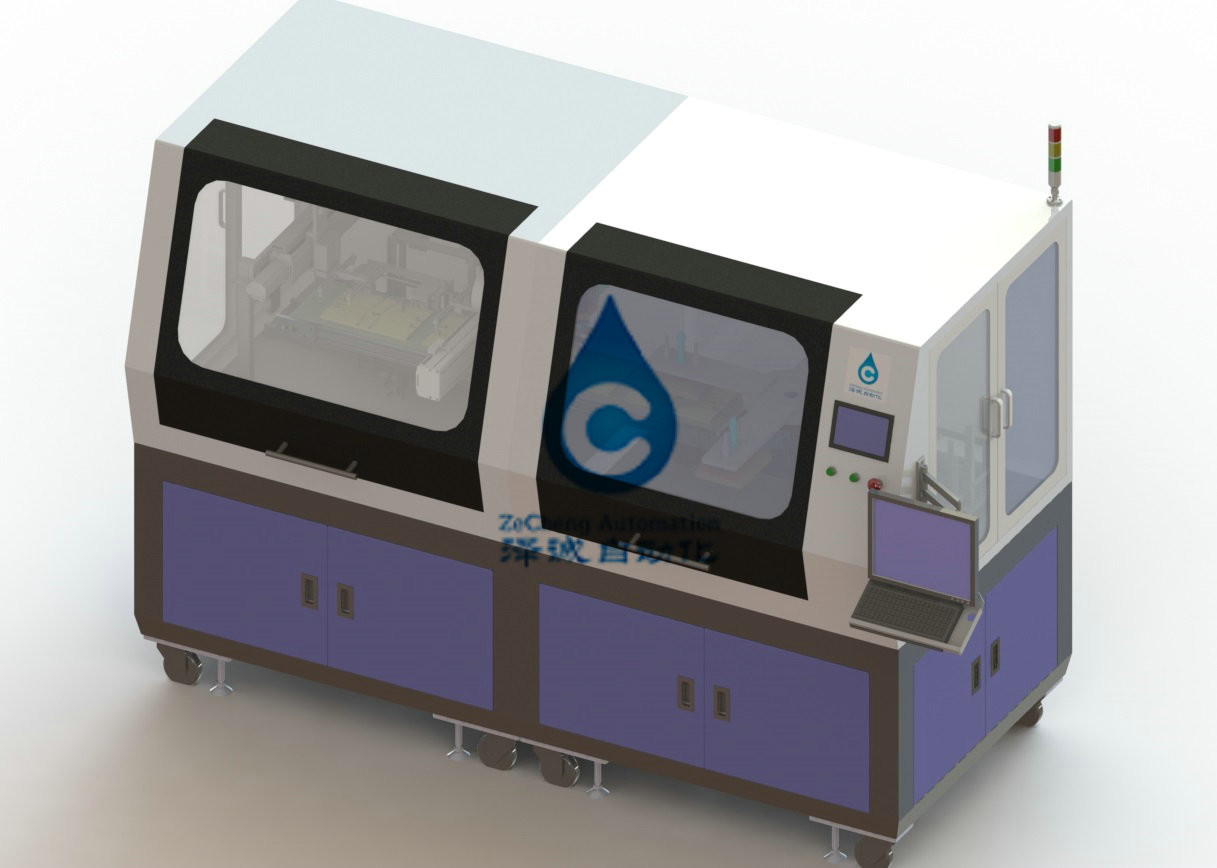

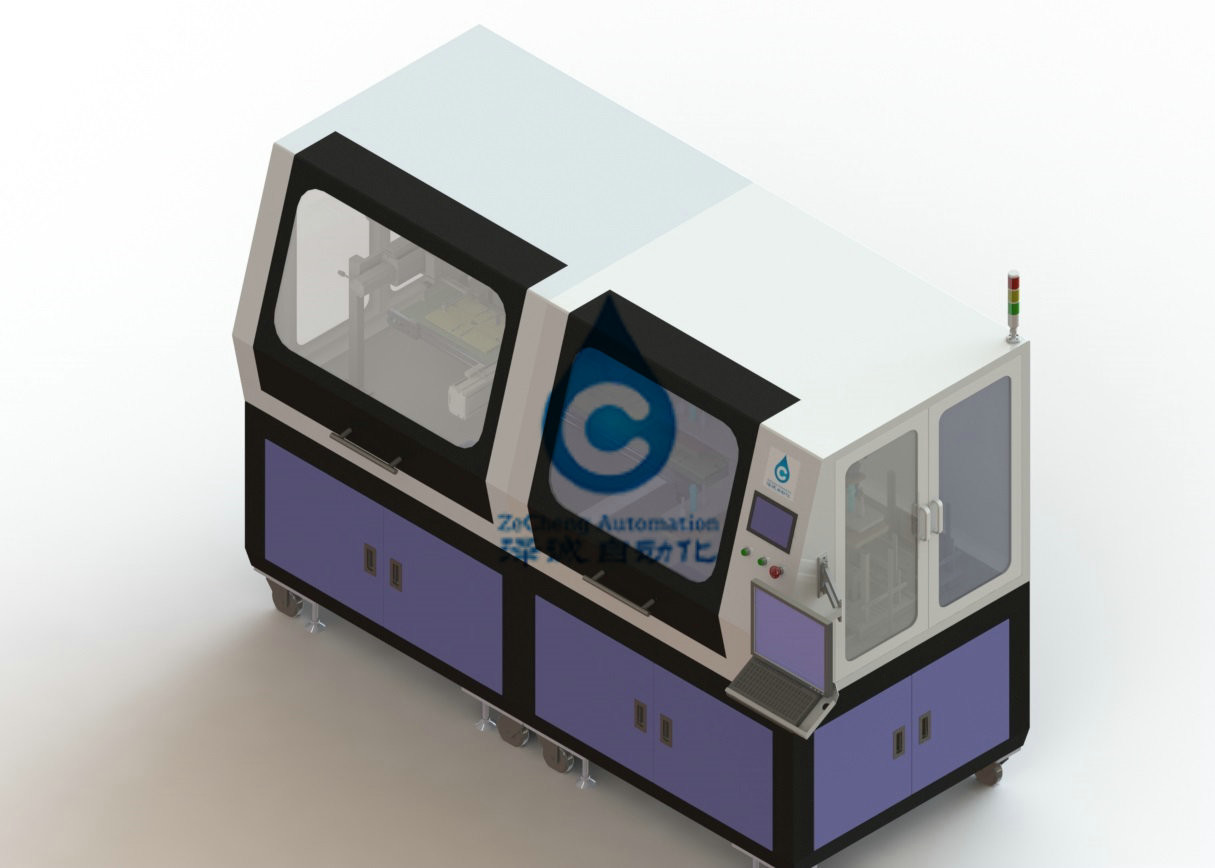

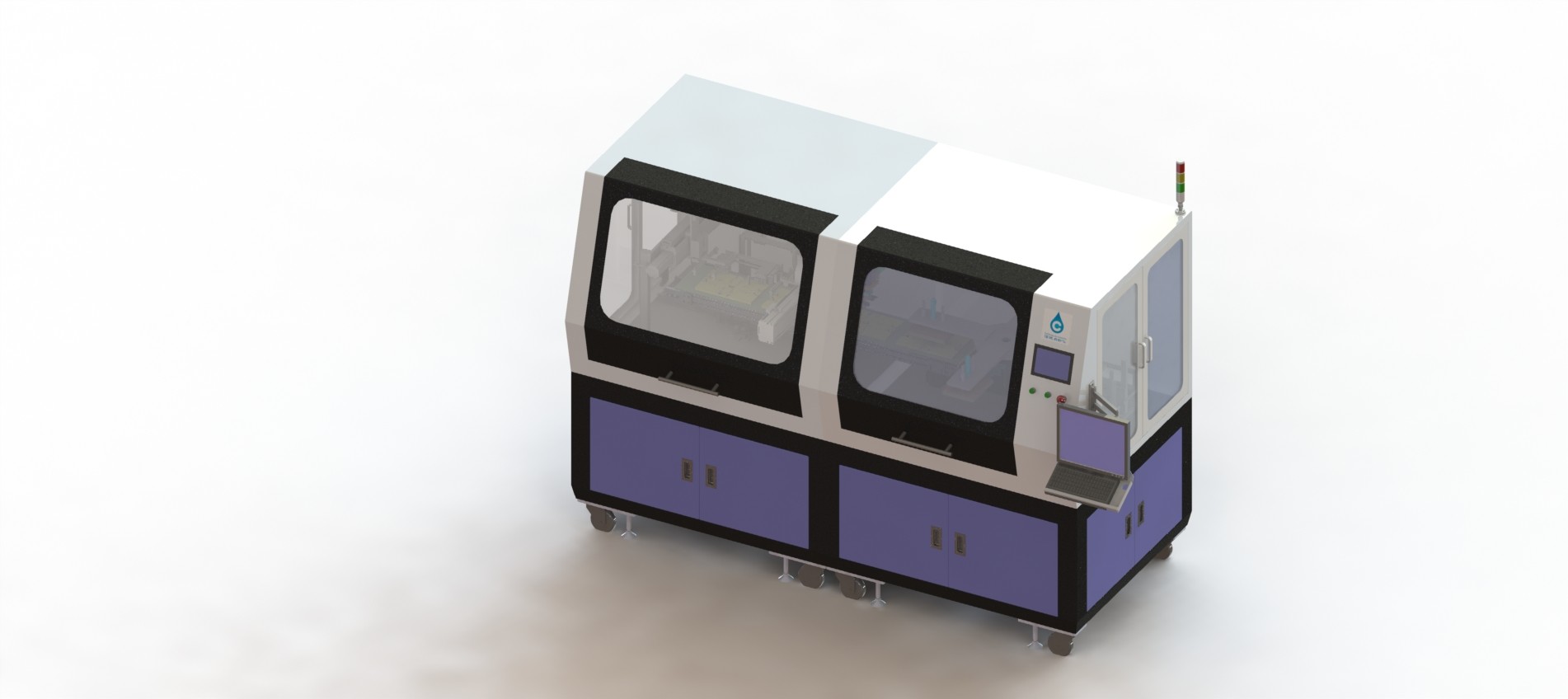

1.3. Equipment diagram
2. Equipment technical parameters
|
Machine specifications Item |
ZCCF02A |
| vacuum | ≤-88KPa |
| Total power(kw) | AC220V,50HZ 3KW |
| Normal operating power(kw) | AC220V,50HZ 2KW |
| The weight | 1.5T |
| Device rotation rate | 95% |
| Equipment pass rate | 99.5% |
3. Main equipment components
This equipment mainly USES CCD imaging principle to take photos on the surface of the pole, and compares it with the standard pole to judge whether it is qualified or not.When there is no pole, the material box can be automatically switched. The manipulator sucks up the pole sheet from the material box and turns it 90 degrees. CCD detects the bottom of the pole sheet and turns it 90 degrees.Qualified products continue to move on the conveyor belt to the above detection station, after the detection automatically sent to the discharging station, qualified products into the material box, unqualified products into the waste box.

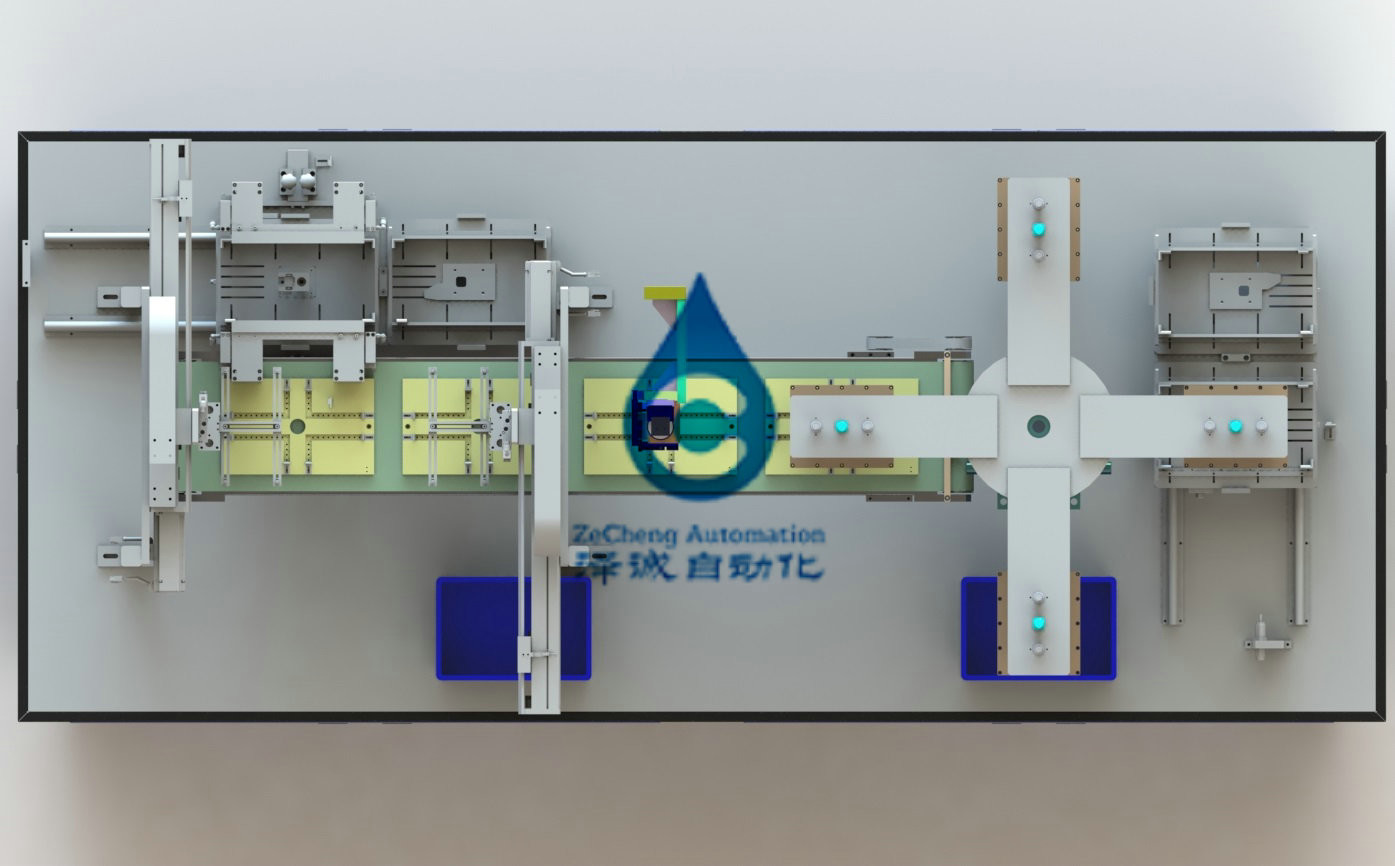

3.1 Rotary feeding manipulator system: using precision cam divider for 4-station rotation, 1-station pole piece feeding, 2-station CCD detection, 3-station put qualified products on the conveyor belt fixture, 4-station Non-conforming products are placed in the waste box.
3.2Conveyor belt system: The servo motor drives the conveyor belt to move the fixed distance, and the conveyor belt is equipped with a clamp, which can effectively locate the pole pieces.
3.3Unloading manipulator system: Servo motor or rodless cylinder drives the suction cup manipulator to move on the guide rail, automatically sucks up the pole piece and puts it into the corresponding material box.
3.4Upper cover system: It adopts sheet metal welding structure, beautiful in appearance, and adopts unique sealing structure design, which can effectively prevent dust from falling into the equipment.
4. Environmental requirements
Please provide the following energy medium
4.1 the power supply
4.1.1 voltage AC220V± 10%
4.1.2 frequency 50 hz + 1 hz
4.2. Temperature: 5-35℃Storage temperature: 0-40℃
4.3. Air source: 0.4-0.6mpa
4.4 humidity 30-80% but should not dew.
4.5 there is no corrosive gas, liquid or explosive gas on site
4.6 equipment color requirements: according to the color plate or color number provided by party a, the computer is white.
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
