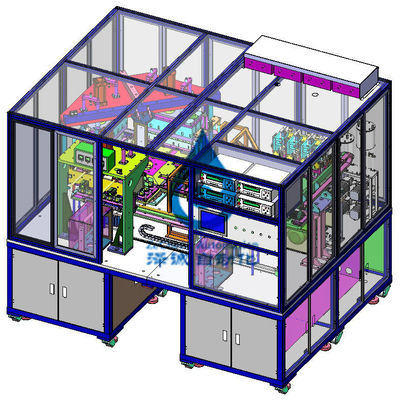

High Speed Digital Bluetooth Polymer Battery Injector auto Batteries Production Line
1.equipment introduction
1.1,The device is suitable for short-circuit test of bluetooth flexible packaging battery, liquid injection, standing, sealing and other production processes.
1.2,The machine shall be installed in the drying room for production operation, manual feeding and manual feeding.
1.3,3. Main functions of this machine:
1.3.1) manual scanning and feeding
1.3.2 short circuit test before liquid injection
1.3.3) computer management of product data
1.3.4) the battery is placed in vacuum after injection
2. Adapt to product specifications
| Model | W (mm) | L (mm) | H |
| ZEAA07A | 12-40 | 15-60 | 4-15 |
3,Main parameters of the equipment
1.Appearance reference size: approx. 2600(L)*2000(W)*2250mm(H), weight: approx. 1000KG.
2. Third-party equipment to be configured:Liquid injection pump: 4 sets (electric liquid injection pump);Injection accuracy ±0.25%.The maximum flow rate is 10mL/s.Short circuit tester: four USES Yangtze YD9820A insulation resistance tester, resistance measurement range: 1 x 1012 x 103 Ω - 1 Ω, resistance measurement accuracy: < 10 g Ω plus or minus 3% plus or minus 3 words, or 10 g Ω plus or minus 8% plus or minus 3 words.
3.The data of pre-injection short-circuit test and post-injection short-circuit test can be compared on the configured computer.
4. Equipment capacity: about 15PPM, depending on the process flow, when the total standing time of the battery is 3 minutes.
5.Vacuum setting: #1 cavity: -60kpa, #2 cavity: -80kpa.
6.Vacuum package setting: package vacuum: -80~85KPa, package temperature: maximum 250 C, package time: no more than 6 seconds, head width: 6~8MM.The unsealed area of the battery packaging edge from the opening shall not exceed 5MM.
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
