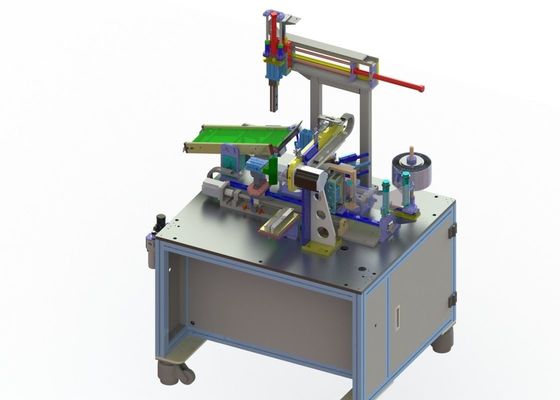

Semi Automatic Aluminum Plastic Film Forming Machine For Laboratory Battery
1. The profile
The equipment USES the principle of gas-liquid supercharging to realize the output required for stamping forming, so as to convert the smaller air pressure into the larger hydraulic output, so as to drive the die to form the aluminum film
Characteristics -
-- manual feeding and automatic stamping.
-- high efficiency: 10PPM
-- low operating costs
The equipment has a high degree of automation and simple manual operation. One worker can operate 2-3 sets of equipment at the same time. .
2.. Constitute a
The composition is shown below
| The serial number | System composition | The system configuration | The number of |
| 1 | Rack system | 1 set of | |
| Welded skeleton construction | 1 | ||
| Substrate (plate plating) | 2 | ||
| 4 | Tensile system | 2 sets of | |
| Gas-liquid booster cylinder | 2 | ||
| Stretching mold | 2 | ||
| 5 | Cut off the system | 5 | |
| cylinder | 5 | ||
| Cut off the mold | 5 | ||
| 6 | Safety protection system | 1 | |
| Safety light curtain | 2 | ||
| Door protection | |||
| 7 | The operating system | 1 set of | |
| Touch screen - | 1 | ||
| 8 | Control system | 1 set of | |
| PLC of mitsubishi - | 1 |
3. To adapt to the specifications
3.1 adaptive objectsThe battery size
| model | W width (mm) |
L length (mm)
|
The thickness of the H |
| ZFD01 | 40-100 | 80-200 | 5-20 |
3.2 technical parameters of the equipment
|
Machine specifications project |
ZLA01A | |
| Technical parameters | Efficiency (PPM) | 10 |
| Fixture width adjustable range | Adjustable or replacement, reference to adapt to the battery model | |
| Auxiliary time (S) | 2-4(transposition time) | |
| Working pressure (T) | 5 | |
| Temperature control accuracy | +/-1℃ | |
| Compressed air system | Air source provided by party a | |
| Total power (kw) | 2 | |
| Normal operating power (kw) | 1.5 | |
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
