Fully Automatic X Ray Detector For Multi Layer Winding Power Battery Detection


1.1 application fields:


The equipment is mainly used in the online automatic detection of multi-layer winding power battery in lithium power industry.


1.2 introduction of equipment functions and principles:


The device emits x-rays through an X-ray generator, penetrates the inside of the battery, and is picked up by a flat panel detector that takes images and photographs. Through the computer related software to the image processing and automatic analysis and judgment. Identify good and bad products, and pick out the bad products, the front and rear end of the equipment can be connected with the production line.


1.3 equipment operation flow:


1.3.1 the main logistics line of the customer is divided into two pull-in materials, which are transported to the test area through the conveyor belt; Accurately locate the test location through the positioning mechanism of the test point in the test area;


1.3.2 carry out automatic inspection and judgment through computer related software. The discharging end is automatically sorted out defective products by a mechanical hand and placed in the designated position. The OK battery flows away through the assembly line.


1.3.3 the incoming material of the product is fed with A/B, and the feeding manipulator grabs two pallets (one A and one B) at A time to pull the belt of the equipment. After the detection is completed, the feeding manipulator grabs two pallets at A time and drops the material at the same time. Each pallet is a single cell, and the overall size is one.


1.3.4 the X-ray layout is u-shaped, and the connection between the upper and lower materials with the main pull belt is the manipulator, while the upper and lower materials manipulator is designed and produced by the professional technology.


1.3.5 with qr code reading function, scanning gun sr-751; Bind with all measurements and pictures, save in Excel format.


1.3.6 NG product unified collection (pallet and battery) shall be manually taken out and placed in the designated position, and at least 6 pieces shall be stored.


1.3.7 the feeding direction of the production line is from right to left, and the battery pole ear is perpendicular to the customer's main logistics line.


1.4 equipment composition


1.4.1 rack system


The device has a square welding frame, and the substrate is steel plate with a thickness of 15-30mm.


The color of rack and seal plate is computer warm gray 1C (or according to customer color card).


1. 4.2 equipment parts


The steel surface of the whole machine is plated with chromium, and the surface of aluminum parts is treated with hard oxidation.


1.4.3 equipment conveying system


The equipment feeding conveyor belt and discharging conveyor pull belt are connected with the main pull belt (the above final design 3D shall prevail).




1.4.4 overall structure:

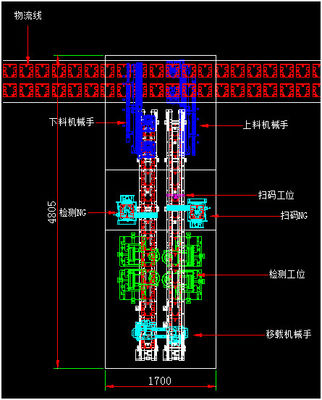

Overall size (length * width * height) : 4805mm×1700mm ×1800mm (there is a small difference in actual size)


1.5 main components:


1.5.1 micro-focus X-ray generator and control system.


1.5.2 X-ray detection and imaging system.


1.5.3 X-ray protection box.


1.5.4 PC for control and image processing software, measurement and judgment software.


1.5.5 radiation-proof sheet metal, detection system, conveyor belt, sorting manipulator, NG cache device, loading and unloading manipulator.


Ii. Incoming materials and product specifications suitable for the equipment:


2.1 testable cell specifications:

Height of the battery 148mm
The width of the battery 100-200mm
The thickness of the battery 15mm





2.2 inspection method: automatically check and determine the GAP between the cathode and anode on the upper and lower part of the bare cell (negative electrode package positive electrode).


2.2.1 test the four corners of the cell, at the four corners of A, B, C and D of the bare cell.


2.2.2 the displacement distance between the angular cathode and the anode of the bare cell can be detected, and the data between each layer can be output on the display and the maximum, minimum and average values can be statistically analyzed. The number of inspection object layers (ROI) can be set according to the requirements, the maximum is 40 layers (iron lithium material ≤ 40 layers, three material ≤ 30 layers; Take the sample provided by the buyer as the reference standard.


2.3 operation mode: automatic measurement, automatic judgment of good and bad products according to the prescribed standards, and automatic sorting of bad products.


Iii. Equipment inspection capability


3.1 determination accuracy: repetition accuracy S=±60 m or less (measured in standard tablets).


3.2 check mode


3.2.1 full automatic: the battery shall be automatically supplied and transported for automatic inspection, and the OK and defective products shall be automatically separated and discharged according to the result determined by the procedure according to different undesirable categories.


3.2.2 semi-automatic: automatic inspection shall be conducted for the automatic supply and delivery of batteries. However, the inspection shall determine the following treatment methods:


< semi-automatic 1> OK/NG by manual determination, no manual intervention (determination), the equipment in standby state;


< semi-automatic 2> OK/NG machine automatic recognition. When determining OK or NG, the machine can set standby for manual intervention, standby time optional (minimum 1 second, maximum unlimited). In standby mode, if there is no manual intervention, the machine will automatically process according to the judgment result.


3.2.3 manual: all the movements of the mechanism can be moved by the player;


3.3 main function description of the equipment:

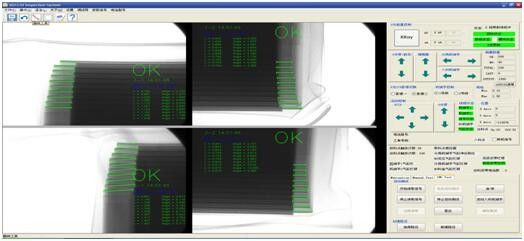

3.4 real-time X-ray image detection;


3.5 linear distance measurement can be carried out;


3.6 with the function of multi-group data storage, the detection of different types of products can be realized simply by referring to the corresponding procedures, and the number of automatic detection programs can be saved over 60;


3.7 detection pictures and test data of multiple parts of the same battery shall be displayed in the same screen for the convenience of manual judgment

3.8 test bench height: 750±10 mm above the ground.


3.9 safety measures and countermeasures:


3.9.1 X-ray automatically closes when the equipment maintenance door and window are opened.


3.9.2 turn off X-ray automatically when there is no incoming material for 5 minutes continuously (the time can be set by the user).


3.9.3 use the radiation indicator and use the status indicator to show the working status of X-ray.


3.9.4 X ray leakage ≤ 1.0v /h (using a radiation dose tester certified by a third party).


3.10 equipment operating environment:


3.10.1 power demand: AC220V/10A, 4000W


3.10.2 temperature: 25℃±3 ℃.


3.10.3 compressed air pressure: 0.5 ~ 0.7mpa (5-7kgf/cm2), flow: 15L/min.


3.10.4 relative humidity: ≤ 60% RH (no condensation).


3.10.5 weight of equipment: 3000KG.
