Flexible Battery Automatic Production Line Soft Pack Power Battery Series
Soft pack power battery series:
I. lithium battery production line:

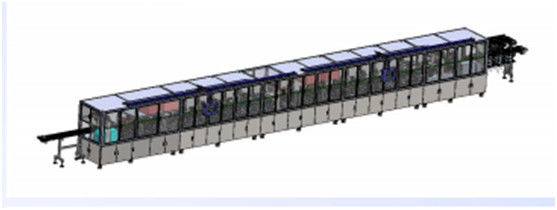

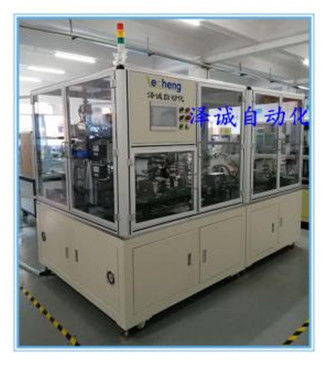

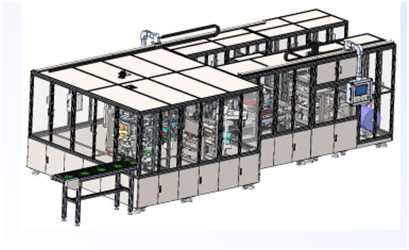

1. Flexible battery automatic production line
1.1. Design requirements of complete equipment for lithium ion battery production
1.1.1 production capacity requirements:1.1.1 production capacity requirements:
| number | Capacity requirement (per minute only) | Working hours/day |
| 1 | 8PPM | 20 hours |
1.1.2. The whole line is fully automatic production, and all stations realize automatic feeding and unloading of the manipulator.
1.1.3. Features:
1.1.3.1 automatic feeding, automatic weighing, automatic filtering of iron powder, automatic mixing and mixing, to achieve dust-free production.
1.1.3.2 coating paste automatic feeding, automatic coating, baking.
1.1.3.3. Hardware mold cutting and lamination with high speed.
1.1.3.4 lamination process.
1.1.3.5, the battery cell is automatically completed in all processes after lamination, and the equipment in all processes has its own detection function, effectively solving the quality control problems of the power battery product line. With the function of data analysis, the format of the database is consistent with the requirements of the central control system of the buyer. During the whole production process, the electrode and the cell are not touched manually.
1.1.3.6 each single machine is equipped with an independent PLC and touch screen. The entire production line can be operated by a single machine or the whole line can be automatically produced. The single machine will start to move after the detection of the electric cell, and the single machine will not move after the detection sensor is cancelled.
1.1.3.7 gripper carrier is adopted for battery transportation to effectively avoid friction pollution caused by flat belt transmission.
1.1.3.8, the model is easy to replace, the fixture carrier can be adjusted according to the need, save cost.
1.2 the production system meets the following material specifications:
| model | W width (mm) | L height (mm) pole column | H thickness (mm) |
| ZDAD01A | 130 | 185 | 6-12 |
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
