Technical Agreement Battery Production Equipment For Capacitor Sealing Machine


A summary,

The cylindrical aluminum shell with electric cell is uniformly sealed automatically and the belt waist process is carried out. The equipment can seal the capacitor, and the sealing height and depth can be set.

Ii. Production process requirements

1. Product process:

1.1. Capacity: ≥40ppm

1.2. Product requirements: there is no crack or scratch in the seal, no aluminum scrap, and the mouth shape is round, there is no scratch or deformation of the shell body, and the sealing Angle matches the upper cover Angle.

1.3. Do not damage the pole group and cover inside the shell, and do not break the seal ring.

1.4. Suitable for ganizational 8*25, ganizational 10*25, ganizational 10*40. The product shall be controlled at 8±0.05mm in diameter after sealing.

1.5. The height variation is in the range of +/-0.1

1.6. Use multi-station rotary table for feeding.

1.8. Pulse number cannot be used in all programs to show the position of the servo motor, to convert to mm, such as the position of the rising motor, the position of the pre-seal, etc.

2. Product size:

2.1. Size and Angle of seal of upper cover:

2.2. Shape and size of product bottom:

2.2.1 height and size of the product: adjust the height of the base to adapt to the height changes of different models

Iii. Equipment requirements

3.1. Sealing position, sealing stroke, feed speed and feed position can be adjusted. After the rotation driven by the CAM splitter is completed, the feeding fixture is concentric with the sealing system.

3.2. The sealing tool can be replaced simply, and it can be used for products of different sizes by changing tooling

3.3. PLC controls each cyclic action: workpiece clamping, feed sealing, return, discharge.

3.4. The detailed operation interface is touch screen

3.5. Separate control box for the electrical part and separate the electrical box from the electromagnetic pneumatic part

3.6. The whole machine should be equipped with dust proof cover, which is designed reasonably for future maintenance and repair

3.7. The operation interface is required to be in Chinese

3.8. Electric box and pneumatic control box must be locked

3.9. The sealing machine should add a baffle at the sealing knife to prevent the operator from being hurt

3.10 the outlet of the power supply and air source of the equipment shall be located at the right rear corner of the lower part of the equipment. The air source shall be equipped with a pressure regulating valve and a barometer.

3.11. Device color: the main color of the device is computer white, and the color plate number is 3a530-5707; The color of the control box is blue and green.

The color plate number is hp-3597

3.12. The three-color indicator light in the upper left corner of the device can show the status of the device

3.13. Equipment configuration requirements: the touch screen of the equipment shall be kunlun tongtai brand, and the PLC shall be mitsubishi or panasonic brand. Pneumatic components using SMC

3.14 when clamping the product, the feeding fixture should prevent the product from rotating during sealing.

Iv. Organization introduction

4.1 frame mechanism: 40X40 square welding forming, surface baking paint, color in accordance with customer requirements, the substrate using steel plate chrome plating. The frame should be strong, especially the stressed parts (such as the fixed sealing system and the support column and bottom plate of the motor, jacking mechanism, etc.). The enclosures are strongly constructed.

4.2 sealing system: the sealing mold adopts tungsten steel imported from Taiwan, with smooth surface and long service life.

4.3 jacking system: the mechanism drives the jacking mechanism to rise for sealing.

4.4. Rotation system: the motor drives the turntable to rotate, and the station is switched with adjustable speed.

4.5 feeding system: pallet feeding, the capacitor can be manually placed on the pallet for separate feeding.

4.6. Control system: mitsubishi PLC control system, touch screen operation.

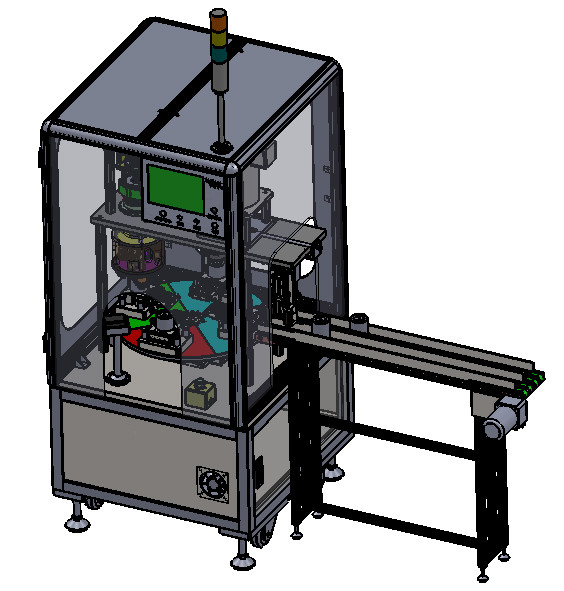

4.7. Machine structure:

4.9. List of standard parts:

The serial number Equipment components Part name manufacturer note
1 Frame body The base plate Ze cheng The surface is plated with hard chromium
rack Ze cheng Rectangular tube welding
2 The sealing mechanism The motor

Attached random data


3 Top institutions The motor
4 Rotating mechanism



CAM splitter

5   Solenoid valve Japan SMC
6   PLC Japan's mitsubishi

Attached random data


7   Push button switch Imported components
8   Touch screen Kunlun tong tai, display control

Attached random data


10   Other spare parts Product quality level is not lower than national standard


Working conditions of equipment


5.1. Power supply: single-phase 220V, voltage fluctuation range: ±10%


5.2. Ambient temperature: 10-35℃


5.3. Site free of corrosive and explosive gases and liquids


5.4. Air source: the pressure of compressed air is greater than 0.6mpa


Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
