Lithium Battery Manufacturing Equipment Ultracapacitor Dispensing Machine

Negotiation, email communication
Lithium Battery Manufacturing Equipment Ultracapacitor Dispensing Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1000KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

battery assembly equipment


battery pack assembly equipment

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-06
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Lithium Battery Manufacturing Equipment Ultracapacitor Dispensing Machine


The equipment is used for electrolyte injection of demander ultracapacitor and automatic data recording.


2. Raw materials and components


1.1 applicable specifications of the injection machine: 35/46(two heights of 46) series; Based on 35


2.1.1 diameter: 35mm; L = 40 mm to 100 mm


2.1.2 liquid injection hole: 3.3mm;


2.1.3 electrolyte: solvent acetonitrile plus electrolytic salt.


2.2. Rubber plug size: 3.3mm, material EPDM.


2.3. Weight of the product before liquid injection: Max350g;


3. Process requirements and parameters


3.1. Vacuum injection method is adopted, and the process is as follows: vacuum extraction of capacitor → vacuum degree reaches 50Pa→ electrolyte injection → standing


3.2. Liquid injection volume 0-200g can be adjusted.


3.3. Liquid injection accuracy ±1g


3.4. Liquid injection efficiency: ≥6ppm (designed according to the absorption time within 2min, with 3200 as the acceptance standard)


4. Equipment requirements


4.1. It has the functions of vacuum pumping, electrolyte quantitative injection and pressure rapid injection, among which the pressure rapid injection function can be selected and the pressure can be set


4.2. The minimum vacuum pipe diameter shall not be less than 12mm, and the main pipe shall not be less than 25mm


4.3. The vacuum tube is only in contact with the product, not the electrolyte part.


4.4. Since the electrolyte is easy to crystallize, after each injection, the whole injection system will be cleaned with high-pressure gas automatically.


4.5. The overall sealing performance of the equipment is good, and the leakage rate is required to be ≤1×10-6 mbar*l/s. The sealing effect is evaluated by the actual liquid injection effect.

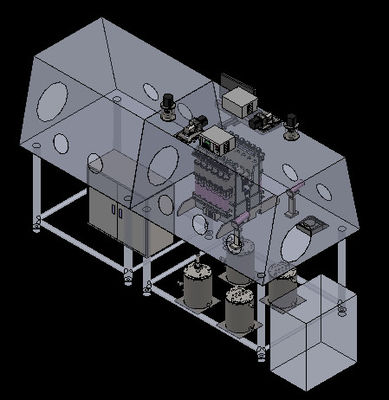

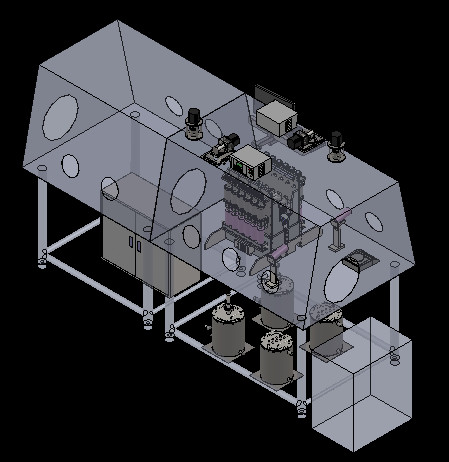

4.6. The equipment shall be operated in the glove box. The height of the glove box shall be subject to the actual space.


4.7. Operation requirements: equipment manual feeding, alignment of liquid injection hole, automatic vacuums, liquid injection, manual feeding after liquid injection.


4.7.1 equipment manual feeding and alignment of liquid injection hole: the operation process adopts tooling positioning, and the capacitor appearance and liquid injection hole cannot be damaged

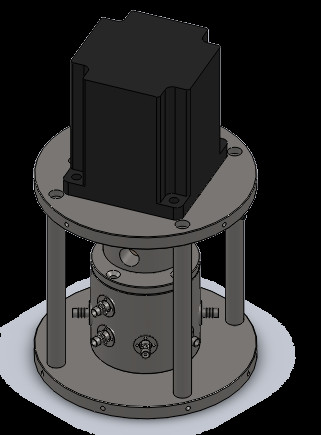

4.7.2 automatic vacuum injection: precise metering pump is used for capacitor liquid injection, the liquid injection amount is adjustable from 0 to 200g, and the liquid injection precision is guaranteed to be ±0.5g; the liquid injection system is provided with a liquid storage buffer tank (outside the glove box), the liquid level of the electrolyte is visible, and the pressure is kept constant. The capacity of liquid storage buffer tank shall be no less than 2 liters. the vacuum degree to be reached before liquid injection can be selected, -100-10kpa is optional. no electrolyte shall be sprayed or leaked during liquid injection.


4.7.3 adjustable standing time: in order to reduce the injection time, the device retains the function of pressurized rapid injection.


4.7.4 manual blanking after liquid injection: simple and convenient for loading and unloading


4.7.5 the device has the functions of automatic weighing and reading qr code, which can match the liquid injection volume, double weighing, and can be output to EXCEL and stored. If the second weighing fails to meet the requirements, the device will automatically sound and light alarm and automatically prevent errors. After manual cleaning, the next battery will be weighed and marked with red in EXCEL output.


4.8 other performance requirements


4.8.1 all pneumatic standard parts of the equipment shall use the barometer and vacuum gauge of MPa and KPa in metric system.


4.8.2 reasonable device structure design, station operation shall not affect each other.


4.8.3 during the liquid injection process of the equipment, the electrolyte is not allowed to splash out. The materials used in the equipment must be corrosion resistant to the electrolyte (note: solvent acetonitrile). In particular, the liquid injection area should use transparent corrosion resistant materials.


4.8.4 the appearance of the equipment is clean, beautiful and easy to operate.


4.8.5 the equipment is stable, reliable and easy to maintain and repair.


4.8.6 during the operation of the equipment, defects such as capacitor surface scratches will not be caused.


4.8.7 the vacuum tube part is equipped with electrolyte filter device, which is used to filter electrolyte and protect the vacuum pump.


4.8.8 vacuum pipe connector shall be matched with vacuum pump


4.8.9 reduce electronic components as far as possible in the glove box, and the parts with electric control must have anti-explosion and anti-corrosion protection function


4.8.10 replacement of equipment parts for easy operation in glove box


4.8.11 the device has a three-color indicator light in the upper left corner, which can display the device status


4.8.12 equipment shall be connected with glove box (specific requirements of pipeline, circuit, interface, etc.)


4.8.13 equipment configuration requirements: the touch screen of the equipment shall be kunlun tongtai brand, and the PLC shall be OMRON, mitsubishi or panasonic brand. Pneumatic components using SMC.


5. Introduction of liquid injection


Liquid injection process:


Vi. Introduction of the organization

The serial number


Equipment components Part name manufacturer note

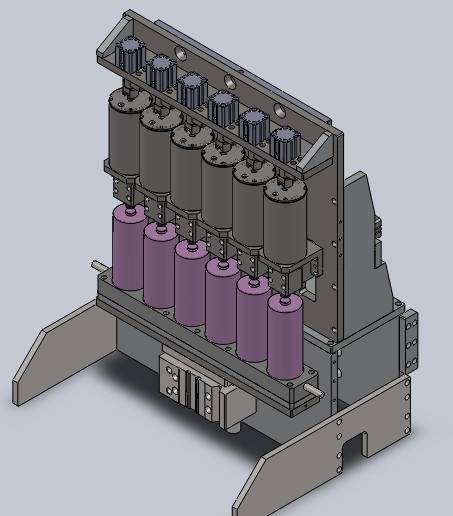

Pour institutions


The motor Japan's mountain club Attached random data
cylinder Japan SMC
2 Weighing mechanism Electronic says PuRuiXun Attached random data
3 Bar code scanning mechanism Bar code machine
4 Injection buffer tank Buffer tank Ze cheng
5 Vacuum system Vacuum pump
6   Solenoid valve The tico
7   PLC Japan omron Attached random data
8   Push button switch Imported components
9   Touch screen Kunlun pass ty Attached random data
10   Other spare parts Product quality level is not lower than national standard


Vii. Working conditions of equipment


7.1 power supply: three-phase five-wire system: single-phase AC220V, voltage fluctuation range: ± 10%;


7.2. Compressed air: 0.4-0.6mpa;


7.3. Ambient temperature: 20-35℃;


7.4. Relative humidity: 30-55% HR;


7.5 there is no corrosive gas, liquid or explosive gas on the site.


Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
