Laboratory Cutting Folding Ironing Machine Of Flexible Packaging Lithium Batteries
I. equipment profile:
1.1 introduction to device functions and principles:
This equipment is mainly used for cutting, folding and ironing of flexible packaging lithium batteries.
Main functions of the equipment: automatic feeding, automatic cutting, automatic folding, automatic blanching, automatic blanking.
1.2 equipment operation flow:
Main flow: the equipment is finished on the four-station turntable after automatic feeding by the assembly line and automatic feeding by the manipulator
Automatic edge cutting, automatic folding and ironing after automatic blanking.

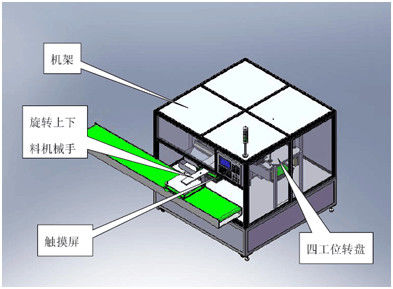

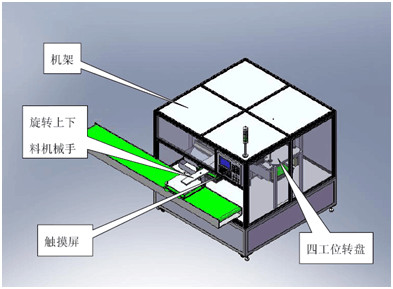

1.3 overall structure (with drawings)
1.4 composition of main components
1.4.1 equipment composition:
1, rotating upper and lower feeding manipulator: grasp the battery using a vacuum sucker, using a rotating cylinder to achieve the rotation of feeding and discharging, up and down movement using a cylinder.
2. Edge cutting mechanism: the edge cutting adopts the cutting method of double edge cutting, the upper and lower knives can be used for repairing and grinding for many times, dovetail groove can be adjusted to the knife, linear guide rail guide, waste materials are easy to collect.
3. Folding and ironing mechanism: the function of folding and ironing can be completed at the same time. The cylinder of bronzing adopts adjustable travel cylinder, and the linear guide rail is guided by opening and closing motion.
4. Shaping mechanism: achieve the final shaping and shaping function of ironing.
2. Incoming materials and product specifications suitable for the equipment
2.1 size and specification of incoming materials
| project | W cell width (mm) | L cell length (mm) | H cell thickness (mm) |
| Size range | 60~110 | 130~180 | 7-12 |
Iii. Technical parameters of the equipment
| sequence | project | parameter |
| 1 | Edge width error | + / - 0.1 mm or less |
| 2 | Hem width | 2-10mm (replace the head) |
| 3 | Blanching time range | 2-5s (adjustable) |
| 4 | Blanching temperature range | 0 ℃, 220 ℃ can be adjusted |
| 5 | Equipment capacity | 8ppm |
| 6 | Qualified rate of equipment products | ≥95% (bad products caused by the machine only) |
| 7 | Equipment failure rate | ≤5% (failure caused by equipment only) |
