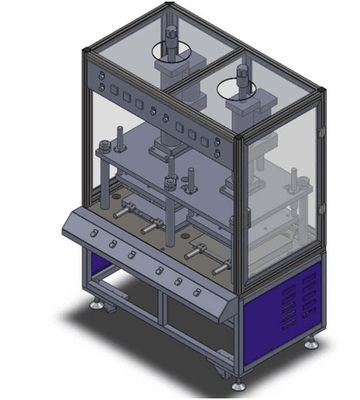

Laboratory Cell Cold And Hot Press Device Lithium Ion Battery Assembly Line
1. The profile
The device is mainly used to flaten the rolled square cell or the square cell after lamination. The pressure and temperature can be adjusted according to the needs.
Characteristics -
-- the battery in each station is pressed flat by gas-liquid booster cylinder, and the pressure can be adjusted. The stepper motor drives the manipulator to move and the battery to move.
-- high efficiency: double station, one station hot press, two stations cold press. Hot press and cold press. 10 PCS/min (the specific efficiency is determined according to the hot pressing and cold pressing time)
-- low operating costs
This equipment automation equipment degree is high, manual operation is simple, a worker can operate 1 equipment at the same time. .
2.. Constitute a
The composition is shown below
| The serial number | System composition | The system configuration | The number of |
| 1 | Rack system | 1 set of | |
| Welded skeleton construction | 1 | ||
| Substrate (plate plating) | 2 | ||
| 2 | Automatic feeding system | 1 set of | |
| Vacuum suction cups | 1 set of | ||
| Stepper motor | 1 | ||
| Synchronous belt wheel | 2 | ||
| 3 | Thermal system | 1 set of | |
| Air - liquid supercharger -- Taiwan jiu li | 1 | ||
| Up-down heating system | 2 | ||
| Temperature controller - omron | 2 | ||
| The heating plate 350 * 350 | 2 | ||
| 4 | Cold pressing system | 1 | |
| Air - liquid supercharger - Taiwan jiu li | 1 | ||
| Water-cooled institutions | 2 | ||
| Water pump system (provided by the customer) | 1 | ||
|
Cooling plate 350 * 350 |
|||
| 5 |
The operating system |
1 set of | |
| Touch screen - | 1 | ||
| 6 | Control system | 1 set of | |
| PLC, omron | 1 | ||
| 7 | Security system | 1 set of | |
| Safety grating | 2 | ||
| Double button start switch | 2 |
3. To adapt to the specifications
3.1 adaptive objects
The battery size
| model | W width (mm) | L length (mm) | The thickness of the H |
| ZFD01 | 40-100(65) | 80-200(130) | 5-20 |
3.2 technical parameters of the equipment
|
Machine specifications project |
ZLA01A | |
| Technical parameters | Efficiency (PPM) | 10 (according to hot pressing and cold pressing time) |
| Fixture width adjustable range | Adjustable or replacement, reference to adapt to the battery model | |
| Auxiliary time (S) | 2-4(vacuum adsorption transposition time) | |
| Working pressure (T) | 3 | |
| Temperature control accuracy | +/-1℃ | |
| Compressed air system | Air source provided by party a | |
| Total power (kw) | 15 | |
| Normal operating power (kw) | 13 | |
Cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
