Aluminum Plastic Film Stamping Forming Equipment Simple Manual Operation
1. The profile
The equipment USES the principle of gas-liquid supercharging to realize the output required for stamping forming, so as to convert the smaller air pressure into the larger hydraulic output, so as to drive the die to form the aluminum film
Characteristics -
-- manual feeding and automatic stamping.
-- high efficiency: 10PPM
-- low operating costs
The equipment has a high degree of automation and simple manual operation. One worker can operate 2-3 sets of equipment at the same time. .
2.. Constitute a

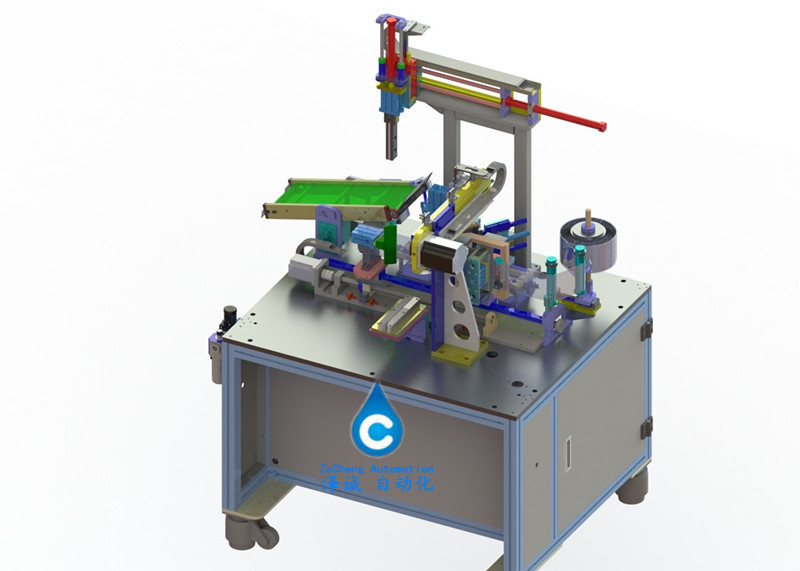

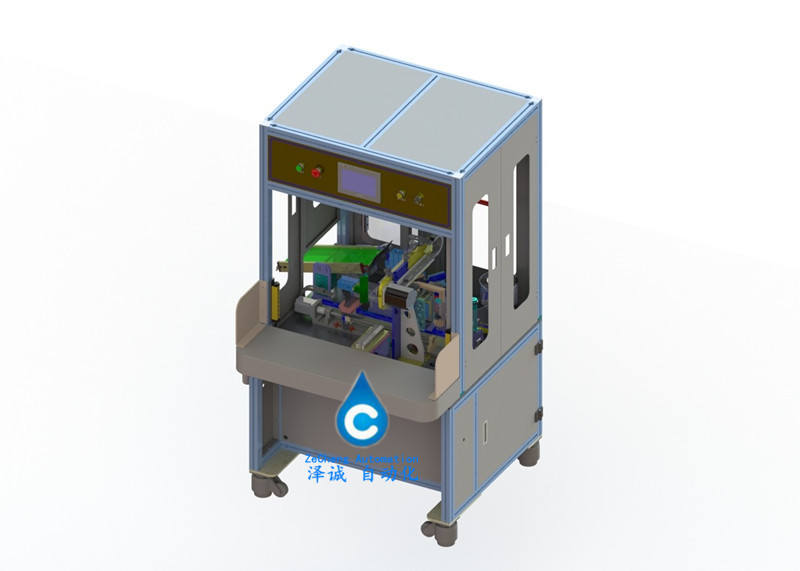

The composition is shown below
The serial number | System composition | The system configuration | The number of |
1 | Rack system | 1 set of | |
Welded skeleton construction | 1 | ||
Substrate (plate plating) | 2 | ||
4 | Tensile system | 2 sets of | |
Gas-liquid booster cylinder | 2 | ||
Stretching mold | 2 | ||
5 | Cut off the system | 5 | |
cylinder | 5 | ||
Cut off the mold | 5 | ||
6 | Safety protection system | 1 | |
Safety light curtain | 2 | ||
Door protection | |||
7 | The operating system | 1 set of | |
Touch screen - | 1 | ||
8 | Control system | 1 set of | |
PLC of mitsubishi - | 1 |
3. To adapt to the specifications
3.1 adaptive objectsThe battery size
model | W width (mm) |
L length (mm)
|
The thickness of the H |
ZFD01 | 40-100 | 80-200 | 5-20 |
3.2 technical parameters of the equipment
Machine specifications project |
ZLA01A | |
Technical parameters | Efficiency (PPM) | 10 |
Fixture width adjustable range | Adjustable or replacement, reference to adapt to the battery model | |
Auxiliary time (S) | 2-4(transposition time) | |
Working pressure (T) | 5 | |
Temperature control accuracy | +/-1℃ | |
Compressed air system | Air source provided by party a | |
Total power (kw) | 2 | |
Normal operating power (kw) | 1.5 |
