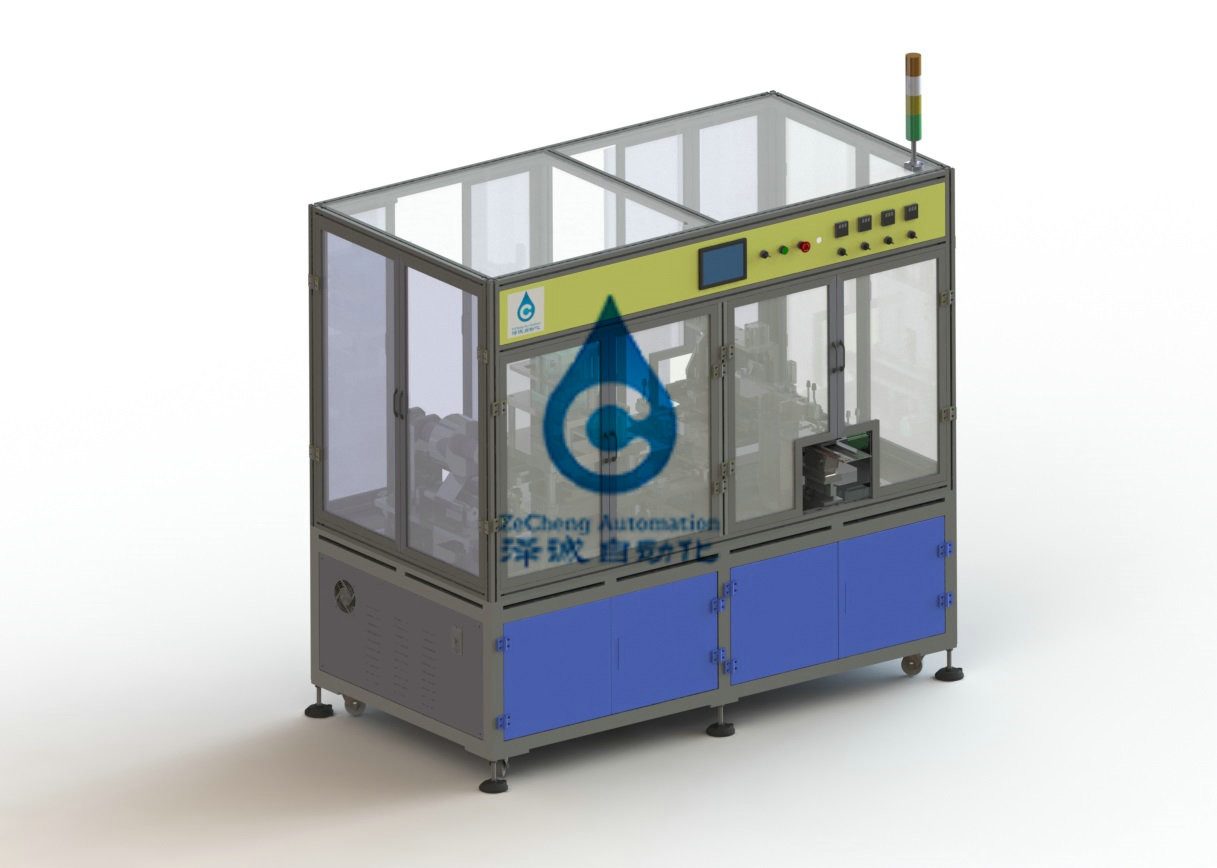

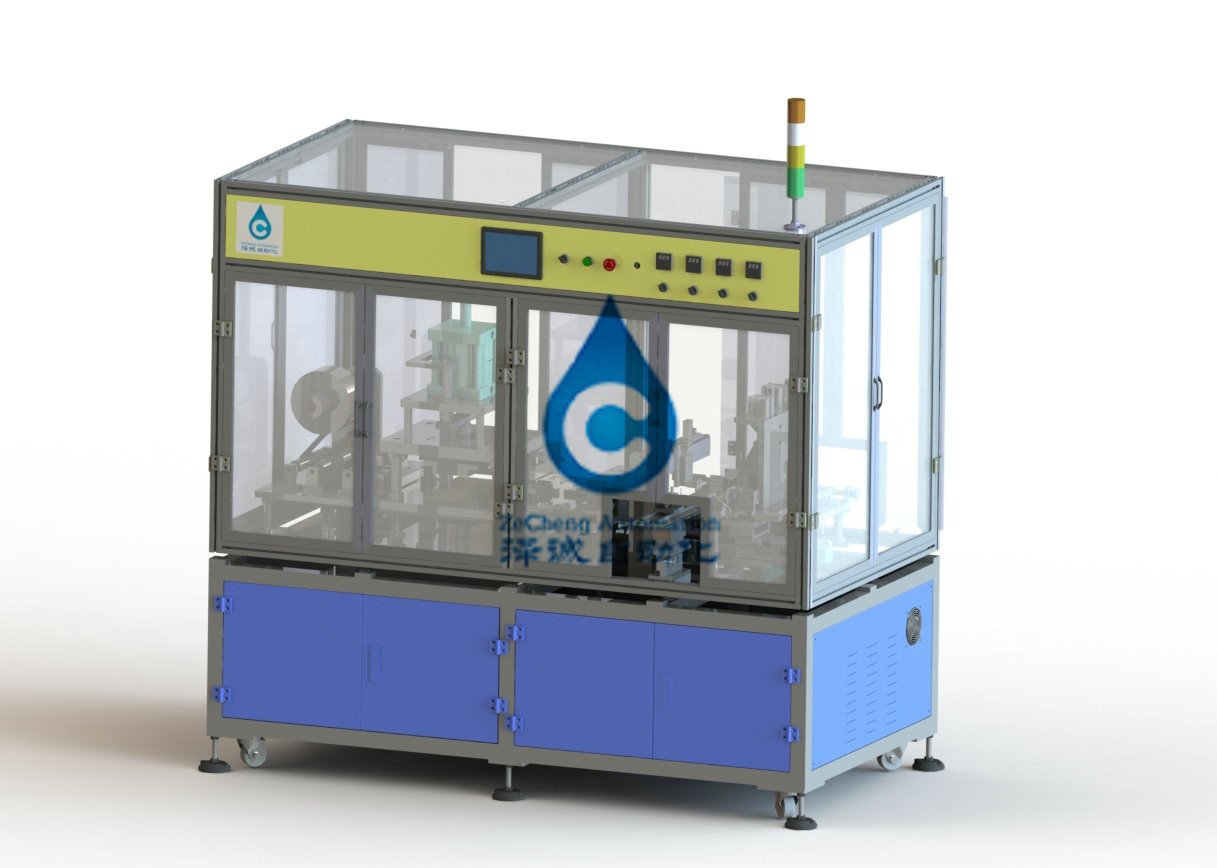

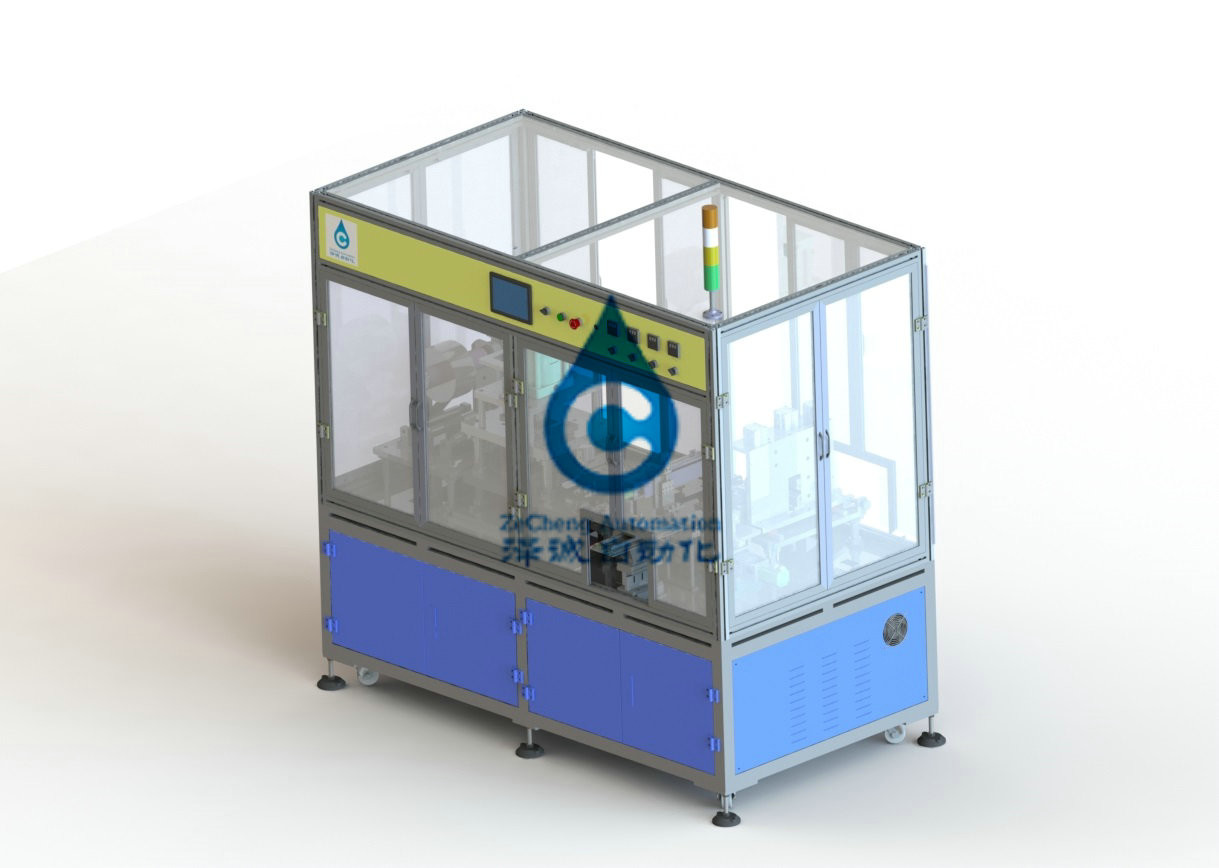

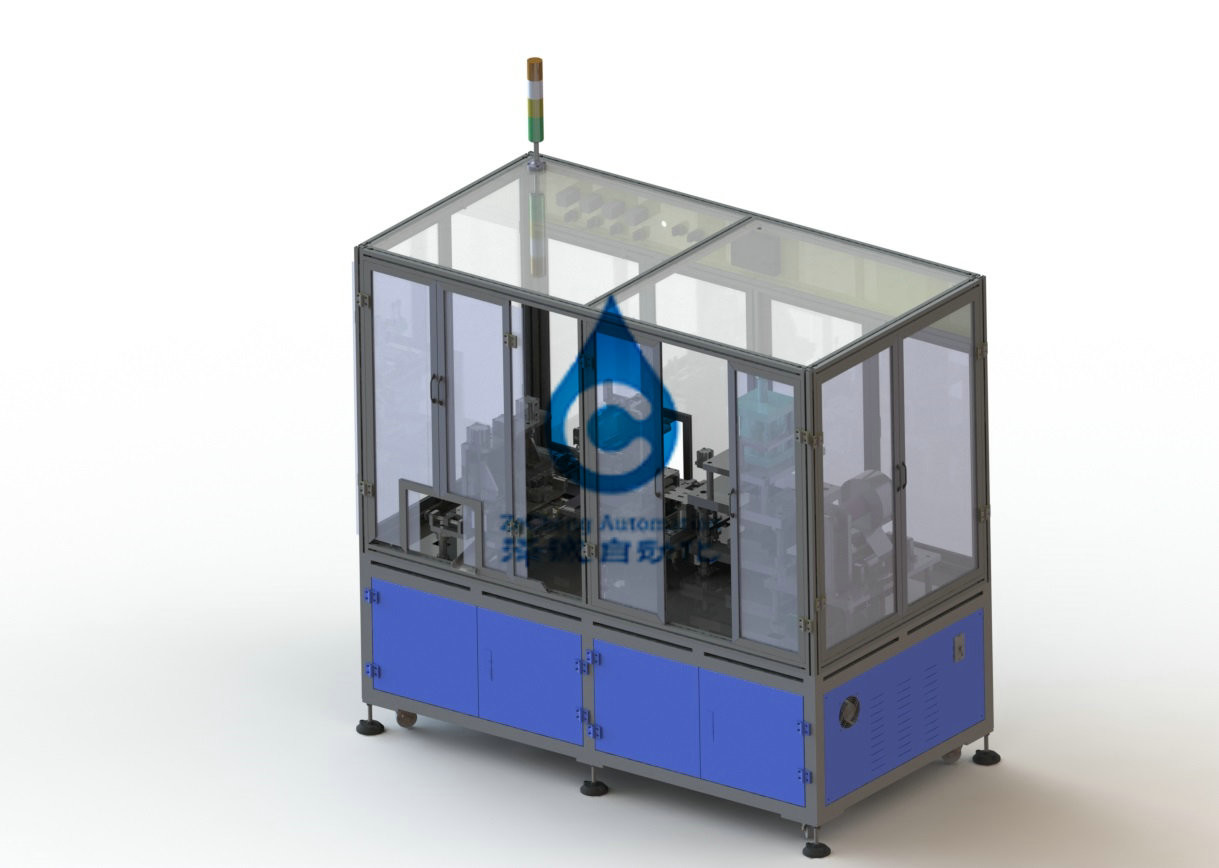

1, The profileThis equipment is mainly after the winding square batteries or laminated rectangular batteries for pressing, rolling, aluminum-plastic film automatic automatic correction automatic fixed-length cutting, automatic punching hole forming, batteries, automatic feeding, automatic short circuit test, automatic into the shell, aluminum-plastic film automatic folding, automatic sealing, automatic side sealing, HI - POT test automatically, automatic trimming, automatic coating, automatic blanking.
Features:
the whole packaging line has a high degree of automation. It is enough to manually put the whole battery into the feeding station after winding.
1.2 high efficiency: 15PPM
1.3 automatic short-circuit testing: automatic testing of hi-pot, and automatic elimination of unqualified.
1.4 low operation cost: the equipment has a high degree of automation and is easy to operate manually. A worker can operate several devices at the same time.
2. Adapt to raw material specifications
| Material |
Feed way |
Material sheet length(mm) | Material width(mm) | The thickness of the material(μm) | Largest diameter(mm) | The inner diameter(mm) | ||
| Size range | Size range | tolerance | Size range | The tolerance | ||||
| Aluminium plastic film | coil | coil | 150-300 | 0.2 | 100-200 | 5 | ф400 | ф76.2 |
3. To adapt to the specifications
3.1 adaptive objectsThe battery size
| Model | W(mm) | L(mm) | H |
| ZLA01A | 20-50 | 30-70 | 2-8 |
2.1.4 equipment technical parameters
|
specifications Item |
ZLA01A | |
|
Technical parameters
|
Efficiency(PPM) | 15 |
| Pressure(T) | 3 | |
| Temperature control accuracy | +/-1℃ | |
| Edge width | 3-10mm | |
| Encapsulation time range | 3-6S | |
| Sealing side thickness | 0.19-0.3mm(Can be set) | |
| Temperature setting | 180°adjustable | |
| Precision of automatic forming outline size | ±0.2mm | |
| Hole depth accuracy | ±0.1mm | |
| Upper and lower film alignment | 小于0.3mm | |
| Maximum pressure | 3T(The pressure is adjustable) | |
| Press mold to ensure the normal service life | More than a million times | |
| Compressed air system | Air source provided by party a | |
| The total power(kw) | 18 | |
| Normal operating power(kw) | 15 | |
| Qualified rate of equipment products | ≥95% (A bad product caused only by the machine) | |
| Equipment failure rate | ≤5%(Failure caused by equipment only) | |
