Lithium Ion Battery Production Line Precision Ceramic Liquid Injection Pump precision ± 0.25%

Lithium Ion Battery Production Line Precision Ceramic Liquid Injection Pump precision ± 0.25%
Features Gallery Product Description Request A Quote
Material: Ceramic
Maximum Flow: 10mL/S
Power: 100W
Precision: ± 0.25%
Digital Display: LCD
Adjustment Control: Digital Quantitative
High Light:

automatic liquid filling machine


pressure leak detector

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZYB01-10
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per months
Product Description

Lithium Ion Battery Production Line Precision Ceramic Liquid Injection Pump precision ± 0.25%


1, Operating principle of zecheng precision injection pump

Zecheng precision liquid injection pump is a power transmission device that converts electrical energy into liquid kinetic energy.The piston and hydraulic cylinder modules made of special ceramics are adopted, and the straight line movement and rotary movement of the valve core are caused by the rotation of the output shaft of the stepping motor, so as to realize the circulating movement process of pumping the fluid into the cavity through the inlet and pushing the fluid out of the cavity through the outlet.To provide customers with small and micro high precision spray/injection solution

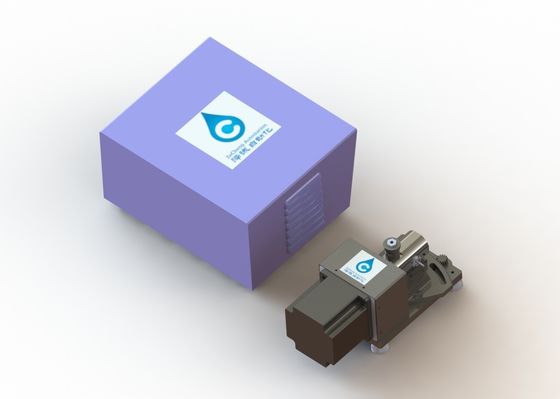

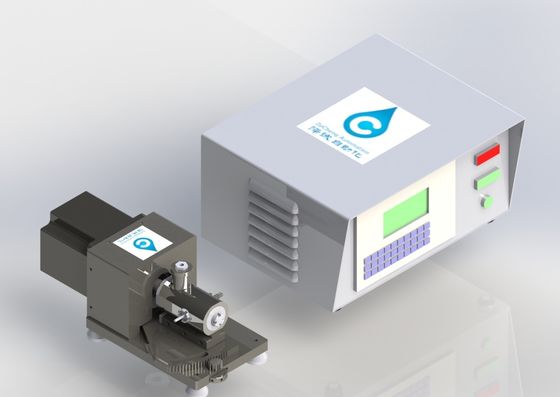

Lithium Ion Battery Production Line Precision Ceramic Liquid Injection Pump precision ± 0.25% 0

2, Characteristics of zecheng precision injection pump

2.1. High metering accuracy: repeated tests on various fluids such as water, oil and electrolyte have shown that the metering accuracy of zecheng precision liquid injection pump can reach ± 0.25%

2.2. Strong operability: the friendly man-machine interface can easily realize the single step and continuous operation of the liquid injection pump.In addition, it is equipped with external I/O interface, which can be driven by external signals to run the injection pump.

2.3. Low noise: due to the use of motor drive, as long as the installation and proper lubrication, the noise decibel can be reduced to very low.

2.4 high density special ceramic piston and hydraulic cylinder

2.5 digital quantitative adjustment control

2.6 digital velocity regulation control

2.7. Automatic liquid injection starting

2.8. Clear bubble mode

2.9. High-precision micro-spraying/injection

2.10. Suitable for laboratory research and development and mass production

2.11. Abrasion and corrosion resistance

2.12, almost no effect on the biochemical performance of the fluid

2.13. LCD digital display of operation parameters

2.14. Micro-step selection

2.15, the flow resolution is as low as 2 na upgrade/per step (using micro-step mode)

3. Typical applications:

3.1. Spraying/liquid injection/packaging/marking during the production of diagnostic reagent

3.2 drug stent spraying

3.3. Precision spraying/injection in the electronic industry

3.4. The light bulb is sprayed with trace mercury during production

3.5. Diagnostic reagent film point solution

3.6, dispensing machine

3.7 vial/tube filling

3.8 precision spraying/injection

3.9. UV adhesive injection

3.10. Liquid injection and packaging of perfume fragrance seasoning

3.11 other special applications requiring high precision and micro spraying/injection


4 model of zecheng precision injection pump:


      At present, the company has the following two technology mature zecheng precision injection pump: (1) kl-10: the maximum flow of 10mL/s;Power: 100 watts.Kl-40: maximum flow of 40mL/s;Power: 100 watts.Can also be customized according to customer needs of different types of injection pump.


NO. Model Maximum flow(mL/S) Power(W)
1 ZYB01-10 10 100
2 ZYB01-40 40 100



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.



Q1: Are you factory or trading company?

A: We are factory, with our R&D team, production department, from battery welding machine, etc design , drawing, process, assembly,commission, and final package and shipping.

Q2: Do you accept customization?

A2: YES. we accept customized machine. our strong R&D with 10+year rich experience can do customization.

Q3: About Price?

A3: Price is negotiable. It can be changed according to each battery welding or sorting machine internal configuration ,and also your order quantity.

Q4: About delivery?

A4. Standard welding machine can be delivered within 10days. Customized battery assembly machine can be delivered within 40days or negotiable.
