Pole Piece Hardware Die Cutting Machine

Negotiation, email communication
Pole Piece Hardware Die Cutting Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥180 PPM/min
Qualified: 99.5%
Weight: 6500KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

die cutting machine


battery cutting machine


Pole Piece Hardware Die Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZC-CC-01B
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 100-120 Working day
Payment Terms: L/C, T/T
Product Description

Lithium Battery Production Line Pole piece hardware die cutting machine


1. Equipment description:


1.1 equipment profile:


This equipment completes the lamination type lithium ion battery pole metal mold slicing process, the continuous coil material is cut into a single pole. Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the sheet metal die cutting station, hardware die will be extremely ear and arc Angle cutting forming, cutting location with a cutting knife for sheet cutting into single pole piece, then to dust removal of single pole piece, through CCD detection plate surface quality and dimension, bad product has been dropped into the waste box, non-conforming material was sent to the material collecting box.


1.2 workflow:

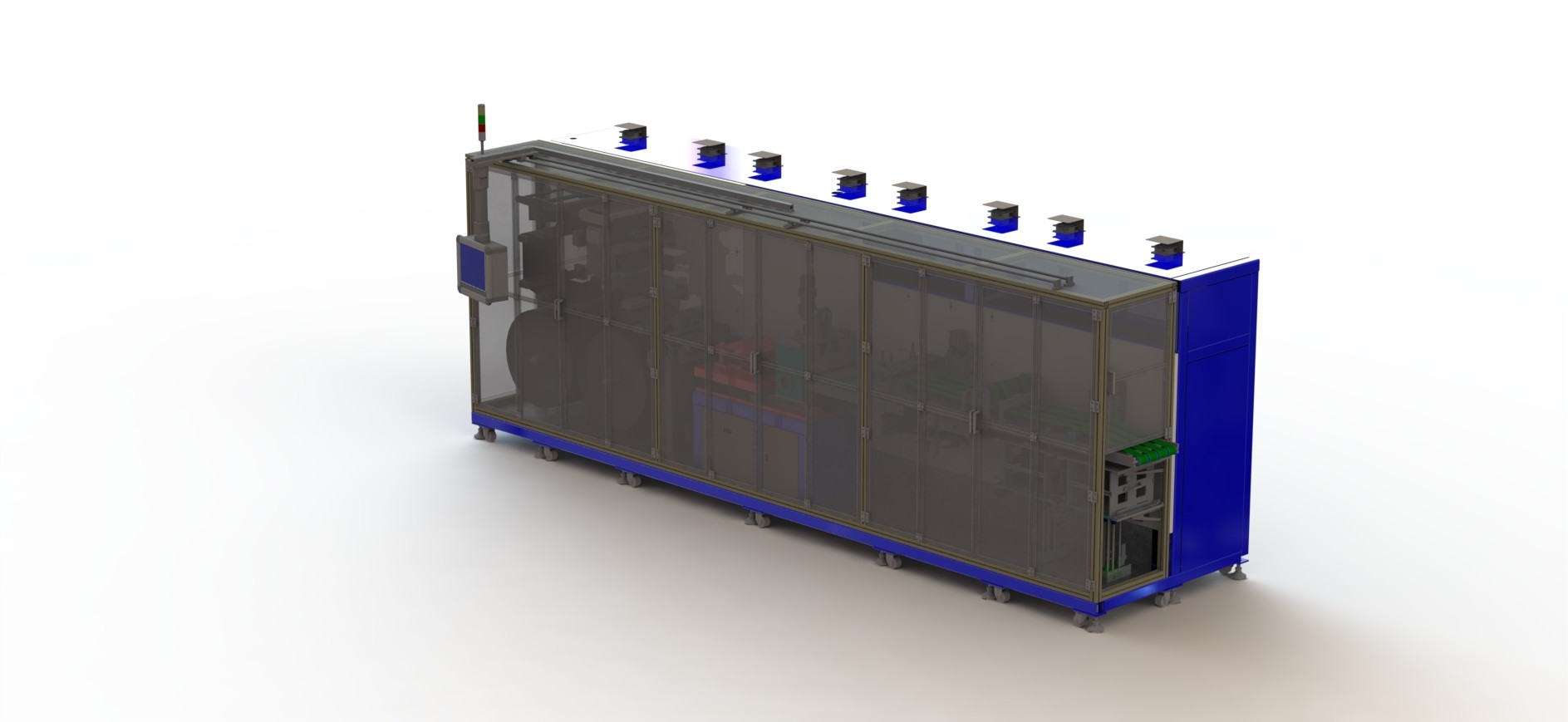

Pole Piece Hardware Die Cutting Machine 0


1.3 system structure composition and description:

NO. Component name Quantity instructions
1 Frame module 1 Provide support and installation reference for equipment
2 Rolling component 2 The material coil is fixed by inflatable shaft, with automatic rectifying function
3 Connect with the component 1 Convenient manual connection
4 Transition roll assembly 1 Including tension, process correction, transition roll and other components
5 Hardware die cutting components 2 The pole ear and chamfering are formed by metal die cutting
6 Drive component 2 Traction pole sheet for roll drive
7 Tension cache component 1 Cache 2 sets of drive mechanisms between the poles
8 Cut off the components 1 Cut a continuous pole into a single pole
9 Pole transport assembly 1 Transfer the pole from the cutter to the blanking position
10 Non-contact dust removal kit 1 The dust on the upper and lower sides of a single pole sheet can be removed by means of removing static electricity and air knife
11 CCD defect detection component   Detect upper and lower surface defects of the pole sheet
12 CCD dimension detection component 1 Check the dimension of the pole
13 Receiving components 1 Collect qualified pole sheet and eliminate bad pole sheet
14 shield   Provide a relatively sealed environment for the equipment, with access control function
15 Control system 1 Motion controller control, touch screen and button operation

1.4 external dimensions of the equipment:


Overall size (mm) : length * width * height 7500*1780*2395 (including protective cover and vacuum cleaner)


Equipment weight: 6500KG

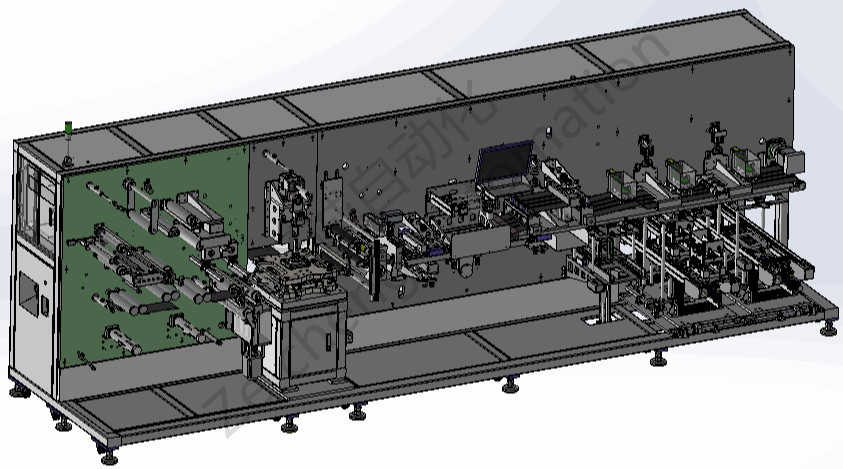

Pole Piece Hardware Die Cutting Machine 1

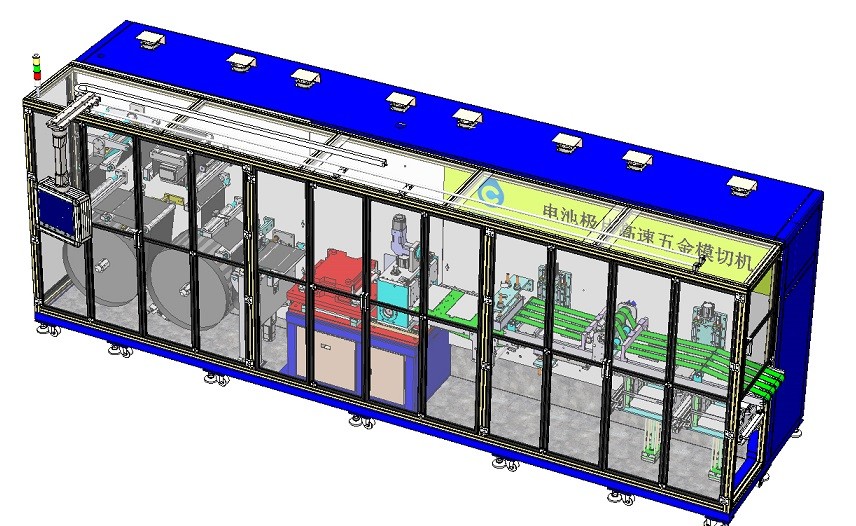

Pole Piece Hardware Die Cutting Machine 2

2. Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
