Square Aluminum Case Battery Assembly Line Lithium Battery Production Line

1
MOQ
Square Aluminum Case Battery Assembly Line Lithium Battery Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.5%
Weight: 8000KG
Voltage: AC220±10%
Warranty: 1 Year
High Light:

semi automatic laminating machine

,

automatic taping machine

,

aluminum case battery assembly line

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZC-DA-1-13
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

Square Aluminum Case Battery Assembly Line Lithium Battery Production Line



1. The device is used to assemble the single cell after the winding or lamination is completed.

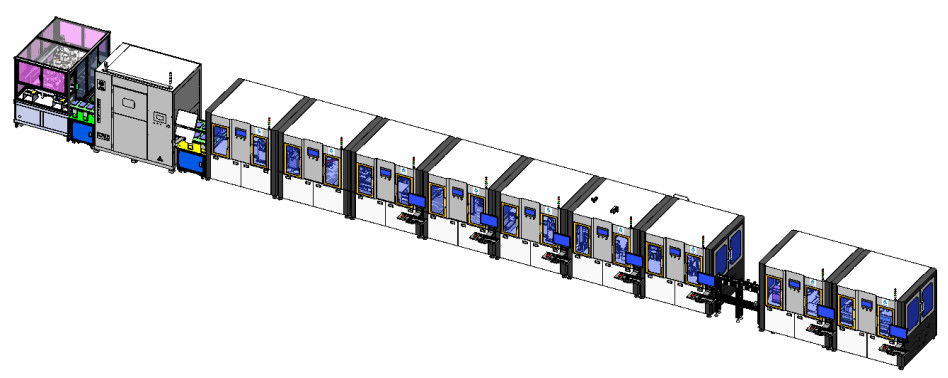

2, the entire line is fully automated, and all stations realize automatic loading and unloading of the robot.
3, Features:
3.1, all steps of the battery cell are automatically completed after the winding or laminating process, and all processes have their own detection functions, which effectively solves the quality control problem of the power battery product line. With data analysis function, the format of the database is consistent with the requirements of the central control system of the acquirer. During the entire production process, the pole pieces and cells are not touched manually.
3.2, each stand-alone has an independent PLC and touch screen. The entire production line can be operated by a stand-alone machine or the entire line can be automatically produced. After the stand-alone machine detects the battery, it starts to operate, and after the detection sensor is cancelled, the stand-alone machine does not move.
3.3, the battery is conveyed by the clamp carrier, which effectively avoids the frictional pollution of the battery by the flat belt.
3.4, the model is easy to change, the fixture carrier can be adjusted as needed, saving costs.
4. Process flow:
Square Aluminum Case Battery Assembly Line Lithium Battery Production Line 0
5. Required equipment


NO.

Process name

Device name

Efficiency

quanity

Characteristics

Supplier

1


hot-pressing


Fully automatic hot press


6


1


Multi-cell simultaneous hot pressing
The heating temperature is adjustable from 0 to 100 degrees, and the temperature precision is controlled within+/-1 degrees
Short circuit test, reject unqualified.DC 0-260V, insulation resistance ≥1MΩ, which can be set as required.Customer specified short circuit tester.
Reserved data interface for automatic data storage



Zecheng


2


X-RAY inspection


X-RAY detector


6


1


The battery enters X-RAY automatically.
Automatic detection of lug welding, pole piece alignment, lug and shell distance.
Reserved data interface for automatic data storage



Japan Federation/Real Estate


,3


Battery core binding


Electric core taping machine


6


1

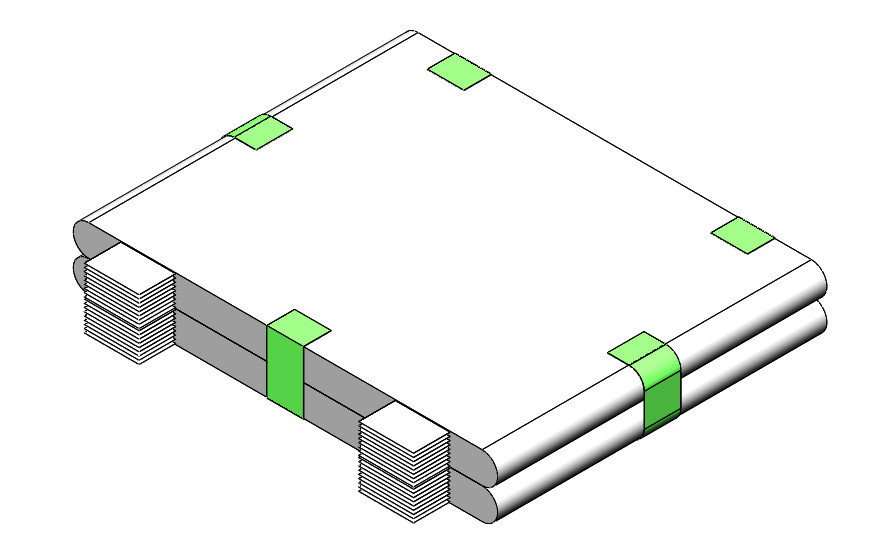

The battery core is pasted with 5 strips of adhesive tape, 1 strip of U-shaped adhesive at the head, 2 strips at both sides and 2 strips at the tail.
Tie up 2,2 cells



Zecheng


4


Pre-welding


Electric core lug pre-welding machine


6


1


Automatic ultrasonic pre-welding lug
Automatic tab cutting
Automatic dust clamping



Zecheng


5


Connecting piece welding


Connecting piece welding machine


6


1


Automatic Ultrasonic Welding of Pole Ears
Automatic dust collection



Zecheng


6


Cover plate welding


Cover plate laser welding machine


6


1


Cover plate tray loading
Laser welding
Tensile test (random inspection after setting the rated time or the rated quantity as required)
Automatic merging of reporting tapes,
Automatic cage mounting
Reserved data interface for automatic data storage



Zecheng


7


Battery core encapsulation


Electric core encapsulation cage assembling machine


6


1


Feeding cage material box
Automatic encapsulation of battery cells
After the 4 cells are combined, four layers of glue are pasted.



Zecheng


8


Cell envelope


Battery core coating machine


6


1


Feeding the diaphragm material box
Automatic coating, automatic L-shaped adhesive tape at bottom corner



Zecheng


9


Into the shell


Automatic shell machine


6


1


The manual cart puts the battery case
Automatic upper shell, automatic dust removal
Automatic shell entry
Automatic detection of shell force (thrust detection, alarm reminder)
Reserved data interface for automatic data storage



Zecheng


10


Laser welding


laser beam welding machine


6


1


Automatic feeding
CCD automatic detection
Laser automatic welding, welding power 1500W



Zecheng


11


Leak detection


Full automatic helium mass spectrometer


6


1


Automatic feeding,
Box seal
Helium Detection-Infukang



Zecheng
