Cadmium nickel battery, iron nickel battery, zinc nickel battery plate assembly line, assembly line

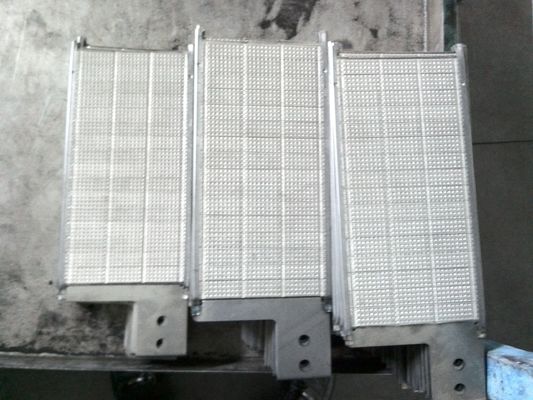

1. Bag battery plate assembly line design requirements
1.1, The device will automatically put volume coil steel belt into the machine, artificial wear the steel belt into automatic steel box forming welding machine SongLiaoKou can, by with automatic feeding manipulator pressure steel (steel band shearing length required by the customer) products to set parameters, cutting the steel belt pressure molding (steel belt after forming the shape of "U" is the "muscle").Grasp the reinforcement manipulator reclaimer, wait.Steel sheet box made stepper motor action moving up, manipulator automatic grab even steel plate material, in feeding, dial expect a forward, take expect a grab bar manipulator, automatic welding, automatic molding steel box into continues the frame will be automatically according to the order in same direction (around 100 pieces per batch), neat to cycle to work.(note: in the process of running the stiffened plate feeding with grab bar manipulator movement is synchronous work, in order to improve the production efficiency)
1.2, Efficiency: welded steel box 10 piece/ min, a reinforced frame about 6 seconds.
1.3, Technological process:

Zinc Nickel Battery Plate Assembly Line 25kva AC220V 0

1.4, Features: one worker can operate, artificial operation on the whole plate of strip steel, steel plate by manipulator automatic grab, automatic molding, automatic flattening, automatic assembly fixed, reinforced frame welding a survival, convenient and reliable operation, reduce the manual operation and the intensity of labor, high efficiency.
2. The main technical requirements and parameters:
2.1, Reinforcement materials: 0.5 mm x 14 mm x L, every dish weighs about 10 ~ 30 kg.
2.2, Molding length: 90 ~ 255 mm.
2.3,Reinforced frame length 120 ~ 290 mm, width 85 ~ 175 mm is adjustable.
(single head) :
2.4, spot welding, the total thickness of 3 mm or less.
2.5, Spot welding machine: the sea billiton spot welding machine.Power AC380V plus or minus 10%, 50 HZ + 5% for HZ.The maximum power output of 25 kva.Welding schedule 25 mm.Welding center distance is adjustable.(two)
2.6, Reinforcement, the reinforcement plate per piece by manipulator automatic grab on material, welding equipment automatically removed parts, automatic in order after the same neat, easy to transport and process using under (around 100 pieces per batch), after the count report to the police.
2.7,Spot welding is firm and reliable.
2.8, Positioning fixture locating reliable, durable, easy disassembly.

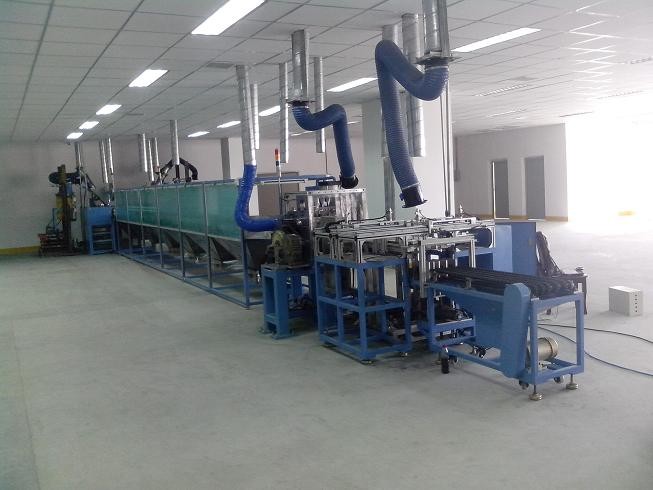

3. Automatic steel box forming welding machine main components
3.1A diagram,equipment:

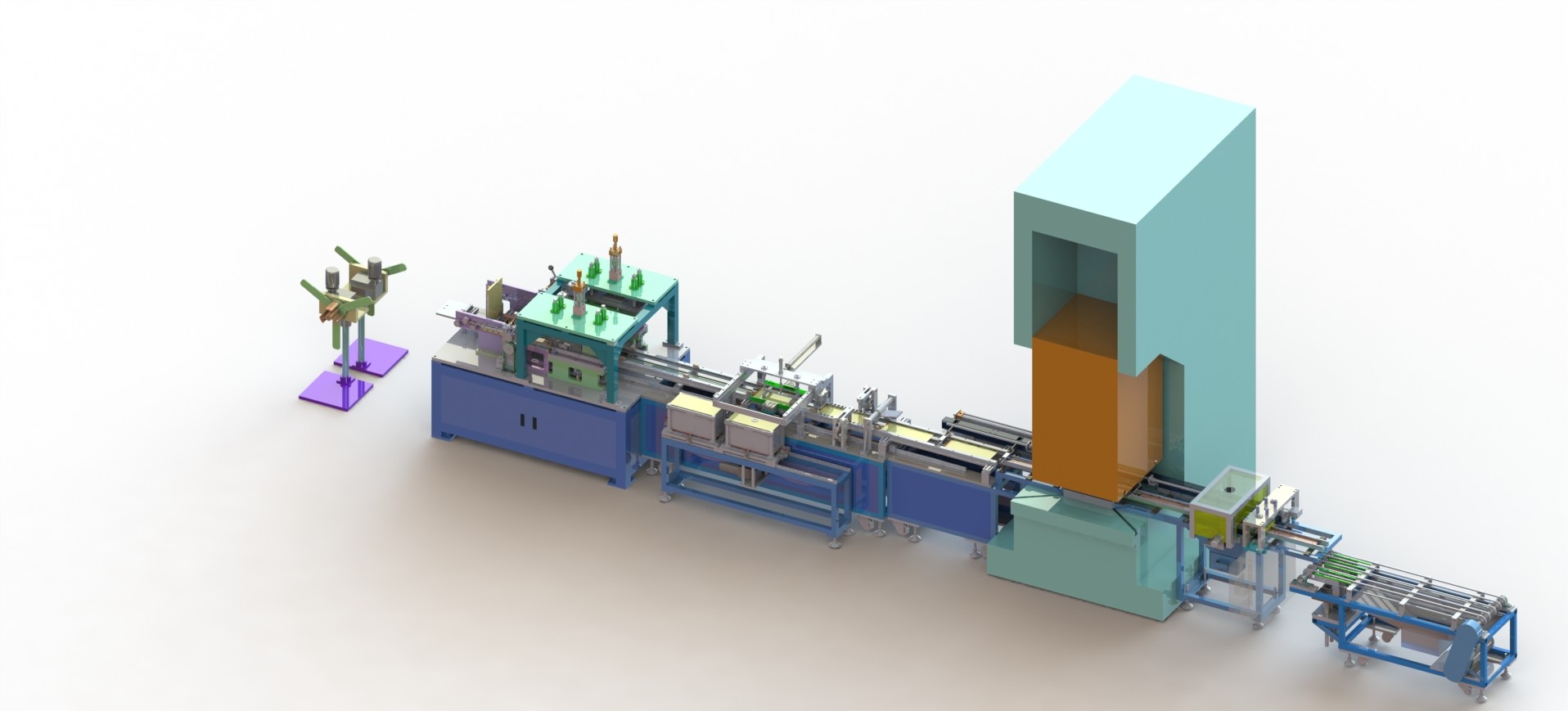

Zinc Nickel Battery Plate Assembly Line 25kva AC220V 1

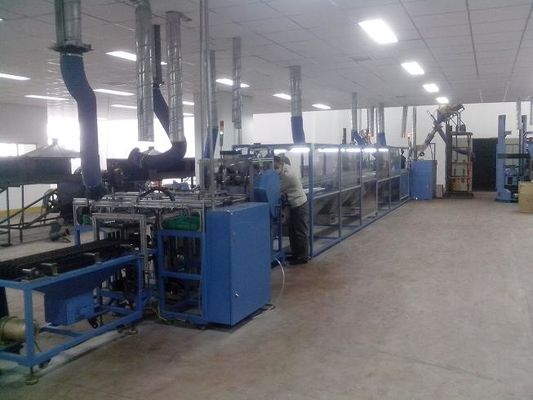

3.2,Equipment technical parameters

Machine specifications


Technical parameters efficiency 10Piece/min
The total power(kw) 55kw
Normal operation of the power(kw) 52kw
Other energy Dry compressed air source
The weight About 8 tons
size L7500mm*W2300mm*H4000mm

3.3,Equipment main components



NO System composition The system configuration Quantity
1 Rack system   1Sets
  4040 square welded frame structure 1
  The base plate 1
2 Rolling component   2Sets
  Rolling machine 2
3 Cut the molding components   2Sets
  The hydraulic system 1
  Up and down forming die 2
  Molding hydraulic cylinder 2
4 Welded components   1Sets
  Spot welding machine 2Sets
  The welding mechanism 2
  The welding mechanism 2
5 Feeding regulating components   1Sets
  Linear guide of silver 2
  Positive and negative adjustment screw 2
  Adjust feeding mechanism 2
  Steering mechanism 2
6 Automatic feeding component   1Sets
  cylinder 3
  Linear guide of silver 2
7 Plate assembly component   1Sets
  Plate transportation agency 1
  Material feeding 1
8 Plate roller components Single column hydraulic press 1Sets
  Plate fixture NSets
9 Multipoint welding components   1Sets
  Spot welding machine 2Sets
  The welding mechanism 2
  The welding mechanism 2
10 Automatic blanking components   1Sets
  Step into the receiving institutions 1Sets
11 The operating system PLC-Omron 1Sets
  Touch screen 1
