Name: 100mm Coin Cell Battery Lab Equipment 450W Rolling Press Machine
Brand: GUANGDONG XWELL TECHNOLOGY CO., LTD.
SKU: XW-VDO20L
Price: 5,050.00 USD
Availability: InStock

MOQ:	1 PCS
Price:	100-10000USD，Negotiable
Standard Packaging:	Holzgehäuse
Delivery Period:	10-15 Tage
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	10 PC/Monat

Details Information

Produkt-Beschreibung

Detail Information

Herkunftsort

China

Markenname

XWELL

Zertifizierung

Modellnummer

XW-VDO20L

Model:

XW-RPM100

Voltage:

AC110V/220V,50/60Hz

Power:

450W

Roller diameter:

100mm

Press thickness:

0 ~ 2mm adjustable with dial gauge

Cylindrical degree:

≤±2um

Rolling speed:

0~40mm/s, can be adjusted

Rolling temperature:

0~130℃, temperature can be adjusted, digital display

Hervorheben:

100mm Battery Lab Equipment

Battery Lab Equipment 220V

450W rolling press machine

Produkt-Beschreibung

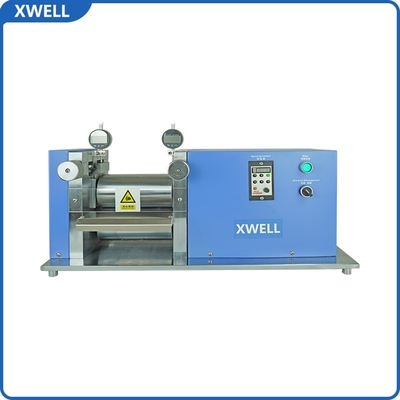

Rolling Press Machine Coin Cell Battery Lab Equipment

XW-GYJ Rolling Press Machine. It has dual rollers and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

This machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.

Specifications

Model	XW-RPM100	XW-RPM200	XW-RPM300
Voltage	AC220V,50Hz
Roller diameter	96mm
Roller length	100mm	200mm	300mm
Roller features	1.Material: ceramic coated on hardened tool steel with HRC > 62, which have much hard than Cr plated roller and provides better surface roughness. 2.Ceramic coating material: 97% is chromic oxide; 3% is aluminum oxide, calcium oxide and magnesium oxide 3.High resistance to corrosion, acid and alkalinity, and reduce metallic contamination
Structure	1.Heavy duty steel frame, gears and handle 2.φ96 mm Rollers made from hardened tool steel (HRC>62) with Cr electroplated coating 3.Dual micrometer for accurate thickness adjustment in the range 0~2 mm maximum.
Press thickness	0 ~ 2mm adjustable with dial gauge
Cylindrical degree	≤±2um
Rolling speed	0~40mm/s, can be adjusted
Rolling temperature	0~130℃, temperature can be adjusted, digital display
Size	600 220 300 mm
Weight	80kg

Tags:

Produits

MOQ:	1 PCS
Price:	100-10000USD，Negotiable
Standard Packaging:	Holzgehäuse
Delivery Period:	10-15 Tage
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	10 PC/Monat

Detail Information

Produkt-Beschreibung

Detail Information

Herkunftsort

China

Markenname

XWELL

Zertifizierung

Modellnummer

XW-VDO20L

Model:

XW-RPM100

Voltage:

AC110V/220V,50/60Hz

Power:

450W

Roller diameter:

100mm

Press thickness:

0 ~ 2mm adjustable with dial gauge

Cylindrical degree:

≤±2um

Rolling speed:

0~40mm/s, can be adjusted

Rolling temperature:

0~130℃, temperature can be adjusted, digital display

Min Bestellmenge:

1 PCS

Preis:

100-10000USD，Negotiable

Verpackung Informationen:

Holzgehäuse

Lieferzeit:

10-15 Tage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

10 PC/Monat

Hervorheben

100mm Battery Lab Equipment

Battery Lab Equipment 220V

450W rolling press machine

Produkt-Beschreibung

Rolling Press Machine Coin Cell Battery Lab Equipment

Specifications

Model	XW-RPM100	XW-RPM200	XW-RPM300
Voltage	AC220V,50Hz
Roller diameter	96mm
Roller length	100mm	200mm	300mm
Roller features	1.Material: ceramic coated on hardened tool steel with HRC > 62, which have much hard than Cr plated roller and provides better surface roughness. 2.Ceramic coating material: 97% is chromic oxide; 3% is aluminum oxide, calcium oxide and magnesium oxide 3.High resistance to corrosion, acid and alkalinity, and reduce metallic contamination
Structure	1.Heavy duty steel frame, gears and handle 2.φ96 mm Rollers made from hardened tool steel (HRC>62) with Cr electroplated coating 3.Dual micrometer for accurate thickness adjustment in the range 0~2 mm maximum.
Press thickness	0 ~ 2mm adjustable with dial gauge
Cylindrical degree	≤±2um
Rolling speed	0~40mm/s, can be adjusted
Rolling temperature	0~130℃, temperature can be adjusted, digital display
Size	600 220 300 mm
Weight	80kg
