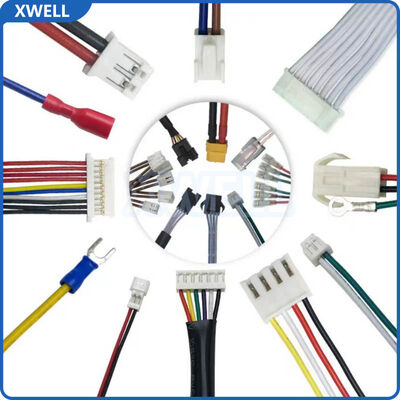

Lithium Battery BMS Wiring Harness | Battery Pack Connector Cable 2P-20P

MOQ:	1000PCS
Price:	$0.1~$1/Negotiable
Standard Packaging:	Carton
Delivery Period:	7-10days
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	100000pcs

Details Information

Product Description

Detail Information

Brand Name

XWELL

Wire Specification:

1007 AWG22 Thick Wire

Conductor Copper Strands:

17 Strands Of 0.12TS Tinned Copper Wire

Outer Diameter Of Wire:

Approx. 1.5 Mm

Insulation Material:

Heat-resistant Polyvinyl Chloride (PVC) Insulation

Conductor:

Tinned Copper Wire

Rated Temperature:

-30°C ~ +80°C

Rated Voltage:

300V

Maximum Current:

Approx. 2A ~ 2.2A

Wire Length:

Multiple Lengths Available

Terminal Pitch:

2.5mm / 2.54mm

Highlight:

Lithium Battery BMS wiring harness

Battery pack connector cable 20P

Battery pack accessories with warranty

Product Description

Lithium Battery BMS Wiring Harness | Battery Pack Connector Cable 2P-20P

High-Quality BMS Signal Wiring Harness for Lithium Battery Packs

Our lithium battery BMS wiring harnesses are designed for battery management systems (BMS), battery packs, energy storage systems, electric vehicles, and various lithium battery applications. Available in configurations from 2P to 20P, these colorful ribbon cable assemblies provide reliable signal transmission and power connections between battery cells, BMS boards, and electronic control modules.

Manufactured with premium tinned copper conductors and phosphor bronze terminals, the harnesses offer excellent conductivity, corrosion resistance, and long-term reliability for demanding battery applications.

Key Features

Flexible Configuration Options

The number of wires, wire spacing, cable length, connector type, and terminal design can be customized according to customer requirements.

Available options include:

2P to 20P configurations
Custom wire lengths
Customized connector types
Different wire pitches
OEM & ODM support

Premium Tinned Copper Conductors

The wiring harness uses high-quality tinned copper wire cores, providing:

Low electrical resistance
Excellent conductivity
Stable current transmission
Enhanced corrosion resistance
Longer service life

High-Quality Phosphor Bronze Terminals

Precision phosphor bronze terminals ensure:

Secure connections
Strong contact performance
Excellent mechanical strength
Reliable signal transmission
Reduced voltage loss

Stable Signal and Power Transmission

The anti-oxidation design helps maintain consistent electrical performance and minimizes signal interference, ensuring reliable communication between battery cells and the BMS.

Product Advantages

Space-Saving Design
Improved Assembly Efficiency
Reliable Electrical Performance
Excellent Corrosion Resistance
Custom Manufacturing Support

Technical Specifications

Item	Specification
Product Name	Lithium Battery BMS Wiring Harness
Configuration	2P – 20P
Conductor Material	Tinned Copper
Terminal Material	Phosphor Bronze
Cable Type	Ribbon Cable / Harness Cable
Wire Length	Customized
Connector Type	Customized
Operating Function	Signal Transmission & Power Supply
Customization	OEM & ODM Available

Applications

Lithium Battery Packs
Battery Management Systems (BMS)
Energy Storage Systems (ESS)
Electric Vehicle Battery Packs
E-Bike Batteries
Power Tool Batteries
Portable Power Stations
Solar Energy Storage Batteries
PCB-to-PCB Connections
PCB-to-Module Connections
Smart Electronic Devices

Why Choose Us?

High-Quality Tinned Copper Conductors
Durable Phosphor Bronze Terminals
Stable Signal Transmission
Corrosion and Oxidation Resistant
Flexible 2P-20P Configurations
OEM & ODM Customization Support
Strict Quality Control
Fast Delivery Worldwide
