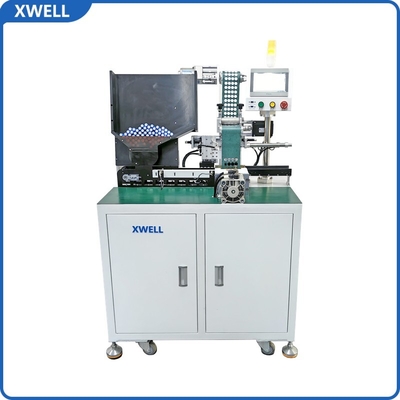

Automatic Insulation Highland Barley Paper Pasting Machine For Cylindrical Battery

Automatic Insulation Highland Barley Paper Pasting Machine For Cylindrical Battery

Product Description

 Insulation paper sticking machine is an automatic equipment for pasting barley paper on 32140/33140 cylindrical batteries. This equipment realizes the function of sticking highland barley paper to qualified batteries, the mechanical structure design is simple and generous, and the system performance is stable.

Product Features

• The equipment has a compact structure design, beautiful appearance and small space occupation.
• The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.
• Replacing mold to stick other size battery is supportable
• Specication:

• Voltage Supply	Single-phase ~ 220V, 50Hz
  Rated power	2KW
  Surface pad material	Highland barley paper or PVC material
  Material specification requirements	the max diameter of barley paper roll material is 350MM the inner diameter of paper roll core is 72-75MM
  batrery type	Battery cell positive or negative pole is automatically pasted with highland  barley paper mat or PVC material
  Feeding method	Insert battery cell hopper: 400pcs each time, available for 2 separate  inserting units BNX-350 auto pasting
  Cushioning power	Electric or pneumatic
  Speed	2000PCS/hour, 2PCS per punch
  Dimensions	L1110mm*W710mm*H1580mm
