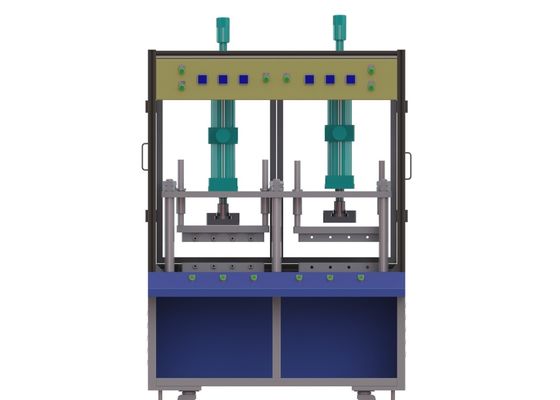

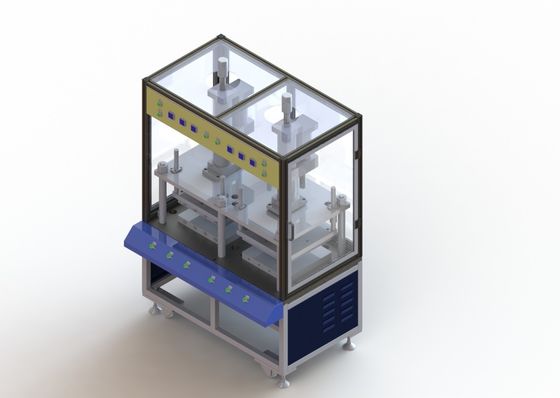

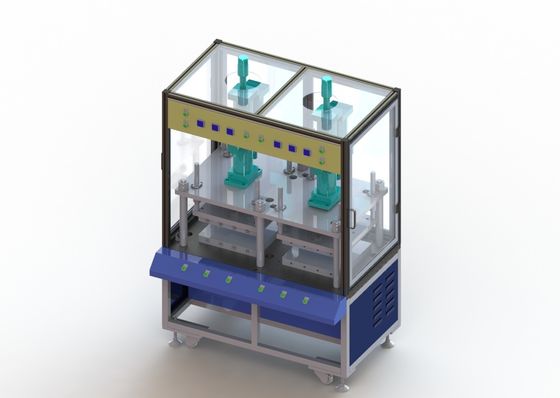

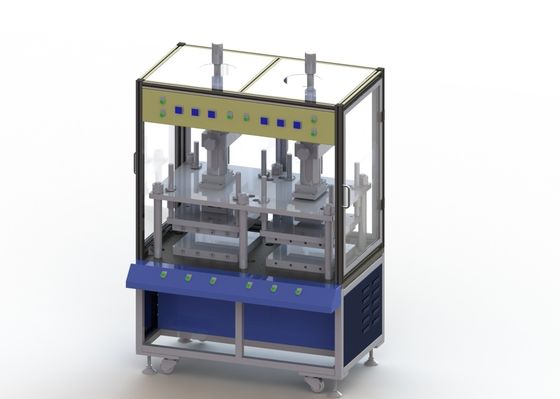

Hot Press Li Ion Battery Manufacturing Equipment 4 Station Straight Line Type

1
MOQ
Negotiable
Price
Hot Press Li Ion Battery Manufacturing Equipment 4 Station Straight Line Type
Features Gallery Product Description Request A Quote
Features
Specifications
Hi-pot: 0Volt~1000Volt
Pressure: 3000kgf-5000kgf
Power: 50KW
Weight: 2T
Voltage: AC220±10%
Warranty: One Year
High Light:

5000kgf Li Ion Battery Manufacturing Equipment

,

1000Volt Li Ion Battery Manufacturing Equipment

,

4Station Li Ion Battery Manufacturing Equipment

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZCAD04A-00
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Hot Press For Iron Phosphate Lithium Battery, Li Ion Battery Manufacturing Equipment



2.1.1 function overview

The hot pressing machine adopts 4-station straight line type, mainly including mechanical hand feeding and unloading, automatic hot pressing, hi-pot test and other functions. The sensor in place detects the jacking up of the battery cell after the product is in place , and the lamination cell is manually grabbed and put into the hot pressing station. The hot pressing lasts according to the set time, and the hi-pot test is conducted after the hot pressing is finished. Refer to the layout plan as follows:



1.3 introduction of main functions

1) single layer logistics line is used for feeding: laminating machine automatically puts a single battery into a logistics jig, and the charging transplanting manipulator grabs the battery and puts it into a hot pressing mechanism;

2) hot pressing mechanism: electric cell pressure heating;

A) hot pressing: hot pressing without pallet;

B) parallelism between upper and lower pressing plates: ≤±0.05mm;

C) in the process of hot pressing, it has the function of temperature adjustment. The hot pressing temperature can be adjusted within the range of normal temperature to 130℃. The adjustment precision is 1℃, and the apparent temperature error is ≤1℃.In the continuous production process, the hot pressure temperature is controlled within ±3℃;

3) hi-pot test: carry out the hi-pot test under pressure during the hot pressing process.

A) test voltage 0 ~ 1000V adjustable, 0 ~ 1000V adjustable, voltage accuracy 1V, leakage current range 0 ~ 10mA, current accuracy 1mA, test time 0 ~ 999s adjustable;

B) the current value and voltage value can be fed back to the PLC system at the same time to ensure the accuracy of short circuit judgment. The equipment has the discrimination function of NG and OK;

C) after the short-circuit test, the discharging manipulator will put the unqualified products into the waste area for manual treatment, and the qualified products will be put into the next logistics line;

1.4,List of primary device configurations

NO. Name Quantity Unit Remarks
1 Frame and cover 1 set
2 Upper hot press mechanism 4 set
3 Up and down load mechanism 2 set
4 Hot press down to move the component 4 set
5 Conveyor line 2 set
6 Electric control system 1 set



2.1.5 equipment technical parameters1. Basic equipment parameters

1) total power: ≤50KW;

2) power supply: AC380 V±10% 50HZ, three-phase five-wire system;

3) compressed air: pressure ≥ 0.5mpa, flow ≥12m /h;

4) equipment weight: ≤ 2.0 tons.Ground load: 650kg/㎡;

5) overall size :(length) 2000* (width) 1400* (height) 2200;(for reference only, specific in kind);

6) appearance color: according to party a's color board;

7) equipment efficiency: 5PPM (automatic operation efficiency of equipment, excluding other factors);

8) the moving rate of equipment ≥ 99%;

9) product yield ≥ 98%;

3. Electrical control system



Hot Press Li Ion Battery Manufacturing Equipment 4 Station Straight Line Type 0Hot Press Li Ion Battery Manufacturing Equipment 4 Station Straight Line Type 1
