8 PPM Li Ion Battery Manufacturing Equipment Battery Cell Hot Cold Press Equipment

1
MOQ
Negotiable
Price
8 PPM Li Ion Battery Manufacturing Equipment Battery Cell Hot Cold Press Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 15KW
The Temperature Precision: ±1℃
Color: White
Speed: 8PPM
Voltage: AC220±10%
Warranty: 1 Year
High Light:

8 PPM Hot Cold Press Equipment

,

Battery Cell Hot Cold Press Machine

,

8 PPM Li Ion Battery Manufacturing Machine

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZCA07-202
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

8 PPM Li Ion Battery Manufacturing Equipment Battery Cell Hot Cold Press Equipment



1, The profile

The device is mainly used to flaten the rolled square cell or the square cell after lamination. The pressure and temperature can be adjusted according to the needs.

Characteristics

--- the battery in each station is pressed flat by gas-liquid booster cylinder, and the pressure can be adjusted.Adopt conveyor belt type to drive the battery to move.

-- high efficiency: double station, one station hot press, two stations cold press.Hot press and cold press.8 PCS/min (the specific efficiency is determined according to the hot pressing and cold pressing time)

-- low operating costs

The equipment has high degree of automation and simple manual operation..

Flat pressure: ≤ 2000KG

2. Flat pressing area: 350x480mm

3. Parallelism of pressing plate: ≤ 0.1mm

4. The flat pressure and time can be adjusted;

5, hot and cold pressure are equipped with pressure sensors and pressure display

To adapt to the specifications

3.1 adaptive objectsThe battery size

Model With(mm) Length(mm) Thickness(mm)
37AH 100-150 90-215 5-20
68AH 100-150 90-215 5-20
78AH 100-150 90-215 5-20
80AH 100-150 90-215 5-20



3.2 technical parameters of the equipment



Specifications

Item

ZCA07-202



Technical parameters

efficiency(PPM) 8(According to hot pressing, cold pressing time)
Fixture width adjustable range Adjustable or replacement, reference to adapt to the battery model
Pressure of work(T) 2
temperature control accuracy +/-1℃
Compressed air system 0.4-0.6MPa
The total power(kw) 15
Normal operating power(kw) 13

4, Mechanical specifications

4.1 rack system The device has a square welding frame, and the substrate is a steel plate with a thickness of 25-30mm. The surface is electroplated.

4.2 automatic feeding system The stepping motor drives the conveyor belt to move the battery from the feeding station to the hot press, from the hot press station to the cold press station, from the cold press station to the unloading station.

4.3 hot pressing systemThe upper and lower pressure plate is heated through the heating pipe, the temperature controller controls the temperature, the hot pressing time is set from the touch screen, and the pressure of the gas-liquid pressure cylinder can be adjusted.Hot pressing area 350*480mm.

4.4 cold pressure systemAfter the hot pressing is completed, the cell is moved to the cold pressing station, the lower template is cooled by circulating water, the cold pressing time is set from the touch screen, the pressure of the gas-liquid booster cylinder can be adjusted, and the cold pressing area is 350*480.

4.5 operating system Touch screen operation. There is power on, emergency stop, manual, automatic button.

4.6 control panelThe machine is equipped with independent electrical board, leakage switch, dc stability power supply and other power circuit components, control PLC, relay, motor control device, etc.And external connection, using connectors and terminal table.PLC adopts omron.The The ceiling of the power cable is partially perforated. Cables and air ducts between other equipment are wired and piped below.

4. 7 rectifying systemAutomatic correction of PET conveyor belt offset.



5. Energy medium Please provide the following energy medium

5.1, power supply

1) instantaneous change of voltage AC220V± 10% counterphase

2, frequency 50hz + 1hz

5.2, Air

1) pressure 0.5mpa 5kgf/cm2

5.3, capacity 1001/min

Environmental conditions The device can operate without barrier under the following environmental conditions.

1) temperature dynamic temperature: 5-35℃Storage temperature: 0-40℃

humidity 30-80% but should not dew.

3) environmental cleanliness shall not be lower than 100,000; No corrosive gas, liquid, explosive gas on site

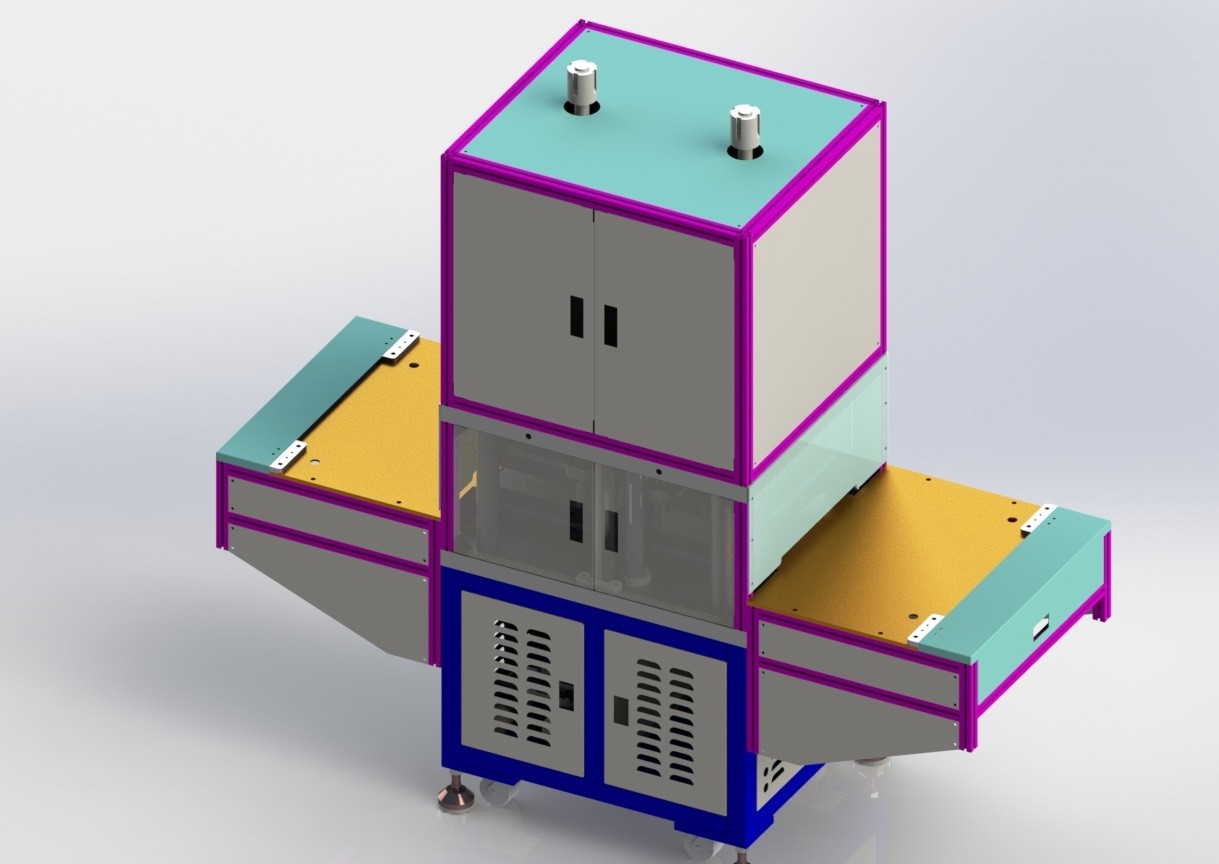

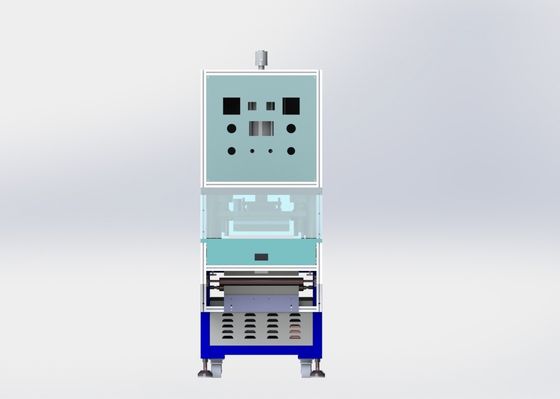

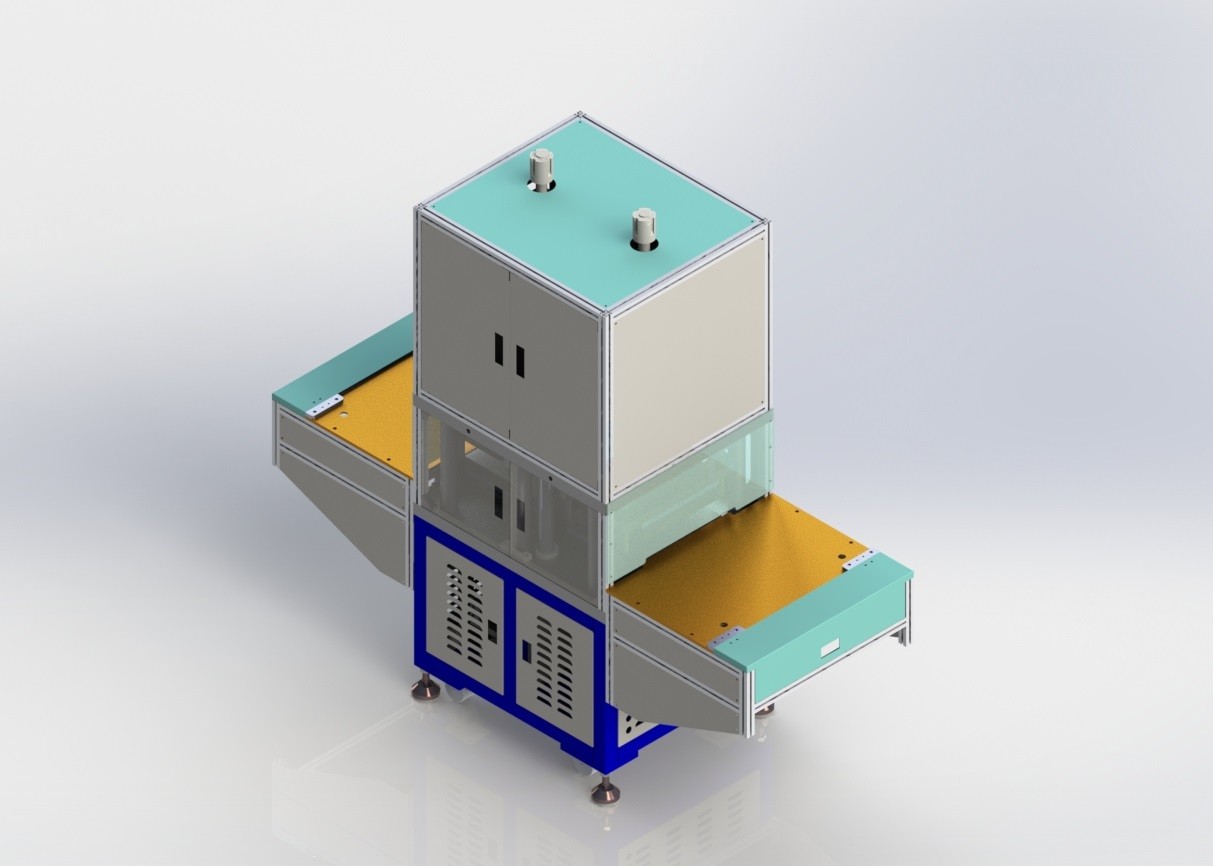

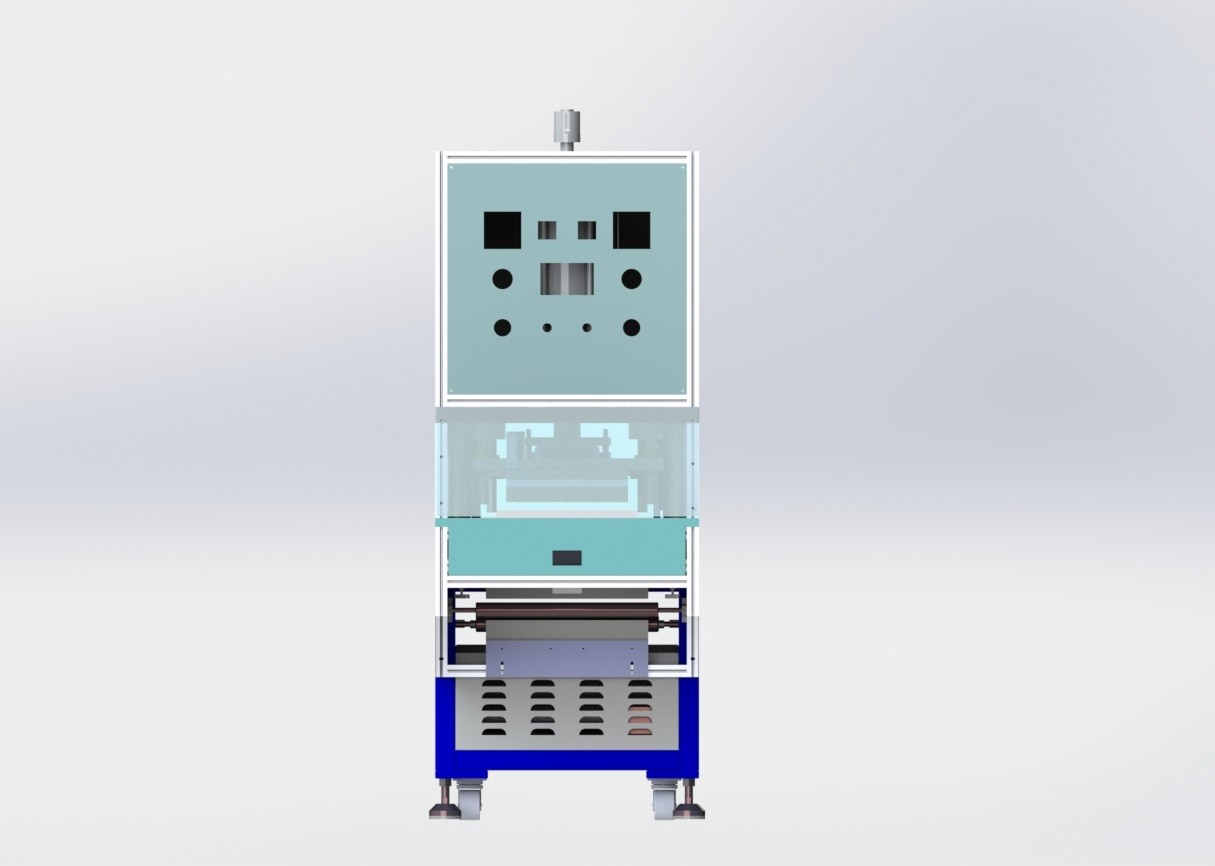

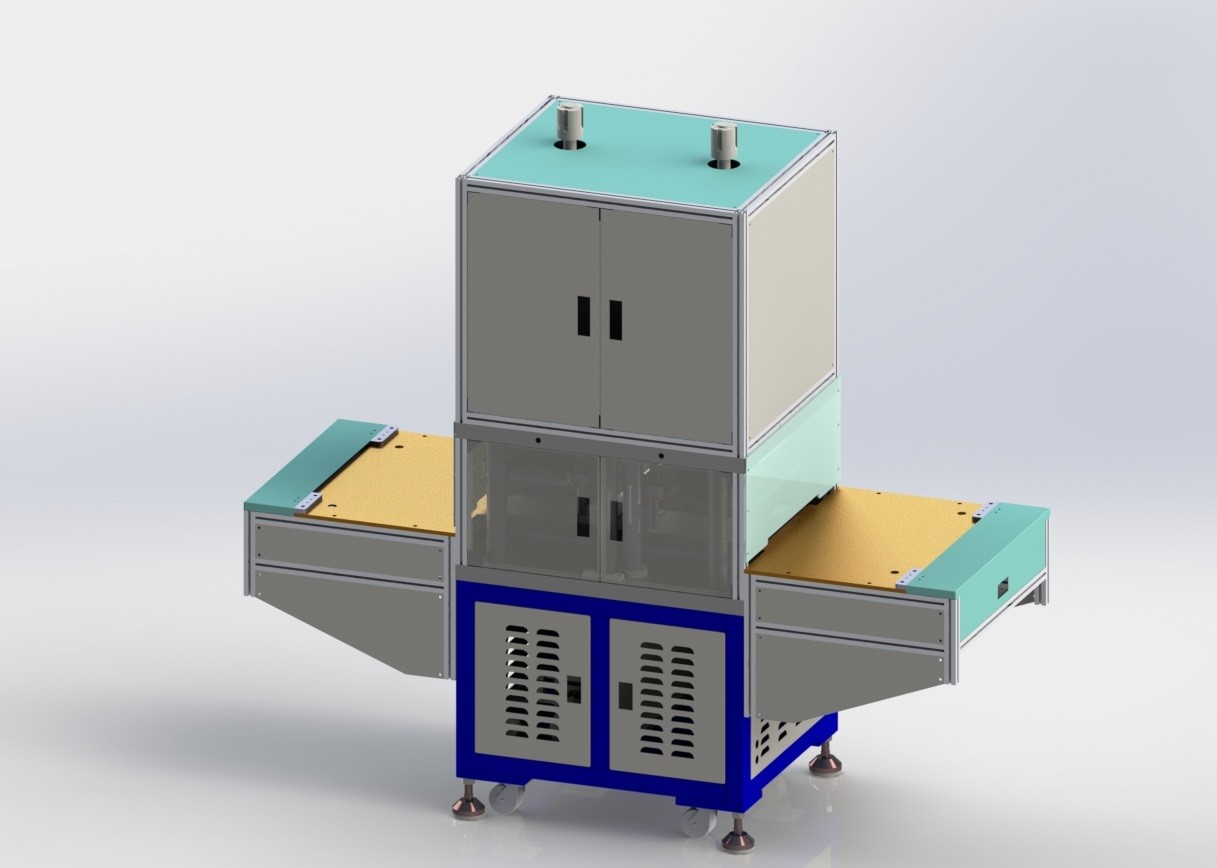

8 PPM Li Ion Battery Manufacturing Equipment Battery Cell Hot Cold Press Equipment 0

8 PPM Li Ion Battery Manufacturing Equipment Battery Cell Hot Cold Press Equipment 1



Commitment

1. New equipment promise

Our company guarantees that all the components of equipment will be in completely new condition, none used components.

2. Confidential commitment.

Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.

3. After-sales service commitment

Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.
