120PPM Battery Manufacturing Machine 200W Battery Pole Laser Slicer

120PPM Battery Manufacturing Machine 200W Battery Pole Laser Slicer
Features Gallery Product Description Request A Quote
Laser Power: 200W
Speed: 120PPM
Grain Rate: ≥98%
Qualified Rate: ≥99.5%
Voltage: AC220±10%
Warranty: 1 Year
High Light:

120PPM Battery Manufacturing Machine


Battery Manufacturing Machine Laser Slicer


200W Battery Pole Laser Slicer

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZCCC03A-00
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 80-120Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

200W Battery Pole Laser Slicer, Li Ion Battery Manufacturing Machine

1, Equipment description:

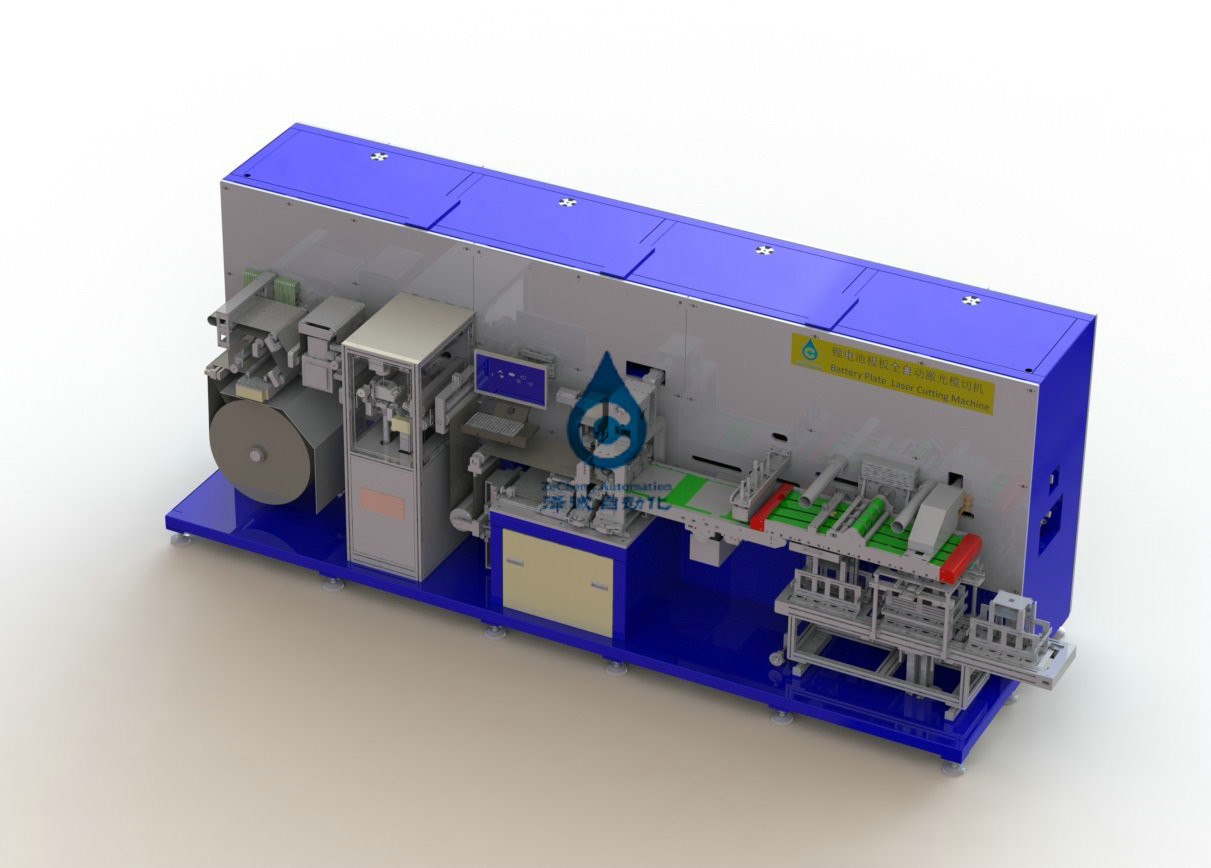

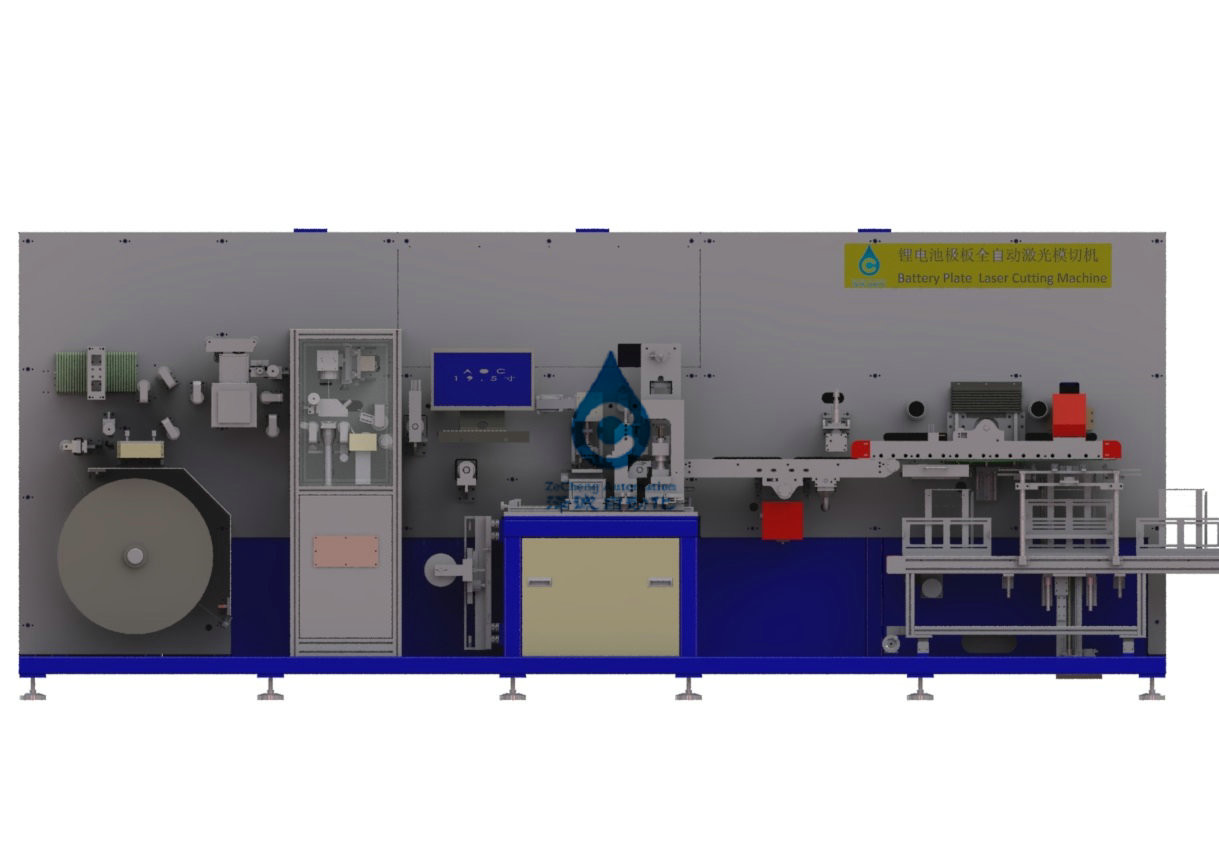

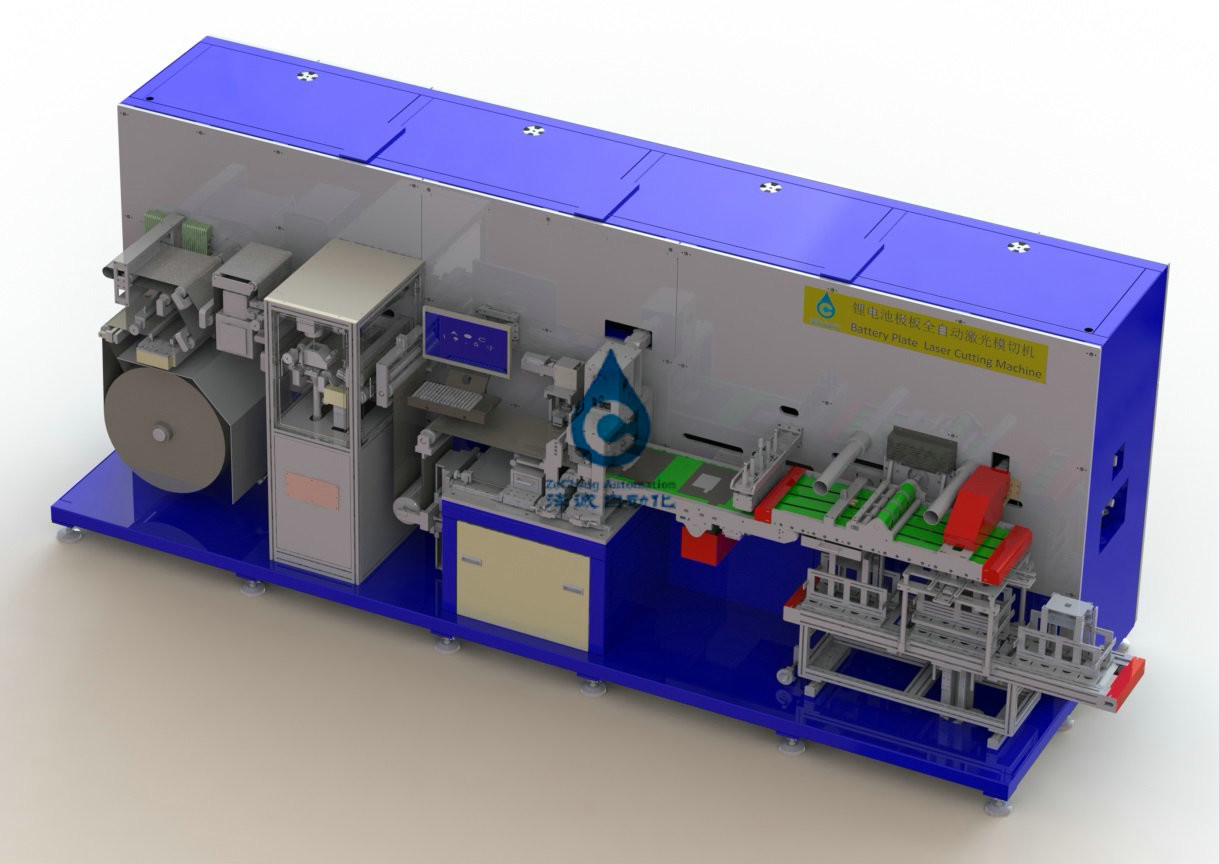

1.1 equipment profile:This equipment completes the laser chip slicing process of laminated lithium ion batteries and cuts the continuous coil material into single chip.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the laser cutting plate location, the laser will be extremely ear cutting forming, cutting location with a cutting knife for sheet was cutting into single pole piece, then to dust removal of single pole piece, through CCD detection plate surface quality and dimension, bad product has been dropped into the waste box, non-conforming material was sent to the material collecting box.


2, Scope of equipment adaptation and technical parameters

2.1 the specification of adaptive materials is as follows:


          Item                                specifications


Material specifications Pole piece Length(mm) coil
Width/tolerance(mm) 100~300/0.2
Thickness/tolerance(mm) 0.05~0.25/0.005
The largest diameter(mm) φ650
The inner diameter(mm) φ152.4mm(6")
Maximum weight of coil 250Kg


3, technical parameters and functions of the equipment:

3.1 equipment technical parameters:




Technical parameters
Efficiency >120ppm
Pole width W range/precision 80-250mm/±0.2mm
Pole height H range/accuracy 100-280mm/±0.2mm
Polar ear shoulder width Dt range/accuracy 5-50mm/±0.25mm
Polar ear width Wt range/accuracy 10-100mm/±0.2mm
Polar ear height Ht range/accuracy 10-30mm/±0.5mm(According to the size of the incoming material)
Total life of hardware mould >100000 hours
Grain rate (failure caused by equipment only) ≥98%
Qualified rate (except defective incoming materials) ≥99.5%


4 external dimensions of the equipment:

Overall size (mm) : length * width * height 7500*1780*2395 (including protective cover and vacuum cleaner)Equipment weight: 6500KG

120PPM Battery Manufacturing Machine 200W Battery Pole Laser Slicer 0


5, Equipment operating environment

5.1. Power supply: three-phase 380V;Voltage fluctuation is less than ±10%;The maximum power of the equipment is 16kw;

5.2. Gas requirements: air source pressure (compressed air) > 6 kg/cm2, maximum consumption 50L/min, drying;

5.3. Total weight of the equipment: 6500kg;

5.4. Plant floor bearing: > 800kg/㎡;

5.5. Ambient temperature: 20 ~ 35℃;

5.6. Relative humidity: 5 ~ 55% HR;

5.7. Operating environment requirements: the environmental cleanliness shall be no less than 100,000, and there shall be no corrosive gas, liquid or explosive gas on the site;
