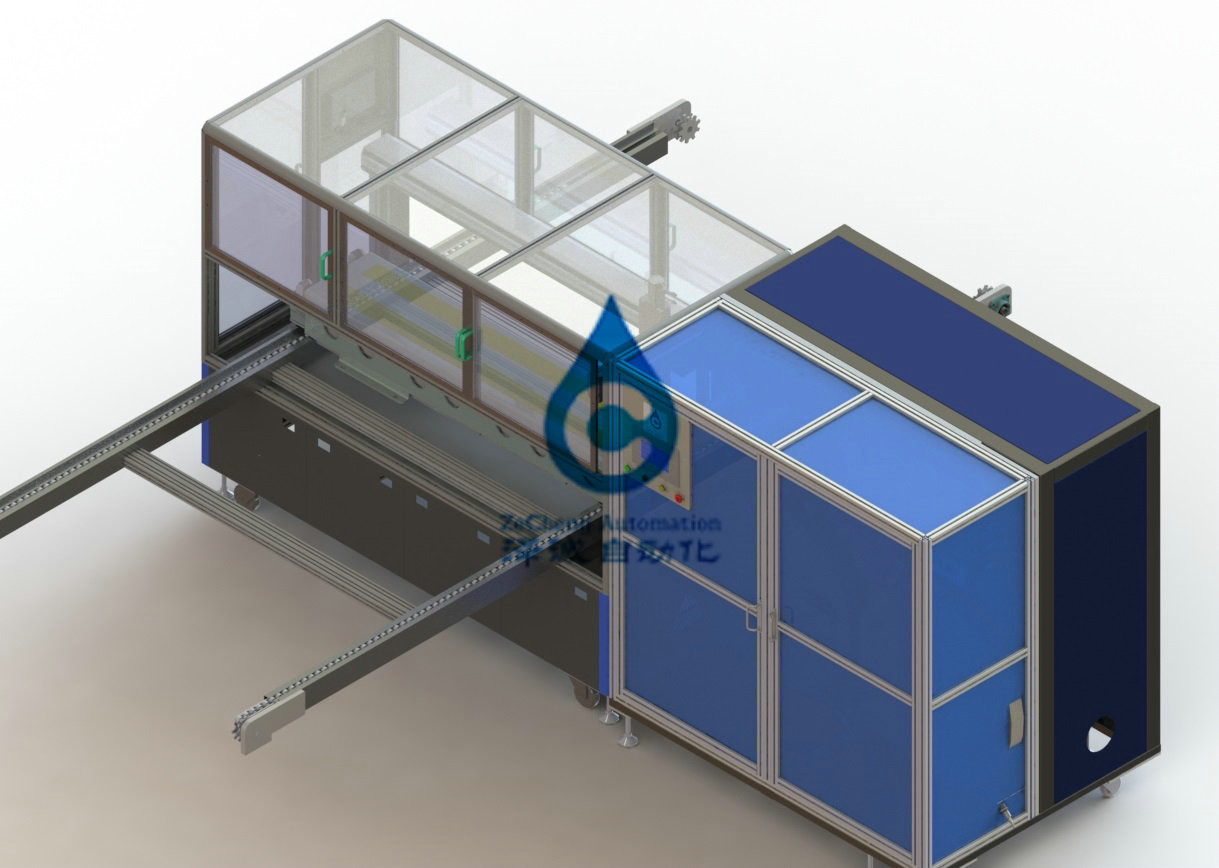

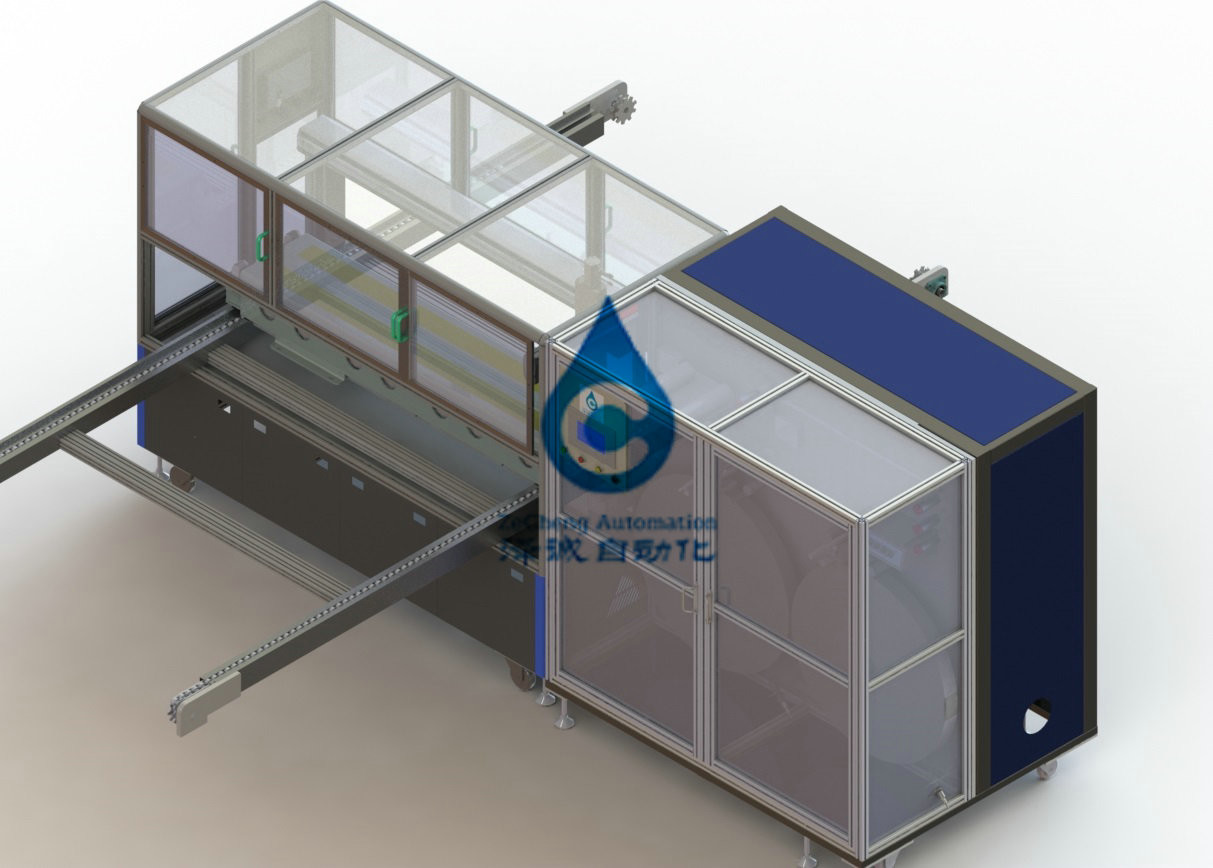

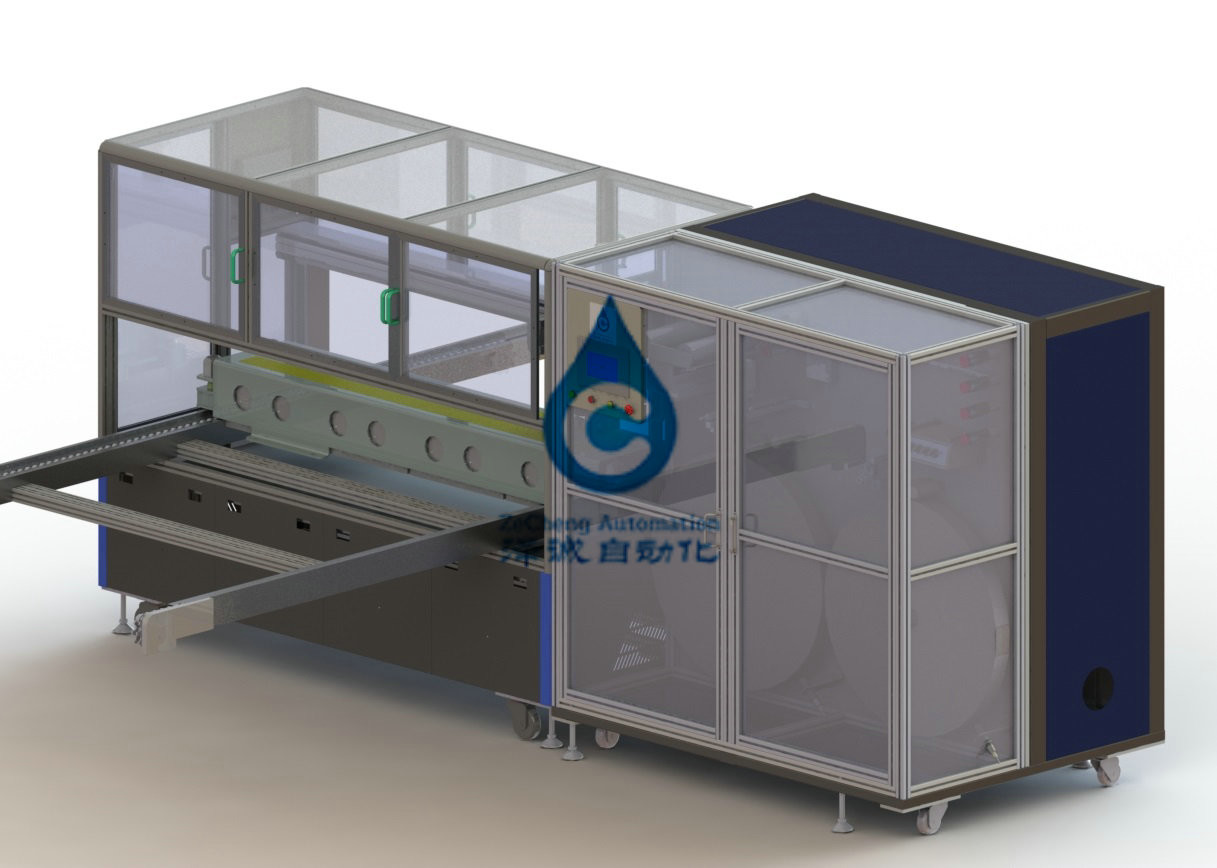

1. Equipment introduction
1.1. This device is specially designed for the taping process after the completion of the welding of the square module busbar sheet. It has the functions of automatic cutting and automatic taping, and is suitable for the taping with separated paper.
2. Device functions and parameters:

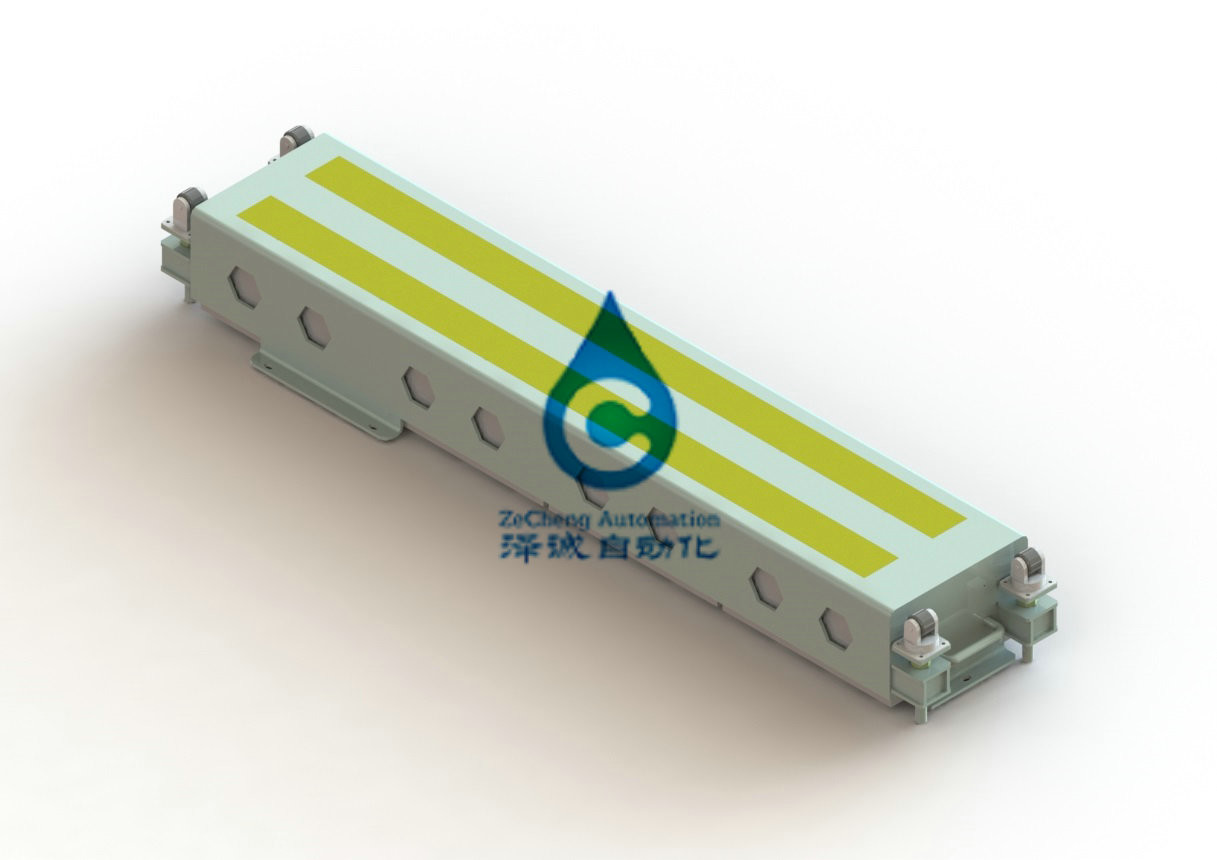

2.1. The size of the suitable module is as follows:
| Item | T3 | |||
| Burst mode | 1P25S-M1 | 1P28S-M2 | 1P28S-M3 | 1P25S-M4 |
| Length of die * width * height(mm) | 1770.5*329.3*93.5 | 1929*314.8*94.1 | 1929*314.8*94.1 | 1770.5*329.3*93.5 |
| Module weight | 86 | 95 | 95 | 86 |
| Flatness at the bottom of the module | ≤0.8mm | ≤0.8mm | ≤0.8mm | ≤0.8mm |
2.2.Equipment technical parameters
| Item | ZPCD05C2 | |
|
Technical parameters
|
The efficiency of | 40SApply 2 strips of tape |
| The total power(kw) | 3KW | |
| Normal operating power(kw) | 2.75KW | |
| Other energy media | dry compressed air source | |
| The weight | 800KG | |
| The equipment size | W1200mmXL2300mmXH1900mm | |
2.3 main functions of the equipment
1) the equipment shall have the function of material identification and refueling reminder to realize non-stop refueling; If the machine is stopped, it shall be stopped for once ≥4h, and the downtime of each stop shall be ≤ 5min.
2) the tension force control measures should be adopted in the film drawing process to ensure that the film is tensioned during the whole feeding process and film cutting process on the premise that the film is not broken. The tension force can be adjusted, and the tension force remains stable after the specification is set.
3) the rewinding mechanism provides power for the recovery of loose paper to tighten, and can receive the loose paper ≥200m;
4) the unwinding reel needs to provide the main power, has the rewind function, and is fixed in a way that takes safety into consideration. The fitting reel diameter is 100-450mm, and the effective load ≤20kg;
5) the rolling pressure is 0.1mpa when the film is applied;In the process of film sticking, there is no damage or scratch mark on the film;
6) the cutting mechanism tool has the function of life management, the requirement of blade life selection is ≥10w times, the number of cutting times can set the specification, the expiration alarm prompts the tool change;
7) Tape width 60-80mm.
4. Energy media4.1.The power supply
4.4.1.Voltage AC220V, single phase; Voltage fluctuation is less than ±10%.
4.1.2. Frequency 50 Hz.
4.2.air
4.2.1. Pressure 0.4 ~ 0.45mpa.
4.2.2. Flow of 10L/min.
5.Environmental conditions
The device can operate without barrier under the following environmental conditions.
5.1 ambient temperature: 5-35℃
5.2 humidity 30-80% but should not dew.
5.3 it shall be free from salt gas, toxic gas and corrosive gas.
5.4 dust shall have no conductive dust.
5.5 the magnetic boundary shall not affect the magnetic boundary of the device
