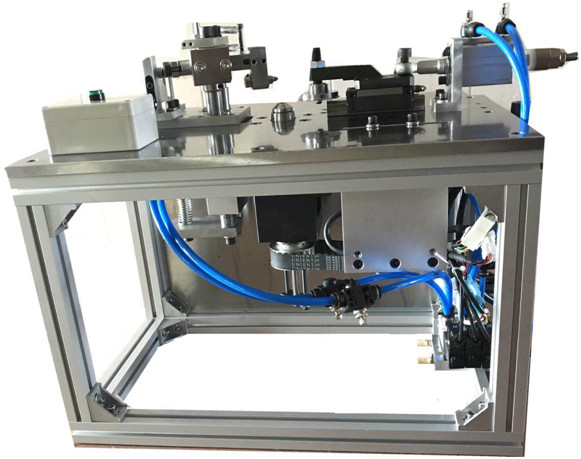

1000KG Battery Assembly Line Cylindrical Ultracapacitor Battery Sealing Machine

Negotiation, email communication
1000KG Battery Assembly Line Cylindrical Ultracapacitor Battery Sealing Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1000KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

Battery Assembly Line 1000KG


Ultracapacitor Sealing Battery Assembly Line


Cylindrical Ultracapacitor Battery Sealing Machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-02
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

1000KG Manually Fed Battery Sealing Machine Low Energy Consumption


1. General description of the equipment
1. This machine is suitable for the equipment of cylindrical ultracapacitor sealing belt, which is combined with air and electricity. It is suitable for the laboratory, not for mass production.
2. Reasonable design structure, simple operation, the size of the sealing belt waist can be adjusted according to the manufacturer's requirements;
3. Beautiful appearance, convenient maintenance and stable performance;
4. Equipment size: length, width and height: 500*300*450mm
5. Required voltage: 220V 50HZ power: 0.5kw
II. Overview of organization composition
The machine adopts manual feeding method of clamping device, one-key automatic sealing belt waist, using a beam mode clamping device, no scratch aluminum shell;
III. Configuration requirements of main components:
Serial name brand origin
1 PLC huichuan China
2 servo motor dongyuan Taiwan
3 servo drive east yuan Taiwan
Iv. Technical requirements and parameters:
1. Suitable for production of ganizational structure 5-18*10-40mm, with a speed of about 20 / min;
2. The outer diameter and height of the waist position of the product can be adjusted according to the customer's quality requirements. The runout of the sealing mold is ≤±0.05mm;
3. The sealing mold is imported from Taiwan, and the work is inlaid with tungsten steel, which is normally used for more than half a year;
(1). Yield: over 98%
Yield = (number of good products/number of products produced) * 100%
(2). Equipment operation rate: over 98%
Equipment operation rate = number of production/(production time/standard capacity) * 100%
4. Equipment with a complete set of tools and vulnerable parts (with a list) and a manual. The tuner shall provide party a with technical exchange, training and other services during the tuner adjustment.


cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
