12PPM Car Battery Production Line Automatic Pole Piece Adhesive Tape Cutting Machine

Negotiation, email communication
12PPM Car Battery Production Line Automatic Pole Piece Adhesive Tape Cutting Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Qualified: 99.50%
Weight: 1500KG
Voltage: AC220±10%
Warranty: One Year
Cut Edge Straightness(mm): ±0.02
High Light:

12PPM Car Battery Production Line


tape cut Car Battery Production Line


Battery adhesive tape cutting machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-23
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 60 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Automatic Pole Piece Adhesive Tape Cutting Equipment, Car Battery Production Line


1, material specification1.


Plate type W L
1 350-460 60-1500
Tape specifications 10-30 350-460


2. Technical parameters

Pole length can be cut (mm) <1000 1000~2000 Unlimited length (manual collector)
Cutting edge length error(mm) ±0.5
Length error of cut - off material area(mm) ±0.5
Cut edge straightness(mm) ±0.02
Cut the height of burrs(um) ≤20
production beat (ppm) 12 (750mmPole piece)
Bubble requirements Diameter less than 2mm
Adhesive paper covers the scope of coating area(mm) 0.5-2
Receiving way     Tilt down, manual material collection

3, performance characteristics

3.1,The pole piece coiling material is uncoiling automatically, the pole piece coiling material is kept automatically uncoiling by the stepper motor, the air swelling shaft expands the coiling material, the deviation is rectified automatically, and the coil is uncoiling automatically.

3.2. Tension mechanism: use gravity roller to maintain constant tension.

3.3. Refueling platform: when refueling, automatically press the front pole piece, press the new pole piece after replacement, cut off the pole piece and stick the front and back two pole pieces with adhesive tape.

3.4. Tape rolling mechanism: the stepping motor drives the tape rolling mechanism forward through the synchronous belt. After the tape is affixed to the pole, the motor moves to roll the tape. When in position, cut off.

3.5. Driving mechanism: after the sensor detects the coating layer of the pole piece, the stepping motor drives the cots to move forward, and drives the pole piece to go a fixed length to tape or cut off.

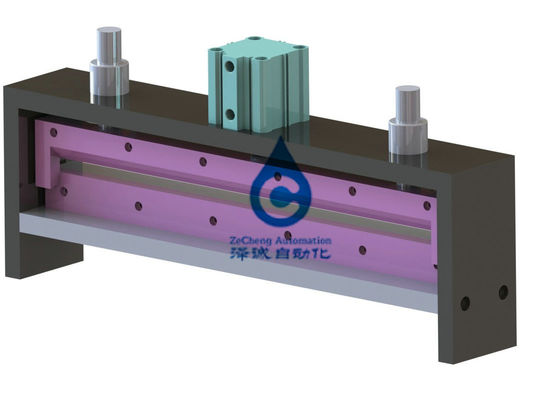

3.6. The position of cutter is fixed, and pneumatic driving cutter is used to cut off. When cutting off, the pole plate is pressed first and then cut off.No burrs, coils or cracks in cutting edge of pole piece or material area; There is no scratch and powder drop in the cutting edge of the pole sheet area.

3.7. During the whole cutting process, there is no stretching of the pole plate;No damage to any part of the pole, no pollution, etc.

3.8. The position of the detection sensor is fixed.

3.9. The fixed-length detection sensor of the pole slice is a magnetic gate sensor of length.

3.10, cut off the pole into the manual pick up stacked neatly.

3. Product use environment

Compressed air: 0.4 ~ 0.6mpa (4-6kgf/cm), flow rate of each set of compressed air is 10L/min, utilization rate is 50%

Ambient temperature: 20 ~ 35℃

Relative humidity: 5 ~ 55%HR

Power source: AC220V, single-phase;Voltage fluctuation is less than ±10%;Power supply: 3KVAVacuum degree: -101kp ~ -50kp.

cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
