High Reliability Car Battery Production Line Soft Pack Battery OCV Test Separator
1,Design requirements of OCV test separator for soft-pack battery:

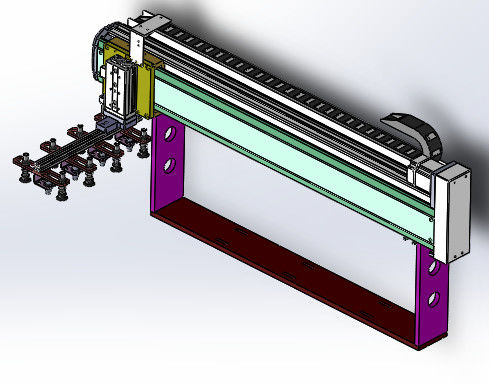

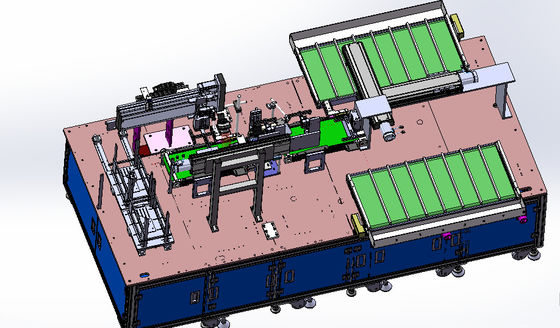

1. This equipment is a soft package battery OCV test separator technology based on the design requirements, based on the industrial design and manufacture of soft package 4.0 battery intelligent automatic OCV test separator, this production line includes: feeding conveyor line, feeding manipulator, tray collection station, voltage resistance measurement location on a single manipulator, voltage resistance measurement location, separation feeding manipulator, sorting feeding box
1.3. Conditions of use:
1.3.1 power supply conditions: main power supply: 220V±15%
1.3.2 compressed air: ≥ 0.5mpa, 10L/30Min
1.3.3 ambient temperature: 0℃ ~ 40℃.
1.3.4 relative humidity: 10 ~ 60%RH
1.4.Production requirements:
1.4.1 appearance requirements:
1.4.1.1 uniform appearance, no deformation;
1.4.1.2 no pinhole, flow mark, or other defects;
1.4.2 Size requirements:
1.4.2.1. Product width 35-100mm.
1.4.2.2 product length: 50-150mm
1.4.2.3 product wall thickness: 3.8-12mm
Main equipment configuration
| NO. | System composition | The system configuration | Quantity |
| 1 | transfer system | cylinder | 1 |
| Slippery course | 2 | ||
| 2 | Positioning system | Article positioning block | 4 |
| Machined part | 1 | ||
| bin | 2 | ||
| Picking platform | 1 | ||
| 3 | The elevator system | Lifting motor | 1 |
| Lifting screw set | 1 |
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
