Automatic Lithium Ion Battery Production Line Pull Dry Battery Plate Making Machine

1
MOQ
Negotiation, email communication
Price
Automatic Lithium Ion Battery Production Line Pull Dry Battery Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1500KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

Plate Lithium Ion Battery Production Line

,

Automatic Lithium Ion Battery Production Line

,

Pull Dry battery plate making machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-35
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Automatic Lithium Ion Battery Production Line For Pull Dry Battery Plate



1. This equipment is based on the technological design requirements of the production line of nickel-hydrogen and iron-nickel battery plate hair germ. Based on industry 4.0, the intelligent full-automatic production line of battery plate hair germ is designed and manufactured. The production line includes vacuum mixer, turnover barrel, automatic slurry conveyor, pulping machine, roller press, automatic online thickness measuring machine and punching machine. Automatic detecting machine for polar piece and automatic winding machine for waste.

Lithium Ion Battery Production Line Automatic production line for pull dry battery plate

3.5. Main components of equipment

2.3.5.1 Rewinding system: It is composed of motor, turntable, proximity switch and so on. Its structure is simple and practical. The Three-lobe support can be retracted and retracted at the same time. The motor can be automatically rewinded by proximity switch. Maximum diameter of unwinding 450mm.

2.3.5.2, Storage box assembly: Manually push the turnover barrel to the feeding position, the hydraulic system automatically lifts the turnover barrel, connects the interface, and the high viscosity pump automatically pours the slurry into the oblique hopper. After the level sensor detects the position, the conveying pump stops and the steel belt passes through the slurry.

2.3.5.3. Precision scraping system: This mechanism is mainly composed of scraper mechanism, steel belt leveling mechanism, blank mechanism, base and other systems.

2.3.5.3.1 Scraper plate mechanism: the mechanism consists of scraper board, scraper board straightness 0.005mm.

2.3.5.3.2 Blank Retaining Mechanism: The mechanism is mainly composed of scraper and pressure plate. According to the need, the size of scraper is 23.5 mm and 31 mm, two width sizes.

2.3.5.3.3 Steel strip leveling mechanism: The mechanism is installed under the scraper plate to shape and leveling the steel strip to ensure that the steel strip is leveled during scraping.

2.3.5.3.4 Base, the mechanism is mainly composed of base plate and positioning pin. The positioning pin ensures that the steel strip is easy to wear, load and unload, and the operation is simple.

2.3.5.4,Drying component: It is composed of structural steel, structural steel plate, rigid aluminium silicate fiber insulation material, heating pipe, infrared device, temperature controller, big wheel and so on. Each section is temperature controlled independently to ensure quality.

2.3.5.5, Corrective component: the servo motor, screw rod mechanism, laser inductor and roller constitute a good corrective effect.

In addition to the danger of artificial altitude correction operation. When the laser sensor senses the steel strip offset, the servo motor rotates.

The screw drives the axle of the roller to be offset so that the axes of the roller are parallel to the axes of the wheel, so that the steel strip can enter the assembly smoothly and the steel can be reduced.

It is easy to deform at critical temperature.

2.3.5.7, Automatic slurry conveying system: manually push the turnover bucket into the automatic lift truck, lock the buckle and turn the turnover.

The bucket is fixed, the lift truck rises, and the interface between the bucket barrel joint and the high viscosity pump pipeline is manually butted and locked. Pass in slurry tank

When the sensor detects that the slurry is below the set liquid level, it automatically starts the high viscosity pump, automatically transports the slurry, and reaches the set liquid level.

Sensor induction, high viscosity pump operation automatically transfer slurry to slurry tank.

Working principle and structure of high viscosity pump

2.3.5.7.1 Working Principle of High Viscosity Pump: The drive gear (outer rotor) with inner teeth drives the inner rotor to rotate in the closed pump body in the same direction, and the crescent plate of the pump body and front cover separates the suction port from the discharge port. When rotating, a negative pressure is formed at the suction port, and the liquid is sucked in. The rotor takes the liquid to the discharge port and discharges the pump body under pressure to complete the liquid transportation.

2.3.5.7.2 High Viscosity Pump Structure: High Viscosity Pump mainly consists of internal and external rotor, shaft, pump body, front cover, bracket, seal, bearing and so on. There are two types of seal: mechanical seal and packing seal. For medium with high temperature, high viscosity and strong corrosiveness, packing seal is selected. When transporting crystalline materials by high viscosity pumps, heat preservation jackets can be designed on the front cover and pump body. Steam or heat conducting oil can be used for heat preservation and melting during operation.

2.3.5.7.3 The main features of the internal viscous high viscosity pump are:

2.3.5.7.3.1 Pressure and flow pulsation are small (output pressure: 0 ~ 2.0MPa).

2.3.5.7.3.2 Self priming performance (suction pressure: vacuum -0.05 ~ -0.08MPa)

2.3.5.7.3.3 The viscosity range of conveying medium is large (1.0Cst-300000Cst).

2.3.5.7.3.4 Pump inlet and outlet can be turned and piping is convenient.

2.3.5.7.3.5 The shell is equipped with a jacket housing to realize the heating and insulation of the pump body (less than 250 degrees Celsius).

2.3.5.7.3.6 Stainless steel can be used to transport corrosive media.

2.3.5.7.3.7Packingsealormechanicalsealcaused.

2.5.8,Cache system: The power-free caching mechanism is adopted. When the steel strip is used up and needs to be replaced, the caching mechanism functions and is replaced manually to realize uninterrupted production.

2.3.6.Environmental requirements

Please provide lower energy medium.

2.3.6.1 Power Supply

2.3.6.1.1 Voltage AC380V + 10% three-phase four line transient change below 0.5s 1% below

2.3.6.1.2 The frequency is 50Hz + 1Hz

2.3.6.2,. Temperature: 5-35 C

Storage temperature: 0-40 C

2.3.6.3 Humidity 30-80% but not condensation.

2.3.6.4 No corrosive gas, liquid or explosive gas.

2.3.6.5 Equipment color requirements: according to the color plate or color number provided by Party A, computer grey.

2.4. Roller press

2.4.1.Equipment Overview

The equipment is mainly used to improve the precision of slurry-drawn plates, improve the surface uniformity and surface finish of sintered plates. The tolerance of plate thickness can be controlled at (+0.01 mm) to ensure the quality of plates.

2.4.2.Production process requirements

2.4.2.1 Roll size: 300X450mm, suitable for 0-400mm, thickness 5mm.

2.4.2.2 Effective working width of roll: 400mm.

2.4.2.3 Roll hardness: > HRC64 roll hardness layer thickness: > 12mm; hard chromium plated surface, at least three times grinding.

2.4.2.4 Roll Accuracy: Cylindrical jump of active roll and driven roll is 0.005mm, parallelism of axes of two rolls is 0.006mm, and product precision is within <0.02mm.

2.4.2.5 Roll surface roughness: Ra=0.8.

2.4.2.6 Roll clearance adjustment: 0 ~ 2mm (without special requirements with 0 to 1mm dial gauge).

2.4.2.7 The power of the whole machine is 4KW and 3KW is working normally.

2.4.2.8 The retractable device can be placed independently before and after (automatic line is not equipped with this device).

2.4.3.Equipment composition

Serial number system composition system configuration Brand or processing Number
1 rack system     1 sets
Welded skeleton structure A3 1
Substrate (steel plate phosphating black) 1
2 Caching system     1 sets
Caching roll 6 Caching roll
Machined parts 1 Machined parts
Cylinder 4 Cylinder
Feeding platform 1 Feeding platform
3 Roller assembly     1 sets
Alternating current dynamo   1
Frequency converter Preach 1
Active roller   1
Driven roller   1
3 Data collection system     1 sets
Thickness gauge Kean / divine vision 1
Pressure sensor   1
5 Control system     1 sets
PLC OMRON 1

2.4.4. Function index unit

The equipment is composed of unwinding component (optional), roll assembly, unwinding component (optional), and electrical control system. The whole machine is as follows: the length of the whole machine is 27500mm, the width is 1100mm, and the height is 1100mm. The color of the paint is white or designated

by customers

.

2.4.4.1 Rack system: welded by 4080 sides, solid and reliable. Substrate thickness 30mm, surface phosphating black treatment.

2.4.4.2 Data collection system: Keynes online measurement system is used to monitor the rolling clearance in real time and feedback to the system. The oil pressure system monitors the pressure data in real time and actively feedback data.

2.4.4.3 The roller assembly consists of frame, driving roller, driven roller, motor and so on. Hard chrome plating on roller surface. Roll hardness layer thickness: > 4mm; hard chromium plating on surface, at least more than 3 times grinding.

2.4.4.4,Cache system: The power-free caching mechanism is adopted. When the steel strip is used up and needs to be replaced, the caching mechanism functions and is replaced manually to realize uninterrupted Production



2.4.4.4 Winding components: from receiving tray, decelerating motor, steel plate welding rack, etc.

2.4.4.5 Control electrical system: The machine is equipped with electrical board independently, leakage switch, DC stability power supply and other power circuit components, PLC for control, relay device and so on. The connector is connected to the external terminal, using connectors and terminal blocks. PLC adopts OMRON. The ceiling part of the power cable has perforation. The cables and air pipes between other equipments are distributed and arranged at the lower part.

2.4.5. Energy medium

2.4.5.1 Power Supply

2.4.5.1.1 Voltage AC380V, three phase, frequency 50HZ; voltage fluctuation less than + 10%. Power 4KW.

2.4.5.2.atmosphere

2.4.5.2.1 Pressure 0.4 ~ 0.6Mpa, clean dry compressed air.

2.4.5.2.2 Traffic 10L/min.

2.3.5.6,Laser thickness gauge

2.3.5.6.1 Parameter table

2.3.5.6.1.1,C Frame scanning stroke: less than 350mm

2.3.5.6.1.2, Width of substrate: less than 300mm

2.3.5.6.1.3, Moving speed of polar plates: less than 20m/min

2.3.5.6.1.4, Thickness measurement range: less than 5mm

2.3.5.6.1.5, C frame scanning speed: less than 200mm/s

2.3.5.6.1.6, Thickness resolution: 0.1 M

2.3.5.6.1.7, Repetition accuracy: <+/-1.0 um (Repetitive/Stability Testing: Continuous 2-hour repetitive cycle mean or zonal mean range of polar plates <+/-1.0 um in the range of 3 Delta level)

2.3.5.6.1.8, System measurement frequency: >1kHz

2.3.5.6.1.9, Input power: 220 +/-10% VAC 50Hz 10A

2.3.5.6.1.10, Maximum power: less than 1KW

2.3.5.6.1.11, Laser wavelength: 650 nm visible laser 2B level (not allowed to look straight along the optical path and observe with optical instruments).

2.3.5.6.1.12, Laser power: Max 4.8 mW

2.3.5.6.1.13, Output: Industrial Network

2.3.5.6.1.14, Process data storage, network communication interface reservation

2.3.5.6.2,Structural description

2.3.5.6.2.1 Description and standard of mechanical structure

Serial number project Standard content Remarks
1 Measurement of tooling plane Natural marble flat, thick 100mm.  /
2 Cast iron C frame Die forming, surface grinding without damage  /
3 Roller Steel, 400/80; left middle right circle jump less than 0.02mm  /
4 Linear guide installation The parallelism of the marble ruler is less than 0.02mm  /
5 Wire rod installation The height of the screw ends is less than 0.05mm  /

2.3.5.6.2.2 Description and standard of scanner structure

Serial number project Standard content Remarks
1 Measuring rack electrical and mechanical installation The installation parts are locked, the stainless steel screws are locked, and the movement is smooth without noise. /
2 Fine tuning of scanner Fixed motion condition: dispersion is less than 0.2. /
3 Whole debugging of scanner 2-hour continuous scanning static polarographic repetition: range of periodic mean or zonal mean < 1.0um at 3 delta level /

2.3.5.6.2.3 Electrical cabinets, software specifications and standards

Serial number project Standard content Remarks
1 Cabinet installation Operation computers, electrical components, wiring, leakage protection and safety testing and troubleshooting.  /
2 Software Loading software (PLC, servo driver, measurement software and data analysis software) and functional items testing.  /
3 Factory test The factory has been testing continuously for 48 hours, and various functional items are re examined.  /

2.3.5.6.3 Sketch Map

2.3.5.7.3,Functional description

2.3.5.7.3.1 Main control interface and five line chart control instructions (schematic, final delivery software).

Explanation: In addition to the grey quality band of the midline and upper and lower limits of the thickness specifications determined by the product process, a preset alarm line (red) is added to form a 5-line control chart of the thickness range.

2.3.5.7.3.2 Fixed point measurement and edge detail inspection (schematic diagram, with actual delivery software as the criterion).

Description: Fixed-point measurement means that the C frame is fixed at a certain position and the polar plate is measured by periodic line scanning in the Y-axis direction, i.e. the Y-axis longitudinal scanning thickness measurement.

2.3.5.7.3.3 SPC analysis of data storage and volumedata

Description: Data is saved in a thickness data folder with a minimum resolution of 1 mm polar width; data is saved in the data folder of the PC hard disk directory and saved in Excel documentformat.

Description: SPC analysis software statistical samples for each volume of a single cycle (one scan) mean or a longitudinal interval range of a single cycle mean.

2.3.5.7.3.4 Other main functions:

The system calibration is a set of automatic actuators. When the C-frame is at the starting position (or the calibration position), the standard thickness block automatically calibrates the laser measuring system. This automatic calibration process will solve the small size change of the C-frame caused by the change of ambient temperature and structural stress.

SLG350 can write specified data to specified registers in socket form or MC protocol through Ethernet interface.

The system provides automatic overshoot alarm function, sound and light alarm and alarm condition is optional.

The system has the function of real-time recording work of length/temperature/humidity of auto-process pole reel, which greatly facilitates users'application of traceability of production process data. The length encoder is installed on the side of the guide roll to measure the length of the strip. A group of temperature and humidity sensors are installed in the C frame to synchronously measure and record the environmental temperature and humidity during the process.

The system is equipped with automatic gas blowing device, automatic blowing blowing calibration film and lower laser lens glass falling ash.

The control system adopts two-level design, PLC servo motion control and PC working alone, which can display and save massive production thickness data, facilitate inquiry and tracing, and facilitate the use of network data links to access database and other information management systems (such as MES system).

2.5. Punching machine

2.5.1,Equipment Overview

This machine is a pulping and punching equipment. The machine is initially fed into the feeding belt by the rolling machine and adjusted to a suitable position. After starting the machine, it enters the automatic working state.2.5.2,Specification and performance of punching machine

2.5.2.1,This machine is a special equipment for punching and cutting of polar plates. It requires safe and simple operation. The design of operation table is convenient for dust removal or brush cleaning.

2.5.2.2,After punching, the material strip should have flat edges and corners, no flanging, burrs and wrinkles, and the burr height perpendicular to the polar plane should be less than 0.08mm.

2.5.2.3,The maximum width of material strip can be 400 mm, and the punching length can be adjusted from 10 to 200 mm. The dimension deviation of material strip after punching is less than or equal to 0.10 mm, and the thickness of material strip can be treated is 0.15 to 1.5 mm.

2.5.2.4,After the 100*100mm rectangular pole is punched, the diagonal deviation of the pole piece is less than or equal to 0.20mm.

2.5.2.5,When the punching length is greater than 20mm, the punching speed is not less than 20 times /min.

2.5.2.6, The equipment can operate either on line or on stand-alone.

2.5.3, Equipment function index unit

This equipment is mainly composed of rack system, drive system, punching system and chargingsystem.

2.5.3.1,Drive system: automatic feeding mechanism, clamping pole piece automatic feeding, feeding length can be set in touch.

2.5.3.2,Punching system: After the drive system is fed with a fixed length, the pneumatic-hydraulic booster cylinder drives the die to punch. The die is made of tungsten steel, with a long service life of 1 million times.

2.5.3.3,Receiving system: Belt conveyor belt under the die, after punching, the pole piece automatically falls onto the conveyor belt, and automatically conveys the equipment.

2.5.3.4,Waste collection system: the motor automatically rotates and rolls, and automatically collects the waste belt after punching.

2.5.3.5,Electrical system: The machine is equipped with electrical board independently, leakage switch, DC stability power supply and other power circuit components, PLC for control, relay device and so on. The connector is connected to the external terminal, using connectors and terminal blocks. PLC adopts OMRON. The ceiling part of the power cable has perforation. The cables and air pipes between other equipments are distributed and arranged at the lower part.

2.5.4,Energy medium

2.5.4.1 Power Supply

2.5.4.1.1 Voltage AC380V, three phase, frequency 50HZ; voltage fluctuation less than + 10%. Power 4KW.

2.5.4.2.atmosphere

2.5.4.2.1 Pressure 0.4 ~ 0.6Mpa, clean dry compressed air.

2.5.4.2.2 Traffic 10L/min.

2.6, pole piece detector.

2.6.1. Design requirements for battery pole piece quality inspecting machine:

2.6.1. This equipment is based on the quality inspection requirements of sintered battery plate provided by Sichuan Changhong power supply customers. The battery plate inspector is designed and manufactured. Using the principle of CCD imaging, the powdered, scratched, cracked and sampled poles with surface quality problems are selected, and the qualified products are collected in the material box.

2.6.1.2. Technological process:



2.6.1.3. Battery capacity tester, production capacity and process parameters: plate production speed 20 /min adjustable.

2.6.1.4. Schematic diagram of equipment

2.6.2. Main configuration of equipment

Serial number system composition system configuration Number
1 rack system Rack Mount Kits 2
Substrate 2
2 Feeding system Material box assembly 4
Jack up assembly motor 1
Brush component 1
sensor 2
Cylinder 1
3 4 station sucker system servo motor 1
Sucker assembly 4
Cam divider 1
4 station rotary valve 1
Rotary disc 1
4 CCD detection system CCD 2
Bracket 2
light source 2
5 Conveyor belt system Positioning fixture 12
Conveyor belt 1
coupling 1
Machined parts 1 sets
Stepper motor 1
6 Blanking collection system Material box assembly 4
Jack up assembly motor 1
Brush component 1
sensor 2
Cylinder 1
7 Cutting manipulator system servo motor 2
coupling 2
Linear guide rail 4
Vacuum sucker 8
Ball screw 2
Cylinder 2
8 electrical system PLC 1
extend 2
Touch screen 1
Electrical components 1 batches
Computer 1 sets
9 software system Image processing software 1
Database storage system software 1




2.6.3. Technical parameters of equipment

Machine specification

Project

ZCCF02A
vacuum degree ≤-88KPa
Total power (kw) AC220V,50HZ 3KW
Normal operating power (kw) AC220V,50HZ 2KW
Weight 1.5T
Equipment productivity 95%
Equipment qualification rate 98%


2.6.4. Main equipment parts

The device mainly uses the principle of CCD imaging to magnify the surface of the polar plate and compare it with the standard polar plate to judge whether it is qualified or not. When there is no pole piece, the material box can be automatically switched. After the manipulator sucks the pole piece from the material box, it rotates 90 degrees. The CCD detects the bottom of the pole piece, rotates 90 degrees. The qualified product is put into the clamp on the conveyor belt, and drives the pole piece into the upper detection station, rotates 90 degrees again. The unqualified product is put into the waste box. Qualified products continue to move to the upper detection station on the conveyor belt, and after detection, they are automatically fed to the blanking station. Qualified products are put into the material box, and unqualified products are put into the wastebox

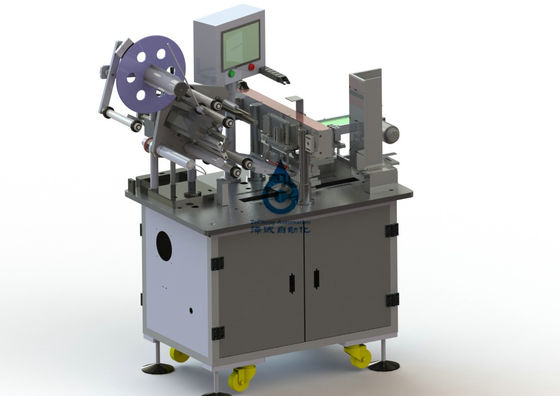

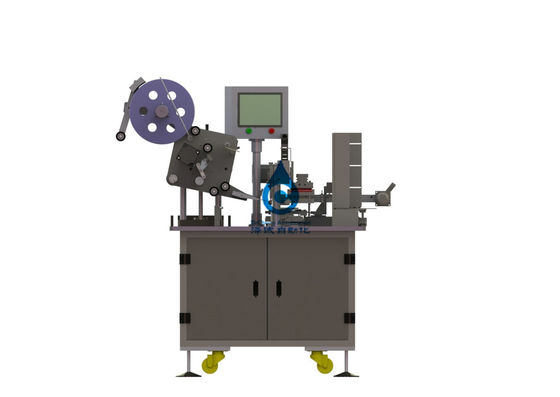

2.6.4.1 Frame system: 4080 square through welding, solid and reliable, the appearance of sheet metal seal, can effectively prevent dust from entering, the internal frame for electrical appliances, pneumatic components installation controls, using pneumatic and electrical installation separately. The base plate is 20mm thick steel plate, surface chrome plating treatment.

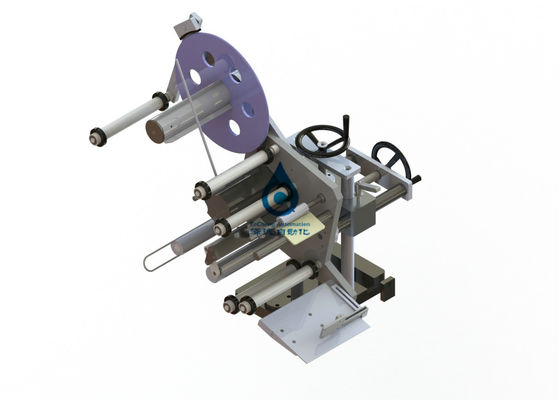

2.6.4.2. Feeding and blanking system: using laminating machine, general material box of sorting machine, duplex exchange, uninterrupted production is realized. The bottom of the material box is equipped with missing material sensor, which can alarm automatically when there is no material, and switch the material box automatically.

2.6.4.4,Rotary feeding manipulator system: 4-position rotary precision cam divider, 1-position polar sheet feeding, 2-position CCD detection, 3-position qualified products into the conveyor belt clamp, 4-position unqualified products into the waste box.

2.6.4.5Conveyor belt system: servo motor drives the conveyor belt to go fixed distance, and the conveyor belt is equipped with fixtures, which can effectively locate the poles.

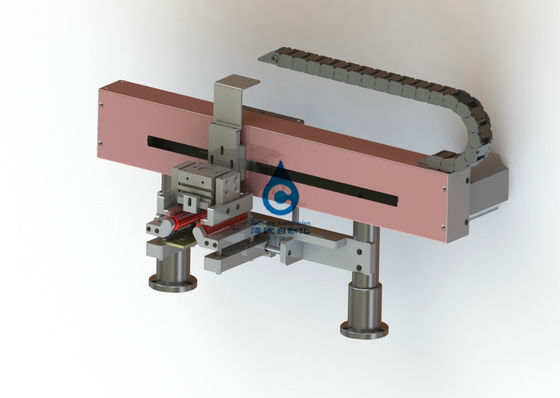

2.6.4.6. Cutting manipulator system: Servo motor or rodless cylinder drives the sucker manipulator to move on the guide rail, and automatically sucks up the poles and puts them into the corresponding material box

.2.6.4.7. On the cover system: the sheet metal welding structure, beautiful shape, unique seal structure design, effectively prevent the dust falling into the device.

2.6.5.Environmental requirements

Please provide lower energy medium.

2.6.5.1 Power Supply

2.6.5.1.1 Voltage AC220V + 10%

2.6.5.1.2 The frequency is 50Hz + 1Hz

2.6.5.2,. Temperature: 5-35 C

Storage temperature: 0-40 C

2.6.5.3,Gas source: 0.4-0.6MPa

2.6.5.4 Humidity 30-80% but not condensation.

2.6.5.5 No corrosive gas, liquid or explosive gas.2.6.5.6 Equipment color requirements: according to the color plate or color number provided by Party A, the computer is white.

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.

Recommended Products
Get in touch with us
Contact Person : Li
Tel : +86 15919498971
Fax : 86-755-33183262
Characters Remaining(20/3000)
