Large Battery Pole Piece Tape Cutting Machine 12PPM 380V Automatic Correction

Negotiation, email communication
Large Battery Pole Piece Tape Cutting Machine 12PPM 380V Automatic Correction
Features Gallery Product Description Request A Quote
Condition:: New
Year: 2022
Voltage: 380V
Effectiveness: 12PPM
Weight: 500 KG
Automatic Grade: Automatic
High Light:

Battery Pole Piece tape cutting machine


12PPM Battery tape cutting machine


380V Battery automatic tape cutting machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

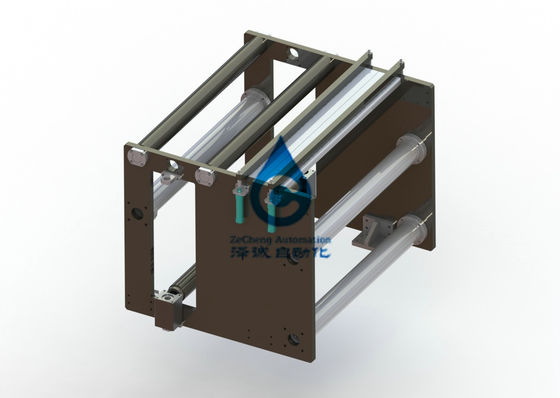

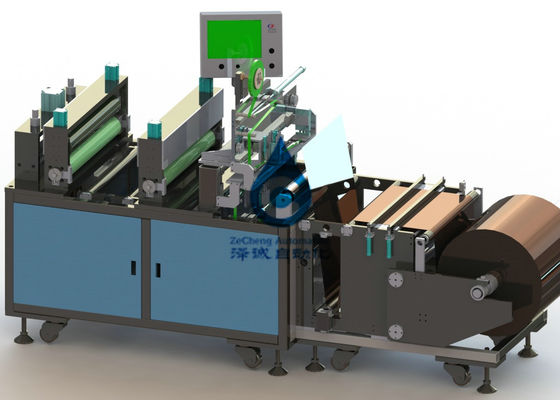

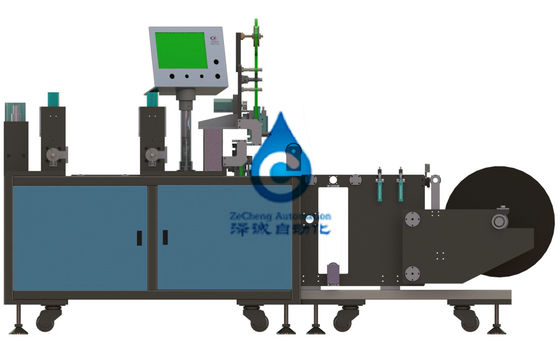

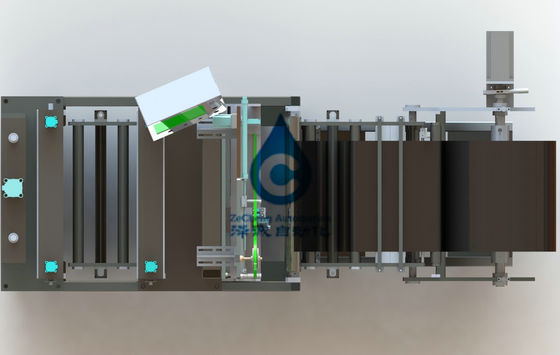

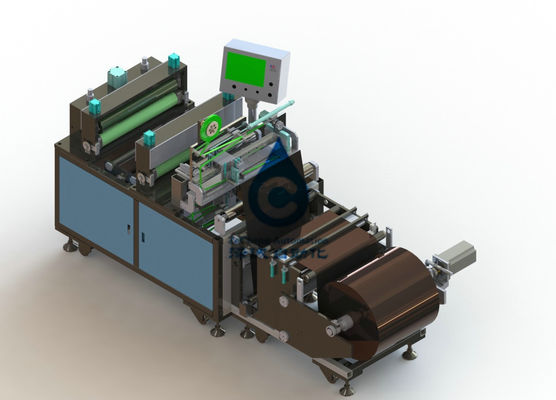

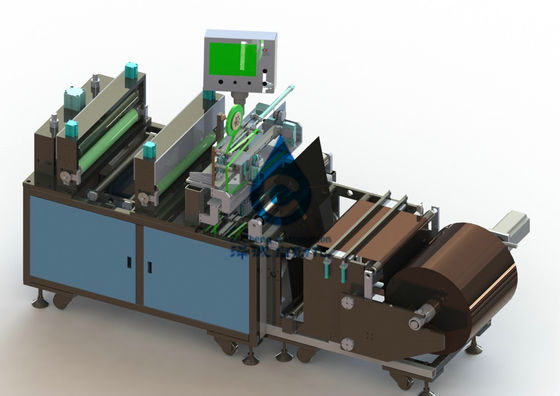

Large battery pole piece tape cutting machine automatic correction



1,material specification.
Product specifications
Plate type
Tape specifications


2, Technical parameters
Pole length can be cut (mm)
Unlimited length (manual collector)
Cutting edge length error(mm)
Length error of cut - off material area(mm)
Cut edge straightness(mm)
Cut the height of burrs(um)
Production beat( ppm )
12 (750mmPole piece)
Bubble requirements
Diameter less than 2mm
Adhesive paper covers the scope of coating area(mm)
Receiving way
Tilt down, manual material collection

3, performance characteristics
3.1,The pole piece coiling material is uncoiling automatically, the pole piece coiling material is kept automatically uncoiling by
the stepper motor, the air swelling shaft expands the coiling material, the deviation is rectified automatically, and the coil is
uncoiling automatically.
3.2. Tension mechanism: use gravity roller to maintain constant tension.
3.3. Refueling platform: when refueling, automatically press the front pole piece, press the new pole piece after replacement, cut
off the pole piece and stick the front and back two pole pieces with adhesive tape.
3.4. Tape rolling mechanism: the stepping motor drives the tape rolling mechanism forward through the synchronous belt. After the
tape is affixed to the pole, the motor moves to roll the tape.When in position, cut off.
3.5. Driving mechanism: after the sensor detects the coating layer of the pole piece, the stepping motor drives the cots to move
forward, and drives the pole piece to go a fixed length to tape or cut off.

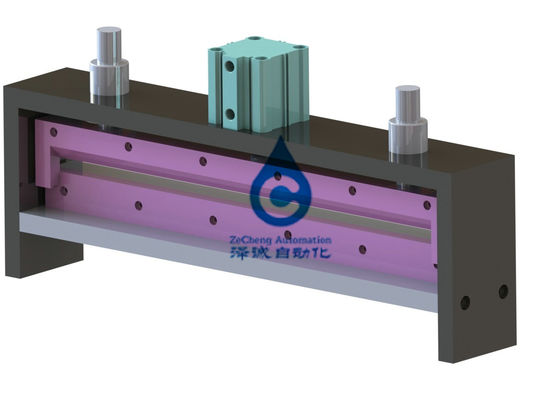

3.6. The position of cutter is fixed, and pneumatic driving cutter is used to cut off. When cutting off, the pole plate is pressed
first and then cut off.No burrs, coils or cracks in cutting edge of pole piece or material area;There is no scratch and powder
drop in the cutting edge of the pole sheet area.
3.7. During the whole cutting process, there is no stretching of the pole plate;No damage to any part of the pole, no pollution,
3.8. The position of the detection sensor is fixed.
3.9. The fixed-length detection sensor of the pole slice is a magnetic gate sensor of length.
3.10, cut off the pole into the manual pick up stacked neatly.

4. Product use environment
Compressed air: 0.4 ~ 0.6mpa (4-6kgf/cm), flow rate of each set of compressed air is 10L/min, utilization rate is 50%
Ambient temperature: 20 ~ 35℃
Relative humidity: 5 ~ 55%HR
Power source: AC220V, single-phase;Voltage fluctuation is less than ±10%;Power supply: 3KVAVacuum degree: -101kp ~ -50kp.
