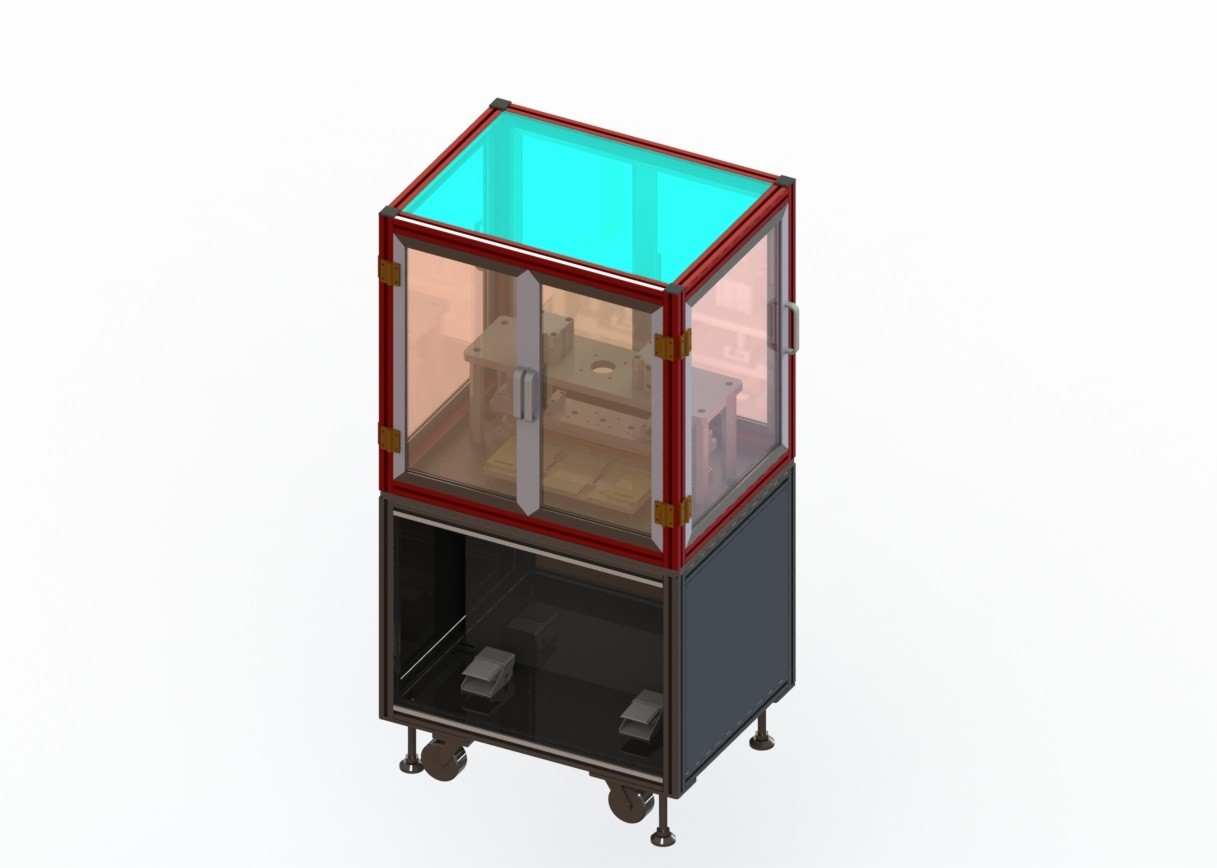

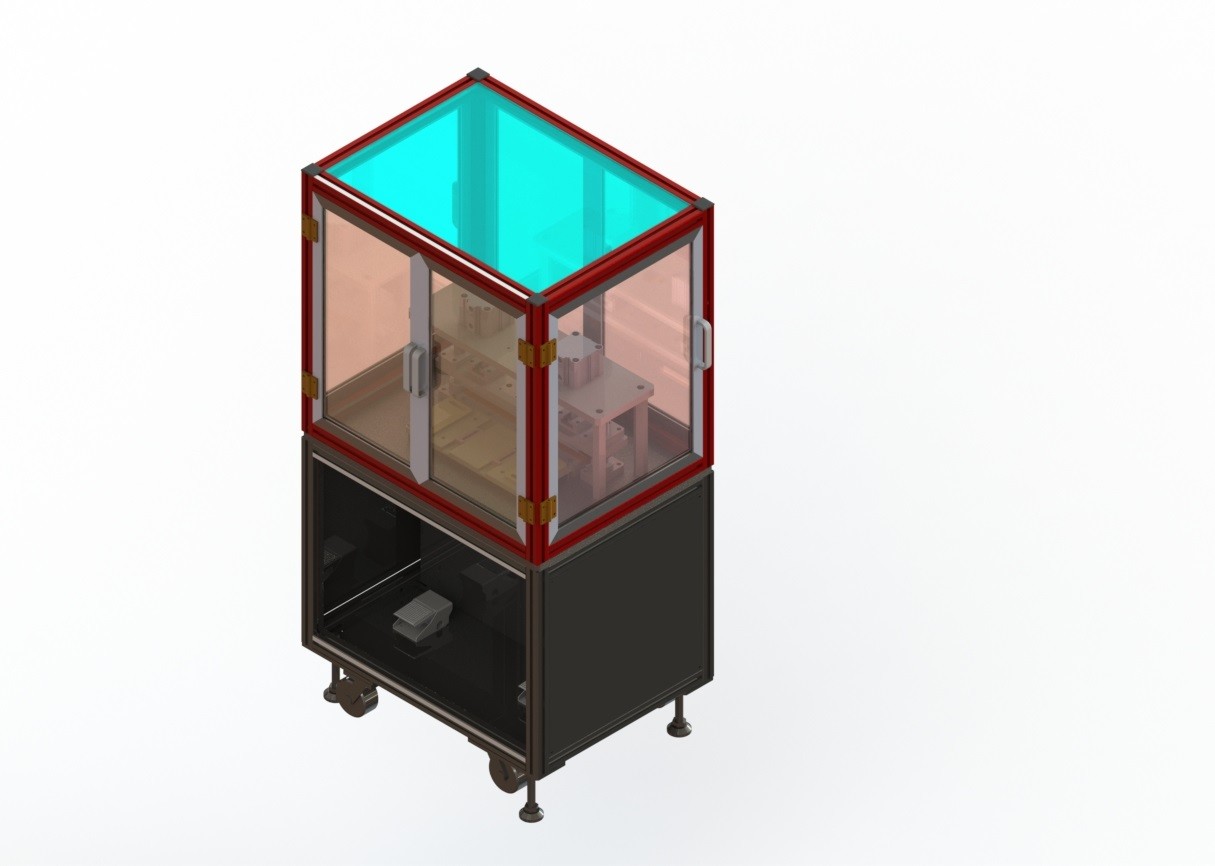

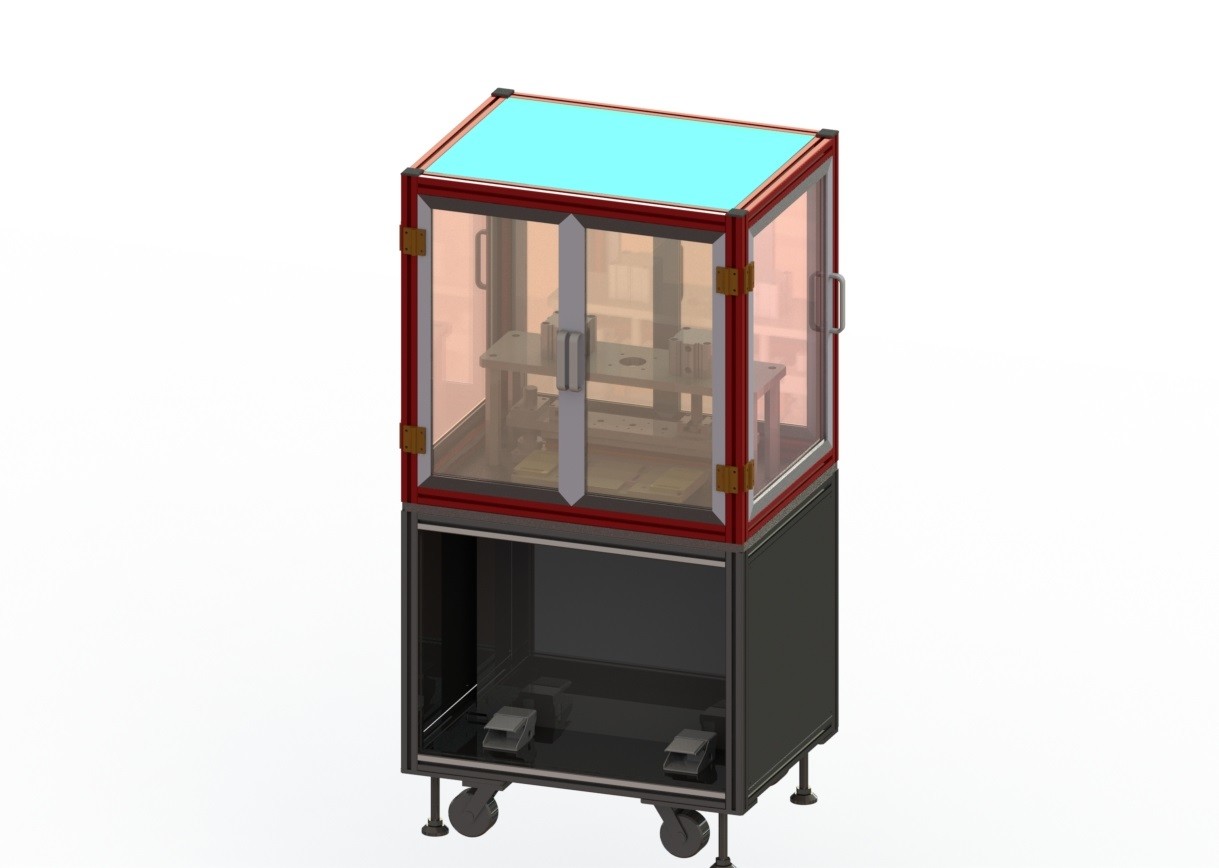

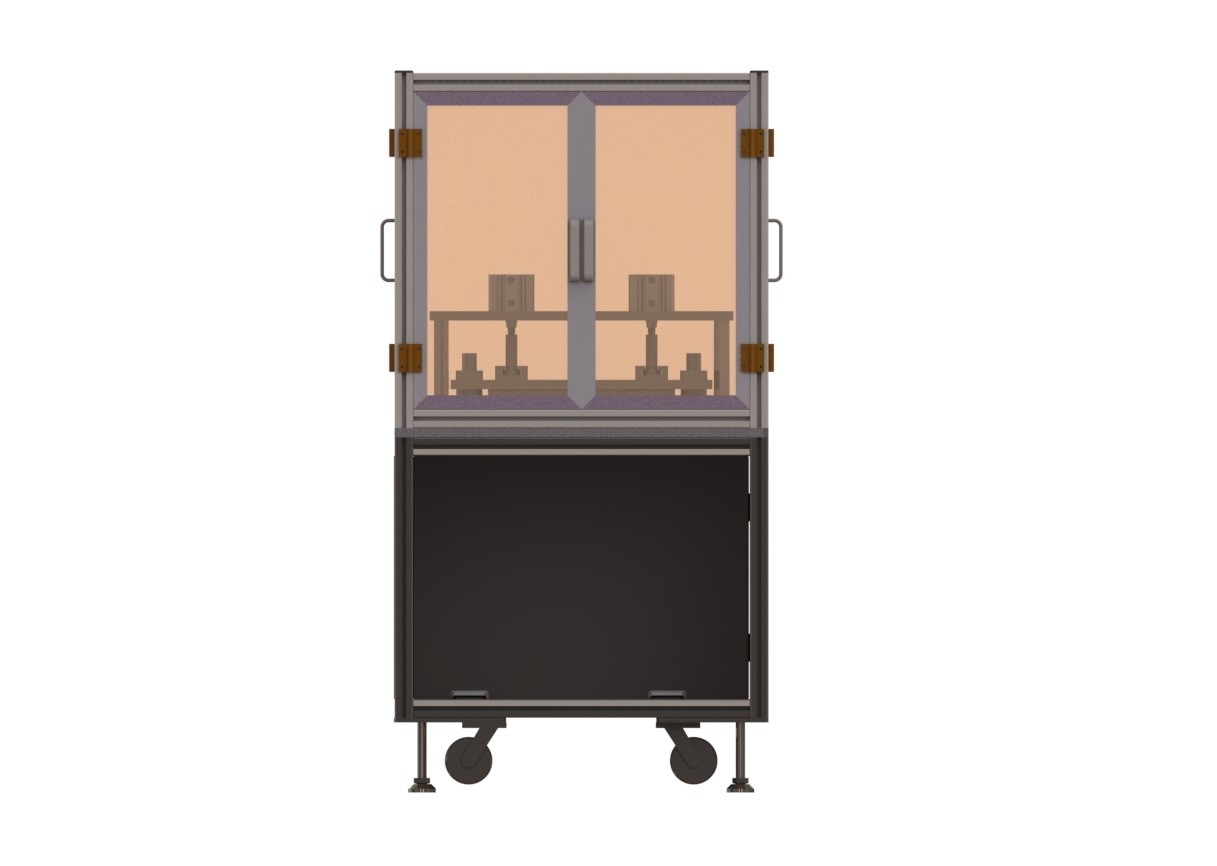

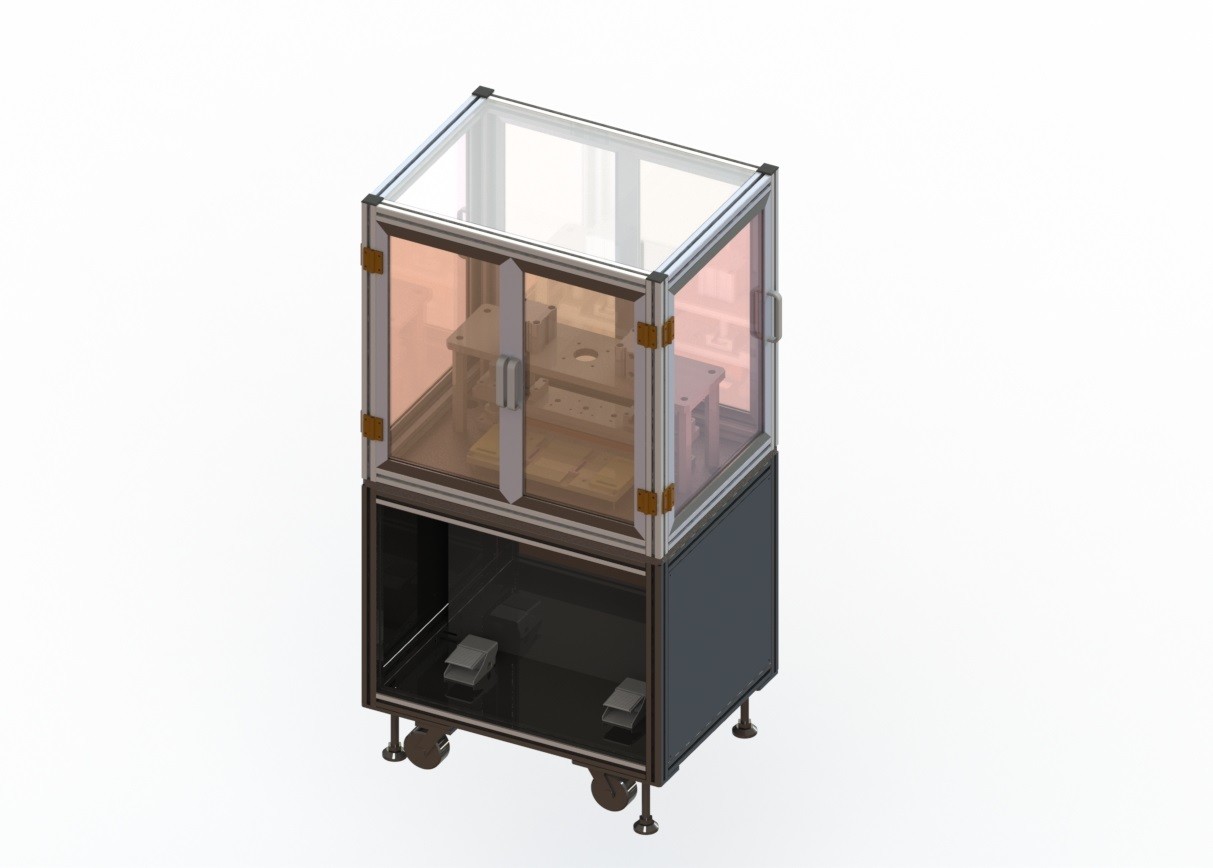

Laboratory grade battery pole piece punching machine processing equipment
Lithium Battery Production Line Laboratory battery pole cutting machine is developed by zecheng company, which is suitable for
experimental or small batch production.
The equipment USES the principle of gas-liquid supercharging to convert the small air
pressure into large hydraulic output.
The equipment appearance is beautiful, the design is scientific and reasonable, the operation is simple and convenient, the mold can be customized according to the customer's requirements.The operation is between manual andautomatic, suitable for coil and sheet materials;Manual continuous feeding, automatic discharging, and automatic waste
separation;No burr, powder, indentation and other quality defects;It is convenient and fast to replace the die (the life of die is
about 30,000 times);
Easy to operate, safe and reliable, beautiful appearance, small volume.

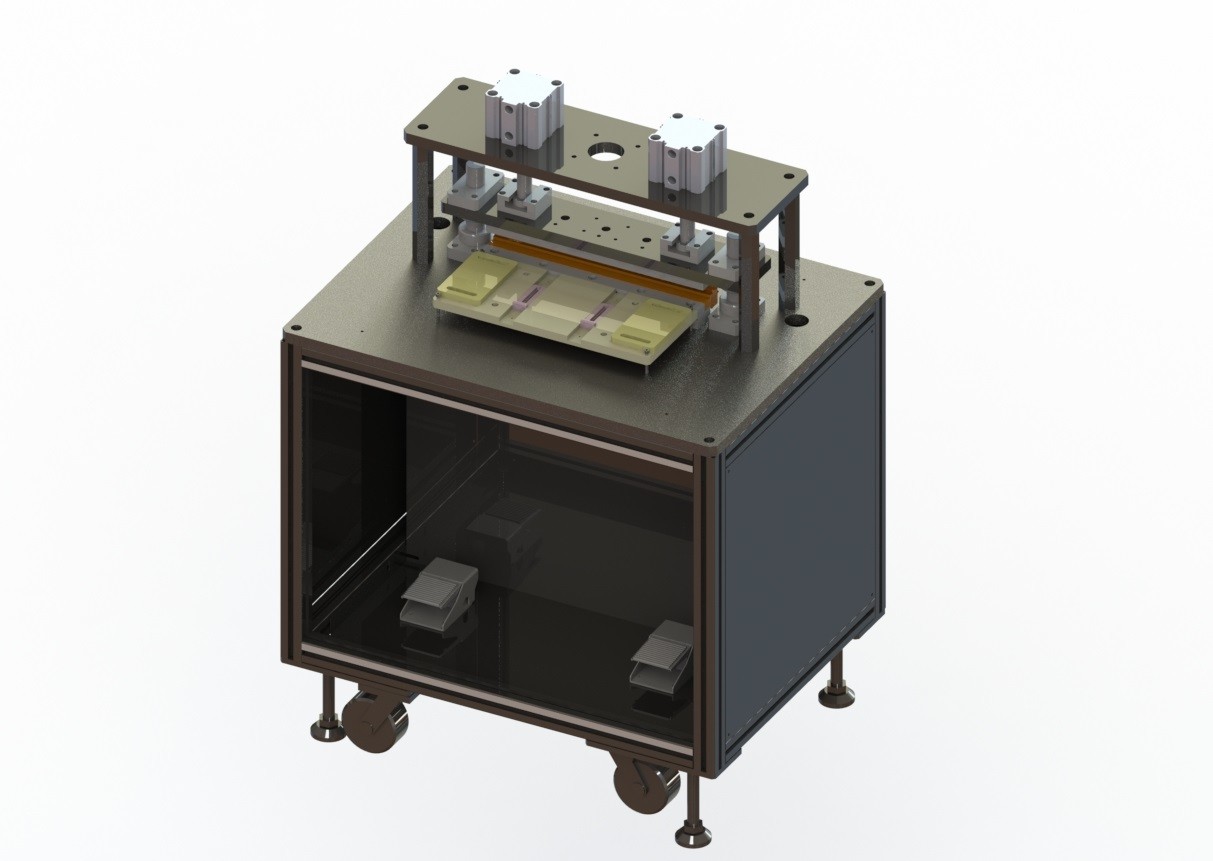

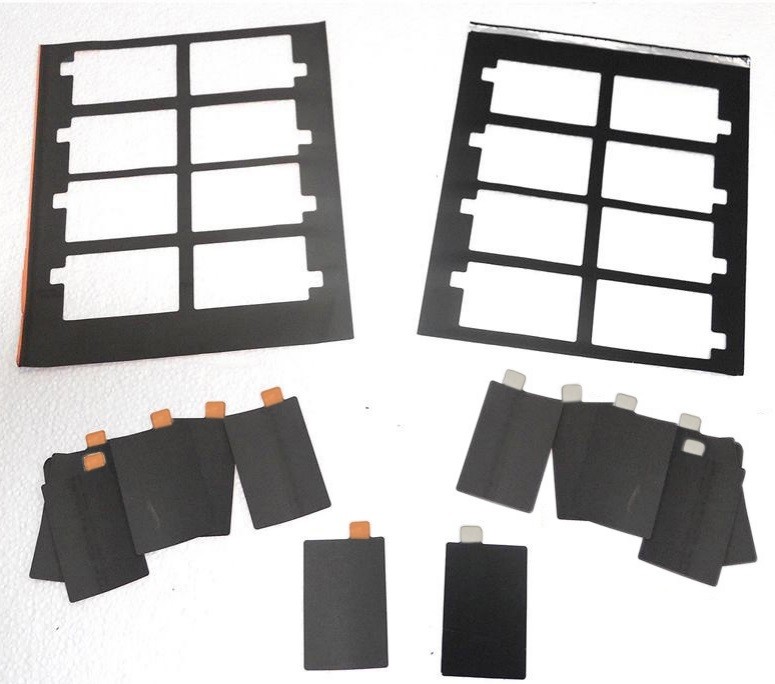

1. main features: 1.1, the use of infrared positioning device, accurate and convenient pole plate positioning die cutting; 1.2,It is convenient and fast to replace the cutting die; 1.3,Long life of die, normal use ≥ 30,000 times; 1.4,no burr, powder, indentation and other quality defects; 1.5, between manual and automatic, high efficiency of 800 ~ 2000 pieces/hour;(according to the size of pole cutting pieces, 1 to 8 pieces can be punched each time, and the standard is 2 pieces) 1.6. Adopt the structure of four guide columns, smooth up and down sliding with high precision; 1.7. The feeding port of the equipment is equipped with a safety light curtain, which makes the operation very safe; 1.8. Exquisite appearance, solid geometric design, simple and beautiful; 1.9, easy to operate, safe and reliable, small size 2. Performance indicators and basic configuration 2.1. Power supply: 100v-240v /60Hz 2.2. Work rate: 10W 2.3. Compressed air: ≥ 0.6mpa 2.4. Applicable specifications: maximum punching and cutting size: 250x250mm (the maximum punching and cutting size can also be unlimited according to customer requirements) 2.5. Battery plate thickness thickness: 0-0.5mm 2.6. Booster cylinder: 5T 2.8. Feeding method: manual 2.9. Equipment capacity: 800-2000ea /H 2.10. Punching and cutting accuracy: ±0.1mm 2.11. Weight: about 120KG 2.12. Volume product: 550X450X900mm
