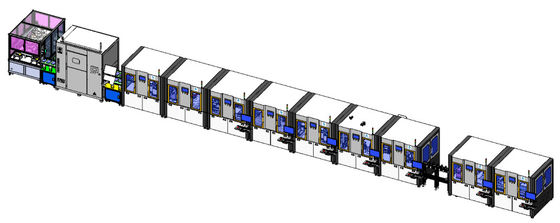

Square Aluminum Case Battery Assembly Line PLC Lithium Battery Production Line

NO.


Process name


Device name


Efficiency


Number of equipment


Characteristics


Supplier


1


hot-pressing


Fully automatic hot press


6


1


Multi-cell simultaneous hot pressing
The heating temperature is adjustable from 0 to 100 degrees, and the temperature precision is controlled within+/-1 degrees
Short circuit test, reject unqualified.DC 0-260V, insulation resistance ≥1MΩ, which can be set as required.Customer specified short circuit tester.
Reserved data interface for automatic data storage


Zecheng


2


X-RAY inspection


X-RAY detector


6


1


The battery enters X-RAY automatically.
Automatic detection of lug welding, pole piece alignment, lug and shell distance.
Reserved data interface for automatic data storage


Japan Federation/Real Estate


,3


Battery core binding


Electric core taping machine


6


1

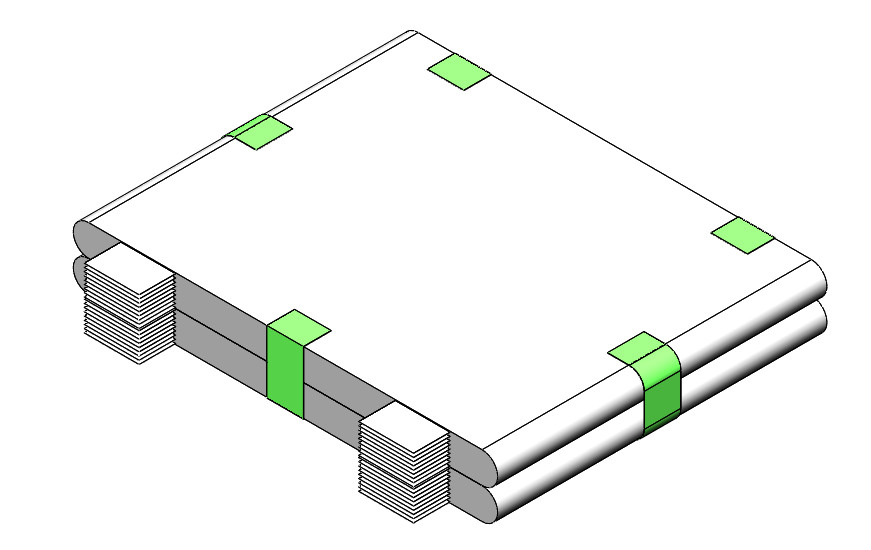

The battery core is pasted with 5 strips of adhesive tape, 1 strip of U-shaped adhesive at the head, 2 strips at both sides and 2 strips at the tail.
Tie up 2,2 cells


Zecheng


4


Pre-welding


Electric core lug pre-welding machine


6


1


Automatic ultrasonic pre-welding lug
Automatic tab cutting
Automatic dust clamping


Zecheng


5


Connecting piece welding


Connecting piece welding machine


6


1


Automatic Ultrasonic Welding of Pole Ears
Automatic dust collection


Zecheng


6


Cover plate welding


Cover plate laser welding machine


6


1


Cover plate tray loading
Laser welding
Tensile test (random inspection after setting the rated time or the rated quantity as required)
Automatic merging of reporting tapes,
Automatic cage mounting
Reserved data interface for automatic data storage


Zecheng


7


Battery core encapsulation


Electric core encapsulation cage assembling machine


6


1


Feeding cage material box
Automatic encapsulation of battery cells
After the 4 cells are combined, four layers of glue are pasted.


Zecheng


8


Cell envelope


Battery core coating machine


6


1


Feeding the diaphragm material box
Automatic coating, automatic L-shaped adhesive tape at bottom corner


Zecheng


9


Into the shell


Automatic shell machine


6


1


The manual cart puts the battery case
Automatic upper shell, automatic dust removal
Automatic shell entry
Automatic detection of shell force (thrust detection, alarm reminder)
Reserved data interface for automatic data storage


Zecheng


10


Laser welding


laser beam welding machine


6


1


Automatic feeding
CCD automatic detection
Laser automatic welding, welding power 1500W


Zecheng


11


Leak detection


Full automatic helium mass spectrometer


6


1


Automatic feeding,
Box seal
Helium Detection-Infukang


Zecheng
