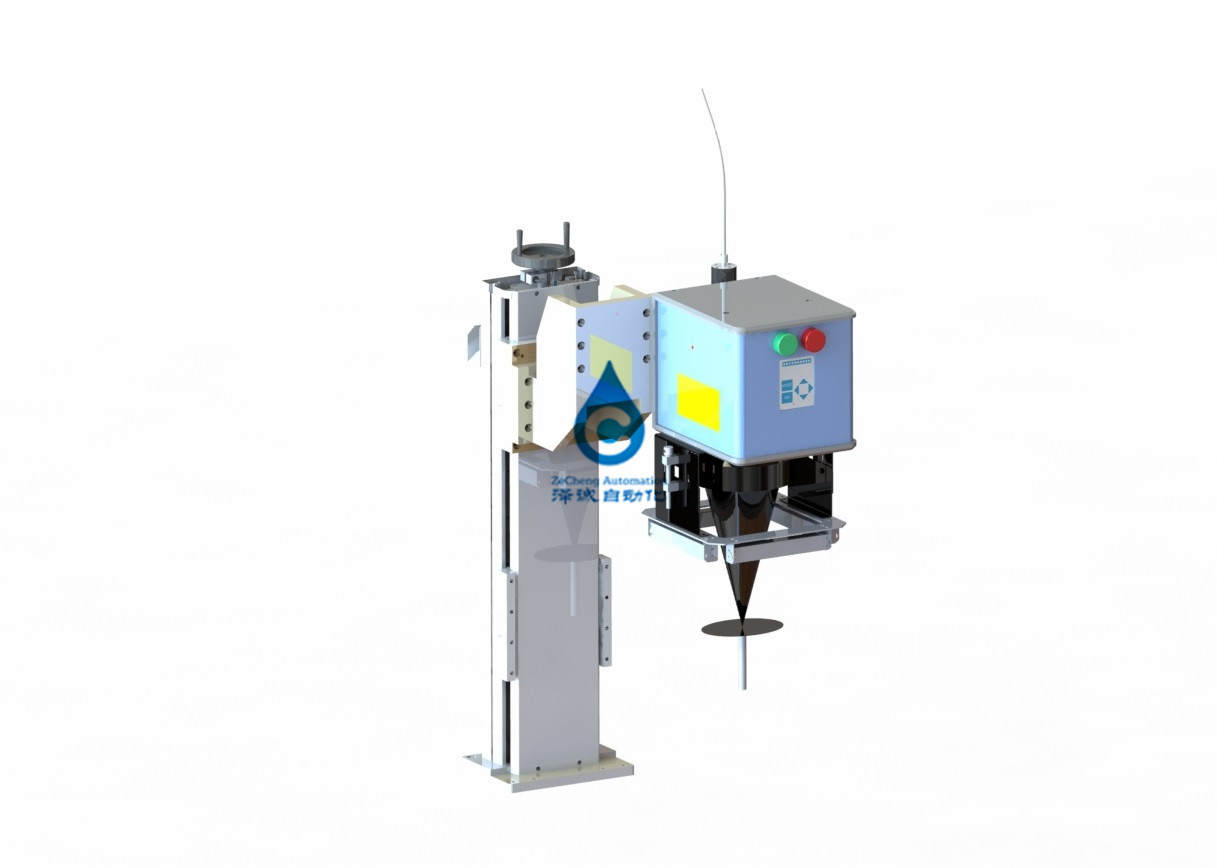

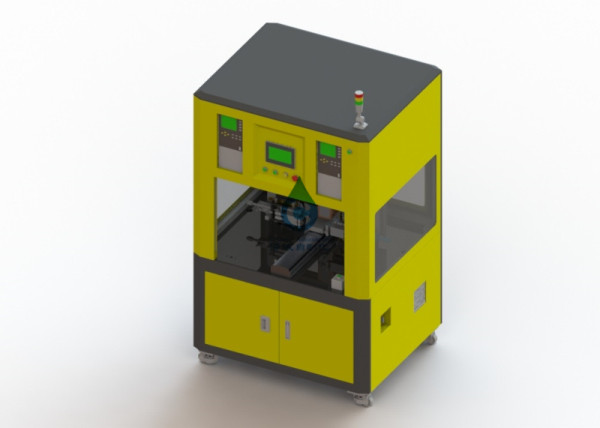

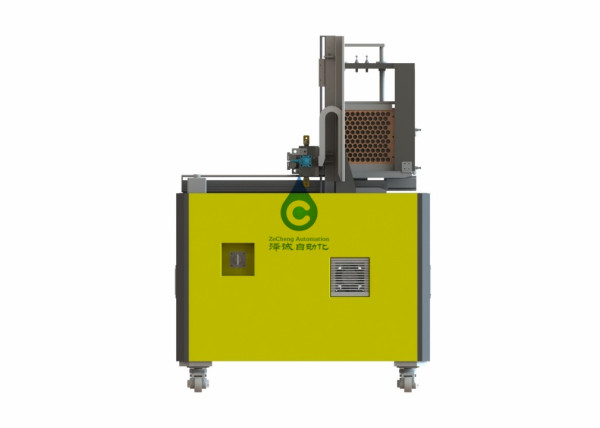

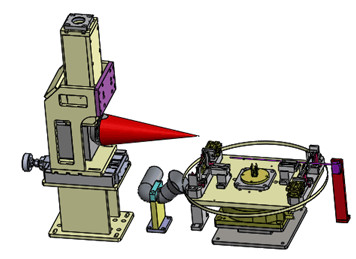

High-speed 0.1-0.3mm Laser Welding Machine for Cylindrical Battery

Negotiation, email communication
High-speed 0.1-0.3mm Laser Welding Machine for Cylindrical Battery
Features Gallery Product Description Request A Quote
Efficiency(PPM): 30
Welding Time(ms): 1-100
Compressed Air System: 0.4-0.7MPa
Outline(L*W*H): 1200*1000*1900
High Light:

0.3mm Semi Automatic Laser Welding Machine


0.1mm Semi Automatic Laser Welding Machine


0.1mm Battery Welding Machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZPBC02-00
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description


Semi-automatic welding machine for cylindrical battery 0.1-0.3mm



3.1 To adapt to the object

 Cylindrical cell size

Model Diameter (mm) Length(mm)
ZQA01B 18-35 50-80



3.2 Equipment technical parameters






Technical parameters

Efficiency(PPM) 30
Nickel layer thickness(mm) 0.1-0.3
XTrip(mm) 500
YTrip(mm) 500
Welding current(A) 500-5000Adjustable
Welding time(ms) 1-100Adjustable
Compressed air system 0.4-0.7MPaAir source provided by Party A
The total power(kw) 3
Normal operating power(kw) 2.5
Outline(L*W*H) 1200*1000*1900


3.3,Effect of welding



Mechanical specifications

41Rack housing system

The device has a stable and reliable welding skeleton. The substrate is made of steel plate with a thickness of 20-25mm and the surface is electroplated.

The outer cover adopts sheet metal and aluminum alloy structure, beautiful and generous


42Cylindrical battery welding fixture system

The cylindrical battery is manually discharged to the positioning fixture for accurate positioning


43Welding platform system

The servo motor drives the ball screw to drive the platform to carry out X-Y movement on the precise linear guide rail, and the pins on the cylindrical battery are distributed for welding.

The welding mechanism is symmetrical on both sides and welded simultaneously


45The operating system

Touch screen operation.There are startup, emergency stop, manual and automatic buttons

46Control system

The machine is independently installed with electrical board, internal leakage switch, DC stability power supply and other power circuit components, control with PLC, relay, motor control devices.

The connection with the outside shall be made by means of connector and terminal station.

PLC adopts Panasonic PLC.The ceiling of the power cable is perforated.Cables and air ducts between other equipment shall be wired and piped at the lower part


5Energy medium

Please provide the following energy media

5.1The power supply

1> Voltage  AC220V±10% <0.5s>1%One-time fluctuation is less than 1% in 0.5s

2>frequency 50Hz±1Hz


1>Pressure 0.5Mpa<5kgf/cm2>

2>Capacity 10L/min



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
