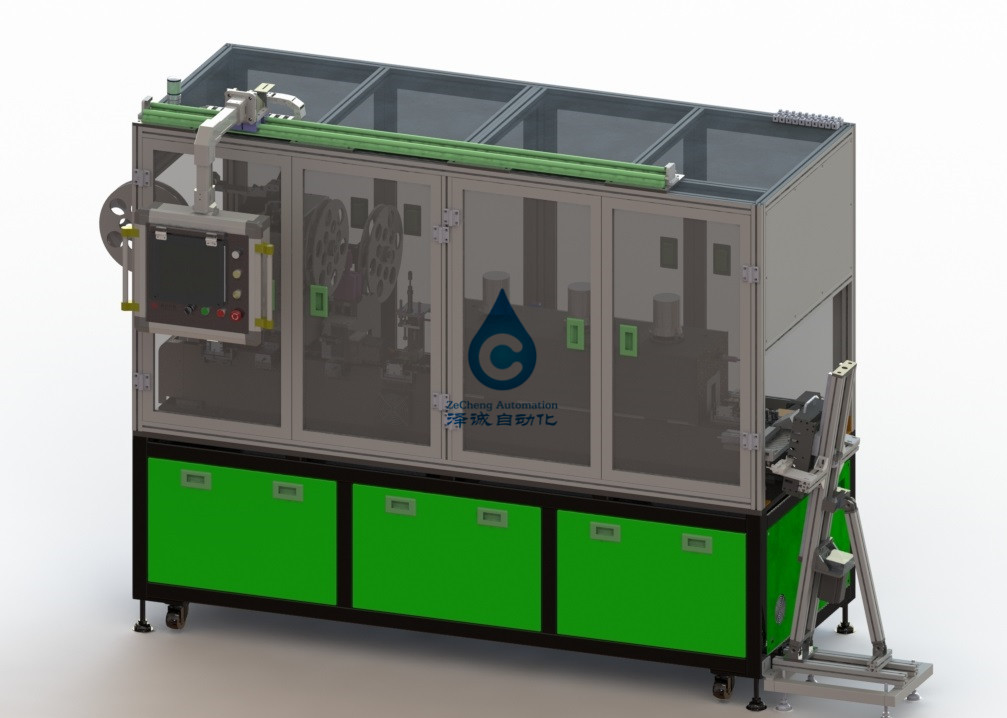

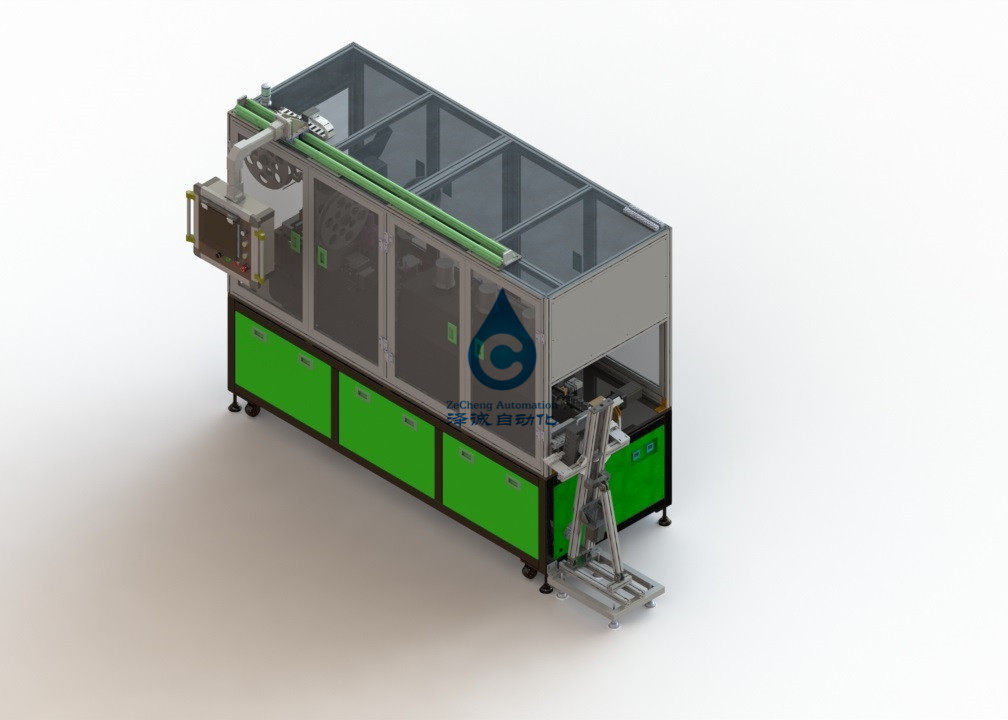

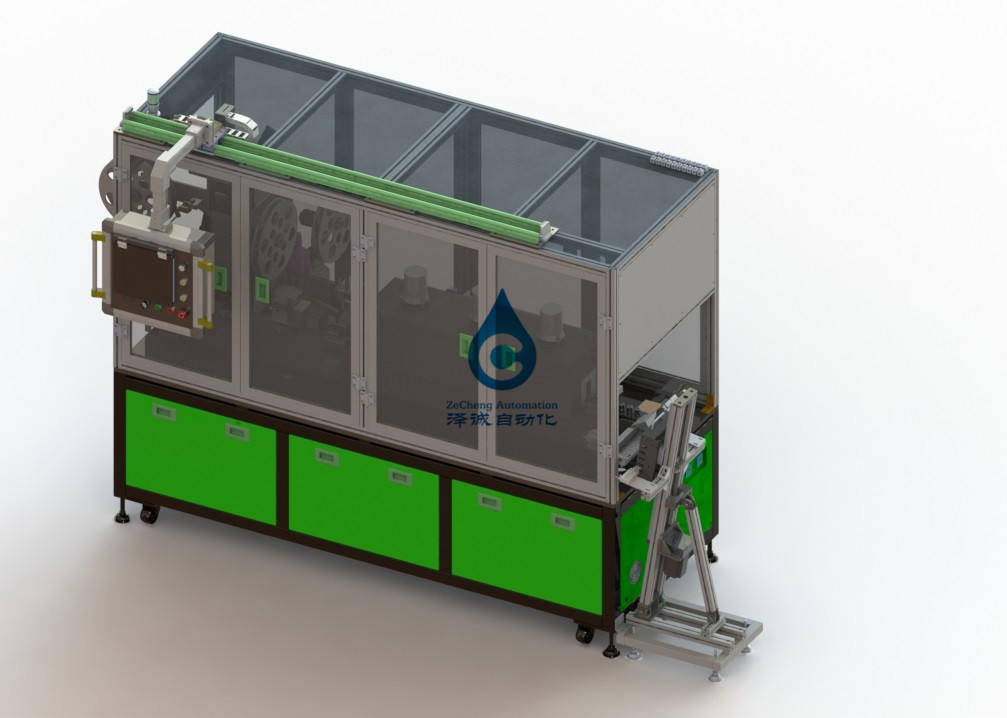

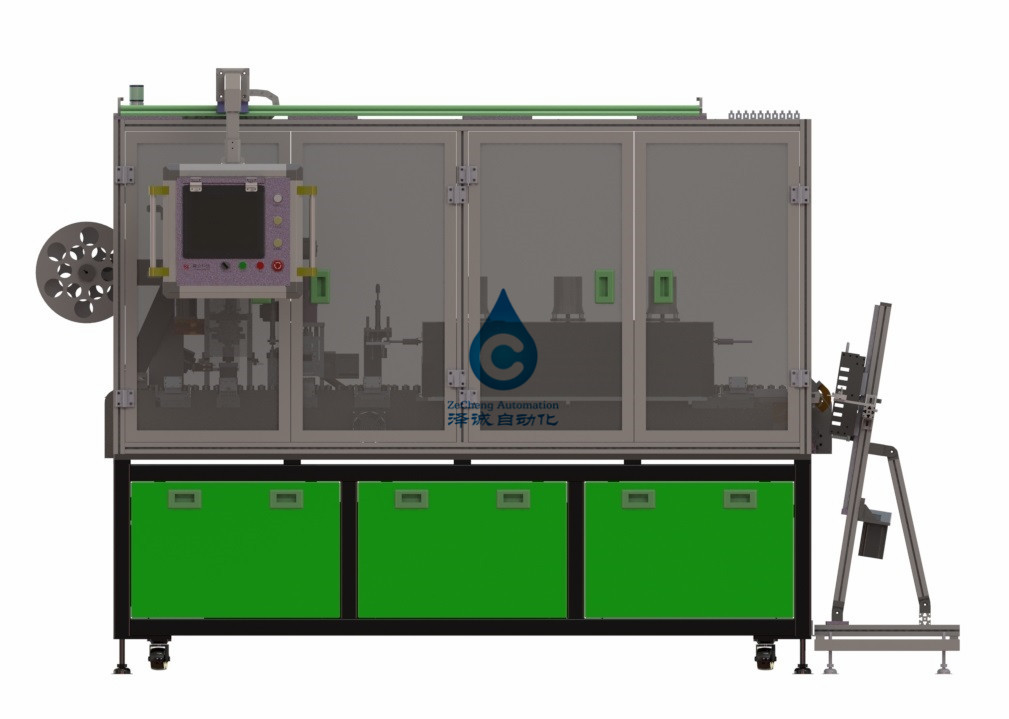

100 PPM/min Lithium Battery Production Line Custom Automatic Sleeve
18650 ,26650,Non-Standard Custom Automatic Sleeve Lithium Battery Production Line Outer Film Sticker Device
1. Introduction of equipment function and principle
Used for automatic PET/PVC sleeve of 18650 cylindrical battery, plus positive insulation pad and heat shrink forming. The whole machine adopts chain conveying structure.
The battery is adsorbed on the high temperature magnet base, and the chain is transported step by step to complete the heat shrinkable tube of the positioning sleeve, the insulation sheet of the positioning punch top, the secondary positioning and the heat
Wind shrinkage and other functions.
2. Equipment action flow
Punch top insulation sheet → bushing height → secondary positioning → heat shrinkage → discharge
3: technical parameters of the equipment
| The basic parameters | |
| Single machine efficiency | P100PPM |
| Chain linear velocity | Variable frequency adjustable 0-3m/Min |
| Product pass rate | 99.50% |
| Device rotation rate | 98% |
| Die life | + / - 0.3 mm |
| Die life | 800000 times or more |
| Thermal shrinkage temperature | Room temperature - 200℃ adjustable, precision ±2℃ |
| The noise | 60 db or less |
| Plant configuration | |
| The compressed air | Acuity 0.6 MPa |
| The input voltage | 380 v / 50 hz, 25 kw |
| Tap water | Provide 1 inch water pipe interface to the equipment installation bit |
| Waste water discharge | Provide 1 inch waste water discharge pipe interface to the equipment installation bit |
4. Main components of the equipment
| NO | The name of the | The content is introduced |
| 1 | Feeding mechanism | 1 set, docking front equipment, automatic blanking. |
| 2 | Set the organization | 1 set, including coil unwinding, guide bar, guide bar, guide servo motor, rotary ring cutter, hot shrinkable tube high bottom of the secondary accurate positioning; The battery is driven by the cylinder V block to realize the accurate positioning of the battery. To achieve the heat shrinkable tube length feeding, automatic ring cutting. More recharging roll using tape link, ensure continuity and easy to operate. The cutter is guided by a guide sleeve to ensure the accuracy. The rotary ring cutting of the blade is driven by a stepping motor. |
| 3 | Automatic insert insulation mechanism | One set, including insulated film unwinding, stepper drawing and pneumatic die cutting, scrap rewinding. To realize the punching and cutting of the positive insulation rubber pad, the battery is expected to be extreme automatically. The waste has a winding mechanism winding. |
| 4 | Position correction mechanism | 1 set, correct the position of the battery and the magnet fixture before thermal shrinkage, make the magnet stick in the bottom of the battery, ensure that the bottom package edge will not touch the magnet in the heat shrinkage, avoid the bad bottom roll edge. |
| 5 | Heat oven | 1 set, hot air shrinkage furnace, hot air circulation distribution in the furnace, hot air temperature uniform, accurate control, the conveyor chain walking in the furnace battery rotation, to ensure the heat uniformity of the heat shrinkable tube, heat shrinkable tube shrink close to the battery surface and keep beautiful. |
| 6 | Transport mechanism | 1 set, mainly composed of chain sprocket and step drive, completes the step feeding of the battery, and then loads the battery into the sleeve, rubber pad, heat shrinkage, discharge and other functional areas. Each chain plate is equipped with a magnetic platform adsorption battery. |
| 7 | rack | 1 set, 50 square welding. |
| 8 | The man-machine interface | 1 set, rotate the man-machine interface. |
Commitment
1. New equipment promise
Our company guarantees that all the components of equipment will be in completely new condition, none used components.
2. Confidential commitment.
Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.
3. After-sales service commitment
Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.
