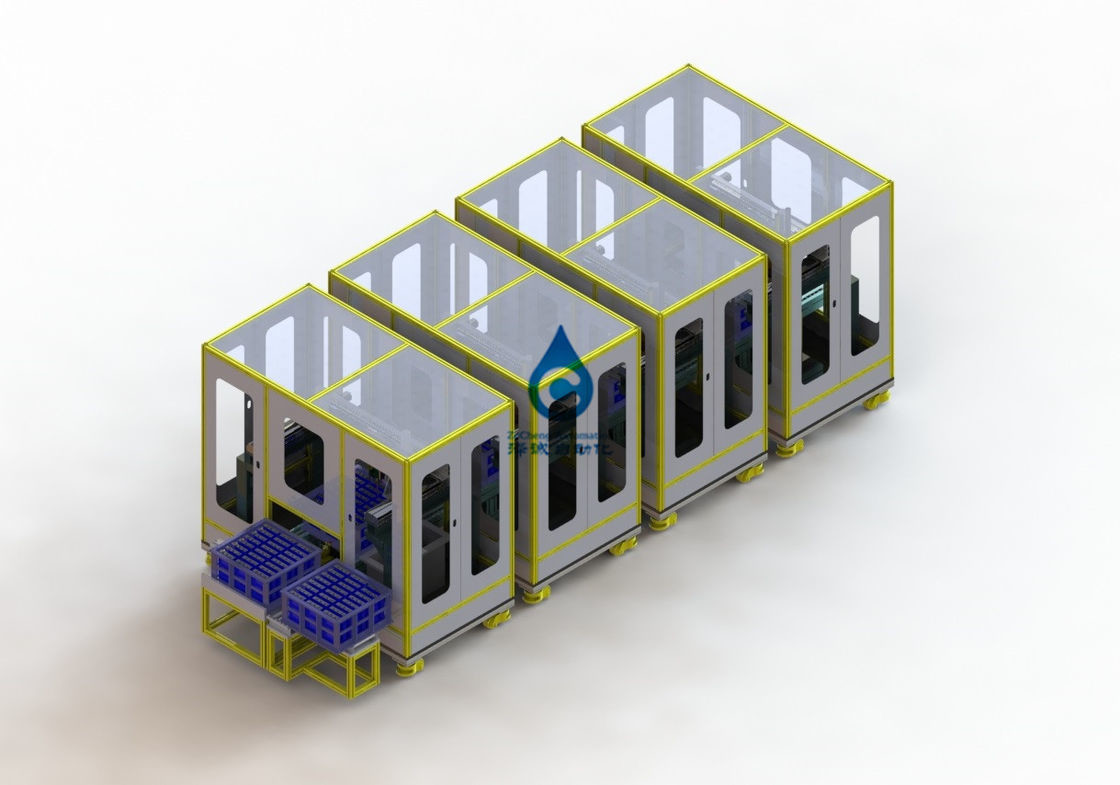

High Accuracy Laser Welding Machine

1
MOQ
High Accuracy Laser Welding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Equipment Efficiency: 4 PPM
Weight: 1500KG
Warranty: 1 Year
Voltage: 380V
Name: High Accuracy Laser Welding Machine
High Light:

laser welding equipment

,

laser welding device

,

4PPM Laser Welding Machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-92
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

High Accuracy Laser Welding Machine Semi Automatic Laser Sealing Machine



Injection hole laser welding

  1. Equipment overview

This is shown in the following table

Table 16 equipment overview

Device name Sealing nail welding machine
The power supply requirements 380 v + 5%, 50 hz; Rated power: ≤15KW, rated current: ≤16A; Distribution: L + N + PE
Working time 24H (continuous operation)
Failure rate ≤1%
Percent of pass ≥99%(according to quality test)
staffing 1 person (loading and unloading)
Equipment efficiency 4PPM


3. Welding unit



The welding unit mainly includes the motion system, CCD visual positioning system, welding protection system, monitoring system, jig, dust purification system and welding control system, as shown in the figure below.



Workbench to implement A, B two worktables switch, manual for A location clamping batteries, click the start button, and, after the completion of the clamping cylinder automatic clamping, welding welding head moved to A location, at the same time, artificial to B location clamping batteries, A station after welding is complete, click the start button, welding head moved to the location of welding, B in B station during the welding process, artificial to A location clamping materials and new materials, to A, B two station cycle.

5. Laser

Using fast TruDisk3002 disc laser.

6, optical fiber

The fiber adopts llk-d standard plug imported from Germany, with a core diameter of 200um and a length of 30 meters

7. Laser welding joint

The laser welding joint adopts PFO type laser welding joint.

8. Water cooler

The water cooler adopts the recommended brand of the chiller to ensure the stable work of the laser.

15. After-sales service

Equipment manufacturers will adhere to the "market-oriented, customer-centered, technology-guaranteed, service-backed" business service concept, abide by the commitment, in strict accordance with the technical agreement requirements for customers to provide quality products and industry top services. Make the following service commitment:

1. The warranty period of the equipment and accessories shall be one year from the date of acceptance by the buyer (excluding consumables such as xenon lamp and lens). Equipment failure caused by abnormal factors such as equipment relocation, environment and people is not included in the warranty.

2. Provide spare parts repair and replacement services free of charge within the warranty period.

3. Within the warranty period, if the equipment fails or cannot be produced, the equipment manufacturer will respond within 2 hours. After receiving the notification of the quality problem of the equipment, it shall be solved within 24 hours in the province and within 36 hours outside the province by sending personnel to the site to solve the problem within 2 days.

4. After the expiration of the warranty, the replacement parts are charged according to the preferential price of the market, and other fees are calculated according to the actual occurrence.

5. From the date of purchase, the equipment will enjoy lifelong free software maintenance and upgrade.

6. After the warranty expires, after-sales service response time is 2 hours, quality problems in equipment equipment manufacturer after receiving notice within 24 small province, fujian association of foreign languages and 36 hours, send someone to the scene to solve the problem, maintenance of equipment only hours and transportation fee, involving equipment spare parts replacement and purchase, only charge the cost.

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.

High Accuracy Laser Welding Machine 0High Accuracy Laser Welding Machine 1High Accuracy Laser Welding Machine 2High Accuracy Laser Welding Machine 3
