Aluminum Laser Welding System For Square Or Round Battery Cover Plate

1
MOQ
negotiable
Price
Aluminum Laser Welding System For Square Or Round Battery Cover Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Work Environment: Glove Box
Overall Dimensions Of Equipment: 4500X1800X1900mm
Equipment Power: 12KW
Shielding Gas: Argon Gas
Voltage: AC220±10%
Name: Aluminum Laser Welding Machine
High Light:

laser welding device

,

ultrasonic welding equipment

,

battery cover plate laser welding machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZDAE05 -00
Payment & Shipping Terms
Packaging Details: The wooden case
Delivery Time: 90 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Product Description

Aluminum Laser Welding System For Square Or Round Aluminum Battery Cover Plate



1, Equipment overview is shown in the following table

Device name Square cap welding machine
The power supply requirements

Three-phase 380V±5%, 50Hz

Rated power: ≤12KW

Rated current: ≤60A

Environmental requirements Temperature 5-40℃/ humidity 10-90%
Gas supply demand

Air < 0.2m cubed /h, pressure ≥0.6Mpa

Nitrogen < 0.2m cubed /h, pressure ≥0.4Mpa

Working time 24H (continuous operation)
Failure rate ≤2%(only caused by equipment)
Percent of pass ≥98% (excluding abnormal incoming materials)
staffing 1 person (loading and unloading)
Equipment efficiency 1 PPM or higher



2, Equipment structure

The equipment mainly consists of laser host and welding workstation.

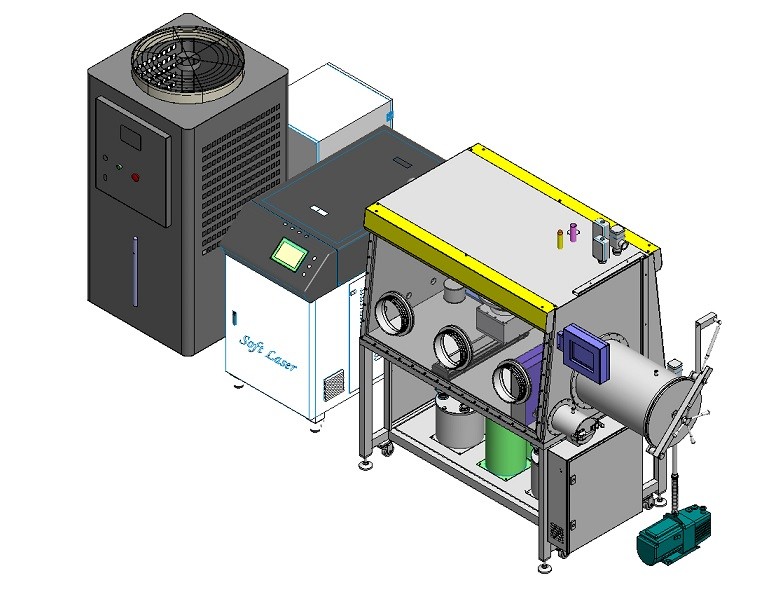

The equipment structure is shown below

Aluminum Laser Welding System For Square Or Round Battery Cover Plate 0

3 , Equipment configuration

The main configuration of the equipment is shown in the table below

unit instructions Quantity
Welding station Welding fixture system   1
Laser motion system Three axis 1
Monitoring system   1
Welding protection system   1
Dust cleaning system   1
cleaning system columns 2
Welding control system   1
Laser host laser

China Max/2000 w

1
Water cooling machine DOLUYO / 2 p 1
Laser welded joint import 1


4, welding workstation

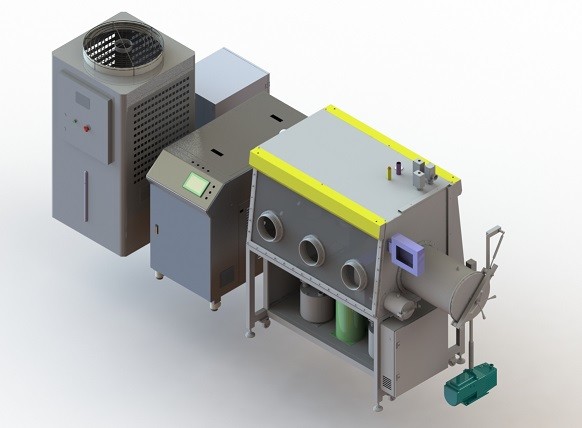

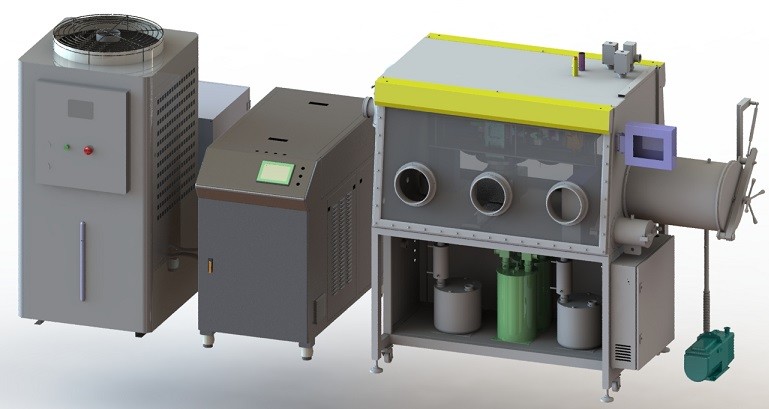

The welding unit mainly includes movement system, welding protection system, monitoring system, fixture, dust cleaning system and welding control system. The welding table is shown in the figure below.

Aluminum Laser Welding System For Square Or Round Battery Cover Plate 1

Aluminum Laser Welding System For Square Or Round Battery Cover Plate 2
