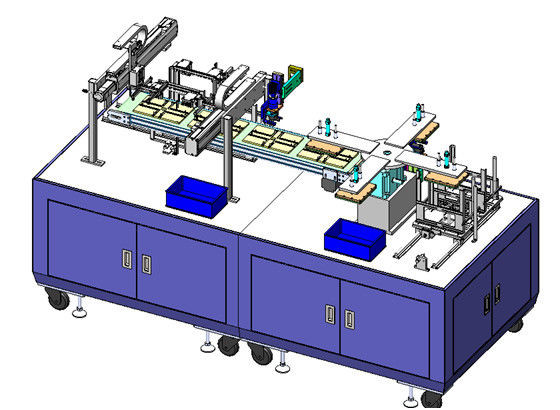

High Efficiency Automatic Lamination Machine

1
MOQ
Negotiation, email communication
Price
High Efficiency Automatic Lamination Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1500KG
Voltage: AC220±10%
Warranty: 1 Year
High Light:

automated laminator

,

automatic laminating system

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-56
Payment & Shipping Terms
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

High Efficiency Automatic Lamination Machine Pole Quality Detector 1 Year Warranty



1. Design requirements of the quality inspection machine for battery electrode:

1.1. Based on the quality inspection requirements of sintered battery electrode plate provided by sichuan changhong power supply customer, this equipment designs and manufactures a battery electrode plate inspection machine. By using the CCD imaging principle, the electrode plates with powder, scratch, crack, sampling and other surface quality problems are selected and qualified products are collected into the material box.



2. Main equipment configuration

The serial number System composition The system configuration The number of
1 Rack system Rack components 2
The base plate 2
2 Feeding system Bin components 4
Jack assembly - motor 1
Brush component 1
The sensor 2
cylinder 1
3 Station 4 suction cup system Servo motor 1
Chuck components 4
CAM splitter 1
Position 4 rotary valve 1
Back to the table 1
4

CCD detection system



The CCD 2
stents 2
The light source 2
5

Conveyor belt system



Positioning fixture 12
Conveyor belt 1
coupling 1
Machined part 1 set of
Stepper motor 1
6 Blanking collection system Bin components 4
Jack assembly - motor 1
Brush component 1
The sensor 2
cylinder 1
7

Blanking manipulator system



Servo motor 2
coupling 2
Linear guide 4
Vacuum suction cups 8
Ball screw 2
cylinder 2
8 Electrical system PLC 1
extension 2
Touch screen 1
Electrical components One batch
The computer 1 set of
9 The software system Image processing software 1
Database storage system software 1



3. Equipment technical parameters

Machine specifications project ZCCF02A
vacuum ≤-88KPa
Total power (kw) AC220V,50HZ 3KW
Normal operating power (kw) AC220V,50HZ 2KW
The weight 1.5T
Device rotation rate 95%
Equipment pass rate 98%



4. Main equipment components



This equipment mainly USES CCD imaging principle to take photos on the surface of the pole, and compares it with the standard pole to judge whether it is qualified or not. When there is no pole, the material box can be automatically switched. The manipulator sucks up the pole sheet from the material box and turns it 90 degrees. CCD detects the bottom of the pole sheet and turns it 90 degrees. Qualified products continue to move on the conveyor belt to the above detection station, after the detection automatically sent to the discharging station, qualified products into the material box, unqualified products into the waste box.

4.1 frame system: 4080 square pass welding is adopted, which is firm and reliable, and the appearance of sheet metal seal can effectively prevent dust from entering.

4.2 feeding and discharging system: the universal material box of laminating machine and sorting machine is adopted, and the two stations are exchanged to realize continuous production. The material sensor is equipped at the bottom of the material box to automatically alarm and automatically switch the material box.

4.4. Rotary feeding manipulator system: precise CAM divider is used for 4 positions rotation, 1 position pole piece feeding, 2 positions CCD detection, 3 positions qualified products are put into the conveyor belt fixture, 4 positions unqualified products are put into the scrap box.





5. Environmental requirements



Please provide the following energy medium



5.1 the power supply



5.1.1 voltage AC220V± 10%



5.1.2 frequency 50 hz + 1 hz



5.2. Temperature: 5-35℃



Storage temperature: 0-40℃



5.3. Air source: 0.4-0.6mpa



5.4 humidity 30-80% but should not dew.



5.5 there is no corrosive gas, liquid or explosive gas on site



5.6 equipment color requirements: according to the color plate or color number provided by party a, the computer is white.



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
